ChemGrout CG-540 Compact Sprayer/Finishe

s-h alt

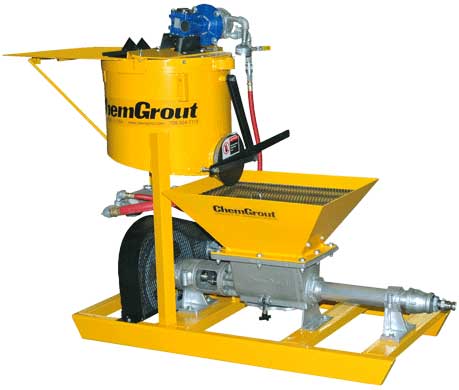

CG-540 Air Powered Shown

The ChemGrout model CG540/2L4/A is a skid mounted, air powered grout machine.  This system is designed to provide a continuous mixing and pumping operation.  This grout plant is designed for spraying cementitious grout materials.  This unit features a 22-gallon mixing tank, a 10-gallon holding hopper and an open-throat progressing cavity grout pump. The mix tank is designed for small batches of expensive grouting materials or mixes that have a short working time.  The mixing tank is equipped with a bag breaker and a variable speed, high-efficiency paddle that provides rapid mixing.  The tank outlet valve is a large slide gate that allows the thickest materials to fall easily into the pump hopper. The holding hopper is connected directly to the suction of the grout pump to provide a continuous pumping operation.  The standard grout pump is a Size 4, 2 Stage, positive displacement, rotor-stator type that will deliver 8 GPM, 174 PSI. The large open-throat inlet of the grout pump has an auger inside to aid in pumping thick mixes.  The rugged steel frame stands up to the toughest conditions on the job site. Operator controls are centrally located for efficient production.  The pumping components disassemble without any tools for a fast and efficient cleaning.  All components are easily accessible for operating, cleaning and maintenance.

Applications include: waterproofing, spraying, post tensioning, machine base, self leveling floor underlayments, resurfacing deteriorated concrete, seal coating concrete and finishing concrete

Model Number Description Dimensions (LxWxH) Weight (lbs)
CG540/2L4/A Skid Mounted Air Powered Grout Plant Requires 175 CFM, 100 PSI 59" x 30" x 51" 575
CG540/2L4/H Skid Mounted Hydraulic Powered Grout Plant  Requires 10 GPM, 1200 PSI 59" x 30" x 51" 560
SPECIFICATIONS
Model Progressive Cavity
Pump Model
Mixing Tank Holding Hopper Max. Output Max. Pressure
CG540/2L4 2 Stage, Size 4, Flange Throat 45 Gallon 12 Gallon 8 GPM 174 PSI
CG540/3L4 3 Stage, Size 4, Flange Throat
(Optional Pump)
45 Gallon 12 Gallon 8 GPM 261 PSI
There is no further information.
There are no listed accessories.
45-A
Mfg. item #: 45-A
CHE45-A
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,000.00

1520
45-ES
Mfg. item #: 45-ES
CHE45-ES
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,000.00

1520
45-ET
Mfg. item #: 45-ET
CHE45-ET
lease to own for as little as:$68 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,400.00

1520
45-EV
Mfg. item #: 45-EV
CHE45-EV
lease to own for as little as:$80 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,000.00

1520
45-H
Mfg. item #: 45-H
CHE45-H
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,000.00

1520
Freight policies for items on this page:
1: Call for freight quote on this item or we will confirm freight charges before shipping.
Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
