ChemGrout CG-550/030 Rugged High Pressur

s-h alt

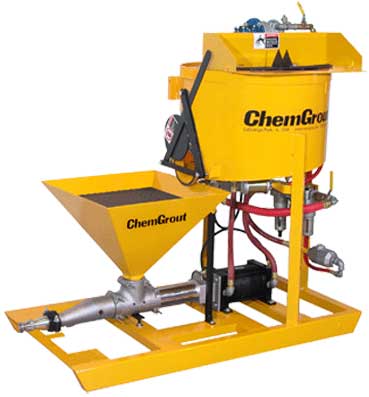

CG-550/030 Air High Pressure Model Shown

The ChemGrout CG-550/030 Rugged High Pressure series includes both skid and trailer mounted grout plants.  These units feature a 45-gallon (170 liters) mixing tank, a 15-gallon (57 liters) or 30-gallon (113 liters) holding hopper and the popular single-acting 3" piston grout pump.  Each mixing tank is equipped with baffles, bag breakers and a variable speed high-efficiency paddle mixer that provides rapid grout mixing.  The tank outlet is a large slidegate that allows viscous grouting materials to flow quickly into the removable holding hopper.  The large holding hopper is sized to provide continuous pumping, the mixer is charged while the hopper feeds the pump.  The grout pump is a 3" positive displacement, pulsating piston pump that disassembles with only a hammer for fast and thorough cleaning.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  The trailer mounted unit is road and job site ready equipped with leaf springs, lights and a working platform.

Applications Include:

Civil Engineering - soil nails, tiebacks, earth anchors, cable and rock bolts
Structural - foundation stabilization, foundation raising, soil compaction grouting
Construction - pavement undersealing , slabjacking and slab raising
Marine - underwater foundations, piers, breakers, shoreline foundations
Mining - tunnel lining, contact grouting, shaft waterproofing
Utilities - encasements, waterproofing, slope line grouting
Geotechnical - deep well casing, monitor wells, well sealing and abandonment

Model Number
Description
Dimensions (LxWxH) Weight (lbs)
CG550/030/A/HP Skid Mounted Air Powered Grout Plant  Requires 185 CFM, 100 PSI 64" x 31" x 56" 490
CG550/030/H/HP Skid Mounted Hydraulic Powered Grout Plant Requires 2 Supplies Each, each 10 & 6 GPM, 1800 PSI 64" x 31" x 56" 450
CG550/030/EHT/HP Skid Mounted Electric/Hydraulic Grout Plant  Requires 3 phase power, several voltage options available 78" x 31" x 56" 955
CG550/030/GHES/HP Skid Mounted Self-Contained Gas/Hydraulic Grout Plant  20 HP Gasoline Engine with Electric Start 78" x 31" x 56" 955
CG550/030/DHES/HP Skid Mounted Self-Contained Diesel/Hydraulic Grout Plant  20 HP Diesel Engine with Electric Start 78" x 31" x 56" 1050
CG555/030/GHES/HP Trailer Mounted Self-Contained Gas/Hydraulic Grout Plant  20 HP Gasoline/Hydraulic
Engine with Electric Start
110" x 68" x 70" 1400
CG555/030/DHES/HP Trailer Mounted Self-Contained Diesel/Hydraulic Grout Plant  20 HP Diesel Engine with Electric Start 110" x 68" x 70" 1495
s-h alt s-h alt s-h alt s-h alt s-h alt
CG550/030/A/HP CG550/030/H/HP CG550/030/GHES/HP CG550/030/DHES/HP CG555/030/GHES/HP
SPECIFICATIONS
Pump Power Mixing Tank  Holding Hopper Max. Output Max. Pressure
3" Piston Pump Air 45 Gallon 15 or 30 Gallon 16 GPM (60 LPM) 700 PSI (48 Bar)
3" Piston Pump Hydraulic 45 Gallon 15 or 30 Gallon 12 GPM (45 LPM) 700 PSI (48 Ba
There is no further information.
There are no listed accessories.
RUGGEDHP-H
Mfg. item #: RUGGEDHP-H
CHERUGGEDHP-H
lease to own for as little as:$182 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,100.00

1661
RUGGEDHP-A
Mfg. item #: RUGGEDHP-A
CHERUGGEDHP-A
lease to own for as little as:$190 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,500.00

1661
45-A
Mfg. item #: 45-A
CHE45-A
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,000.00

1661
45-ES
Mfg. item #: 45-ES
CHE45-ES
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,000.00

1661
45-ET
Mfg. item #: 45-ET
CHE45-ET
lease to own for as little as:$68 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,400.00

1661
45-EV
Mfg. item #: 45-EV
CHE45-EV
lease to own for as little as:$80 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$4,000.00

1661
45-H
Mfg. item #: 45-H
CHE45-H
lease to own for as little as:$60 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$3,000.00

1661
