ChemGrout CG-600/8CF Colloidal Series

s-h alt

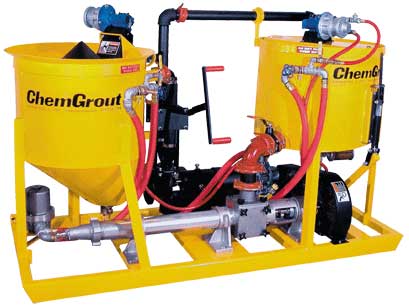

CG-600/8CF Air Powered Shown

The ChemGrout CG-600/8CF colloidal grout plant is a compact, medium duty, colloidal grout plant for applications that require colloidal mixing like post-tensioning, underground and heavy construction jobs.  The colloidal mixer easily mixes slurries of cement, fly ash, bentonite, microfine cements and other fine grained materials.  This compact grout plant is designed to provide a simultaneous mixing and pumping operation.  This unit features an 8 cubic foot mix tank with the ChemGrout 2X3X6 high shear colloidal mix pump, a 9 cubic foot agitated storage tank and a 20 GPM closed inlet grout pump.  The colloidal mixer is equipped with a high shear, diffuser-type pump rotating at speeds up to 2000 RPM that disperses the dry material down to its finest particle size to achieve complete particle wetness.  The mixing tank is also equipped with a powered bridge breaker to assist induction of dry materials into the colloidal mixer.  After mixing, the material is transferred to the variable speed, high efficiency, agitated holding tank which maintains uniform consistency in preparation for pumping.  The grout pump is available with a closed inlet (optional open throat available) size 6, 3 stage progressing cavity, positive displacement, rotor-stator pump.  The open throat grout pump allows for a final quality control check and convenient sampling prior to pumping.  The closed inlet pump prevents air entrainment in the grout mix and meets the specification for PT grouting.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning and maintenance.

Applications include: Post tensioning, tunnels, shafts, mining, dam foundations, permeation grouting, soil & rock grouting, slurry walls, microfine cements, waterproofing, penetration grouting, soil anchors, and rock bolts

There are no further details.
s-h alt s-h alt s-h alt s-h alt
CG600/8CF/3L6/A CG600/8CF/3L6/H CGPU24/DH CGPU20/EH
SPECIFICATIONS
Colloidal Mixing Tank Agitated Storage Tank Maximum Output Maximum Pressure
8  CF (60 Gallon)
9 CF (75 Gallon) 20 GPM (76 LPM) 261 PSI (18 BAR)

Model Number
Description
Dimensions
Weight
CG600/8CF/3L6/A Skid Mounted Pneumatic Powered Colloidal Grout Plant  Closed Inlet - 3 Stage, Size 6 Progressing Cavity Pump  Requires 250 CFM, 100 PSI 88" L X 34" W X 59" H 1,190 lbs
CG600/8CF/3L6/H Skid Mounted Hydralic Powered Colloidal Grout Plant  Closed Inlet - 3 Stage, Size 6 Progressing Cavity Pump  Requires dual circuit - 9 & 12 GPM, 2000 PSI each 88" L X 34" W X 59" H 1,150 lbs
CGPU24/DH Power Pack Diesel/Hydraulic  Self-contained - 24 HP Diesel Engine
74" L X 34" W X 37" H
1,750 lbs
CGPU20/EH Power Pack Electric/Hydraulic  Requires 3 phase power, several voltage options available Varies by Voltage Varies
There is no further information.
There are no listed accessories.
