ChemGrout CG-600 High Pressure Colloidal

s-h alt

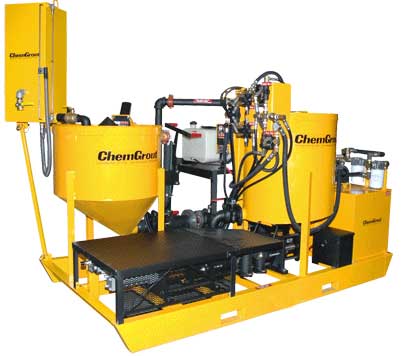

CG-600HP Diesel/Hydraulic Powered Shown

The ChemGrout CG-600 High Pressure series are skid mounted, colloidal grout plants.  This unit is available with a 13 cubic foot high shear colloidal mixer, an agitated storage tank and a high pressure plunger grout pump.  The colloidal mixer is equipped with a high shear centrifugal diffuser-type pump that disperses the cementitous material down to its finest particle size to achieve complete particle wetness.  The mixing tank is equipped with a bridge breaker to break apart the material before entering the colloidal mixer.  The agitated storage tank is available in 13 CF or 17 CF and equipped with a variable speed high-efficiency paddle mixer that maintains a thoroughly mixed grout while waiting to be pumped.  The grout pump is connected directly to the agitated storage tank to provide a continuous pumping operation.  The grout pump is a double acting, positive displacement plunger style that is available in three different sizes, 3x8, 2x8 and 1x8, offering discharge pressures of 1,000 psi, 1,600 psi and 2,000 psi respectively.  The double-acting plunger pump is designed so that conversion between the pressure outputs is easy and cost effective.  Operator controls are centrally located for efficient production.  The pump has patented fasteners that dramatically reduce disassembly time for cleaning and maintenance.

Applications include:

Civil Engineering - soil nails, tiebacks, earth anchors, high pressure rock grouting
Structural - building restoration, foundation stabilization, foundation raising, soil compaction grouting
Construction - post tensioning, slab undersealing , slab jacking and slab raising
Marine - underwater foundations, piers, breakers, shoreline foundations
Mining - high pressure rock grouting, tunnel lining, contact grouting, waterproofing, cable and rock bolts
Utilities - encasements, waterproofing, dam foundations
Geotechnical - deep well casing, monitor wells, well sealing and abandonment

s-h alt s-h alt
CG600/3X8/EHT CG600/3X8/DH
SPECIFICATIONS
Pump Size Max. Output Max. Pressure
1" X  8" 10 GPM  (38 LPM) 2,000 PSI  (138 BAR)
2" X  8" 15 GPM  (58 LPM) 1,600 PSI  (110 BAR)
3" X  8"
20 GPM  (77 LPM) 1,000 PSI   (69 BAR)

Model Number
Description
Dimensions
Weight
CG600/3X8/A Skid Mounted Air Powered Grout Plant  Requires 375 CFM, 100 PSI
98" L X 58" W X 66" H
2100 lbs
CG600/3X8/H Skid Mounted Hydraulic Grout Plant Requires 2 Supplies 12 & 15 GPM,  2000 PSI each 96" L X 54" W X 60" H 1800 lbs
CG600/3X8/EHT Skid Mounted Electric/Hydraulic Grout Plant  Requires 3 Phase Power, several voltage option available
96" L X 60" W X 60" H
2600 lbs
CG600/3X8/DH Skid Mounted Diesel/Hydraulic Grout Plant  Self-contained Unit 108" L X 60" W X 60" H 3150 lbs
