ChemGrout CG-620 Colloidal Mixer Series

s-h alt

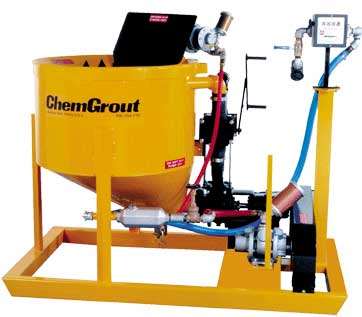

CG-620/A Air Shown

The ChemGrout CG-620 Colloidal Mixer is a skid mounted system.  The colloidal mixer is equipped with a high speed centrifugal diffuser-type pump that disperses the cementitous material down to its smallest size to achieve complete particle wetting (or wetness) and a powered bridge breaker to precondition material before entering the colloidal mixing pump.  The rugged steel frame stands up to the toughest conditions on the job site.  Operator controls are centrally located for efficient production.  All components are easily accessible for operating, cleaning and maintenance.

The ChemGrout CG-620/630 Colloidal Mixers are designed to be add on units to complement equipment that is already owned by the user.

Applications include: post tensioning, tunnels, shafts and mining

There are no further details.
s-h alt s-h alt
CG620/A CG620/E
SPECIFICATIONS
Mixing Tank / Agitator Mixing Pump
8 Cubic Foot (60 Gallons) 2 x 3 x 6 High Shear Mix Pump
13 Cubic Foot (97 Gallons) 2 x 3 x 6 High Shear Mix Pump
17 Cubic Foot (128 Gallons)
2 x 3 x 12 High Shear Mix Pump

Model Number
Description
Dimensions (LxWxH)
Weight
CG620/8CF/A 8CF Colloidal Grout Mixer 185 CFM, 100 PSI of compressed air 56-63" x 36" x 54" 600-810 lbs
CG620/8CF/H* 8CF Colloidal Grout Mixer Requires 12 GPM, 1500 PSI of hydraulic oil Varies by power option 600-810 lbs
CG620/8CF/E 8CF Colloidal Grout Mixer Requires 3 phase power, several voltage options available Varies by power option 600-810 lbs
CG620/13CF/A 13CF Colloidal Grout Mixer Requires 185 CFM, 100 PSI of compressed air 60-68" x 40" x 58" 850-1,000 lbs
CG620/13CF/H* 13CF Colloidal Grout Mixer Requires 12 GPM, 1500 PSI of hydraulic oil Varies by power option 850-1,000 lbs
CG620/13CF/E 13CF Colloidal Grout Mixer Requires 3 Phase Power, several voltage options available Varies by power option 850-1,000 lbs
CG620/17CF/H* 17 CF Colloidal Powered Grout Mixer Requires 12 GPM, 2000 PSI of hydraulic oil 66-73" x 44" x 64" 1,000-1,300 lbs
CG620/17CF/E 17 CF Colloidal Powered Grout Mixer Requires 3 Phase Power, several voltage options available Varies by power option 1,000-1,300 lbs
* Power pack options available:  Gas/Hyd, Electric/Hyd, Diesel/Hyd
There is no further information.
There are no listed accessories.
