ChemGrout CG-630 Colloidal Mixer Series

s-h alt

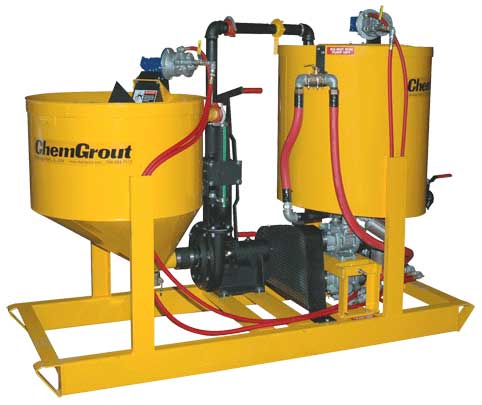

CG-630/A Air Shown

The ChemGrout model CG-630 Colloidal Mixer is a skid mounted, colloidal grout unit.  This system is designed to provide a continuous mixing operation.  This unit features a 13 cubic foot or 17 cubic foot colloidal mixer and a 13 or 17 cubic foot agitating holding tank.  The colloidal mixer is equipped with a high shear centrifugal mixing pump that breaks the material down to its finest particle size to achieve complete particle wetness.  The mixing tank is also equipped with a bridge breaker to break apart the material before entering the colloidal mixer.  The agitating holding tank has a vertical shaft with horizontal blades that are in constant contact with the material to maintain a thoroughly mixed grout.  There is no grout pump on this unit.  All components are easily accessible for operating, cleaning and maintenance.

Applications include: post tensioning, tunnels, shafts and mining

There are no further details.
s-h alt s-h alt s-h alt
CG630/A CG630/E CG630/H
SPECIFICATIONS
Mixing Tank / Agitator Mixing Pump
8 Cubic Foot (60 Gallons) 2 x 3 x 6 High Shear Mix Pump
13 Cubic Foot (97 Gallons) 2 x 3 x 6 High Shear Mix Pump
17 Cubic Foot (128 Gallons)
2 x 3 x 12 High Shear Mix Pump

Model Number
Description
Dimensions (LxWxH)
Weight
CG630/8CF/A 8CF Colloidal Grout Mixer With 13CF Agitator  Requires 185 CFM, 100 PSI of compressed air 72" x 36" x 63" 950-1,100 lbs
CG630/8CF/H* 8CF Colloidal Grout Mixer With 13CF Agitator Requires 12 GPM, 1500 PSI of hydraulic oil Varies by power option 950-1,100 lbs
CG630/8CF/E 8CF Colloidal Grout Mixer With 13CF Agitator Requires 3 Phase Power (several voltage options) Varies by power option 950-1,100 lbs
CG630/13CF/A 13CF Colloidal Grout Mixer With 13CF Agitator Requires 185 CFM, 100 PSI of compressed air 90" x 36" x 63" 950-1,100 lbs
CG630/13CF/H* 13CF Colloidal Grout Mixer With 13CF Agitator Requires 12 GPM, 1800 PSI of hydraulic oil Varies by power option 950-1,100 lbs
CG630/13CF/E 13CF Colloidal Grout Mixer With 13CF Agitator Requires 3 Phase Power (several voltage options) Varies by power option 950-1,100 lbs
CG630/13CF/A  13CF Colloidal Grout Mixer With 17CF Agitator Requires 250 CFM, 100 PSI of compressed air 96" x 48" x 68" 1,100-1,250 lbs
CG630/13CF/H*  13CF Colloidal Grout Mixer With 17CF Agitator Requires 12 GPM, 2000 PSI of hydraulic oil Varies by power option 1,100-1,250 lbs
CG630/13CF/E 13CF Colloidal Grout Mixer With 17CF Agitator Requires 3 Phase Power (several voltage options) Varies by power option 1,100-1,250 lbs
CG630/17CF/H*  17CF Colloidal Grout Mixer With 17CF Agitator Requires 16 GPM, 2000 PSI of hydraulic oil 108" x 48" x 68" 1,250-1,400 lbs
CG630/17CF/E 17CF Colloidal Grout Mixer With 17CF Agitator Requires 3 Phase Power (several voltage options) Varies by power option 1,250-1,400 lbs
* Power pack options available:  Gas/Hyd, Electric/Hyd, Diesel/Hyd
There is no further information.
There are no listed accessories.
