ChemGrout CG-C4 Progressive Cavity Pumps

Chem Grout Logo
"Mfg. Grout Pumps, Grout Mixers, Largest Selection of Grouting Equipment in the World"

CG-C4 Progressive Cavity Grout Pumps

s-h alt

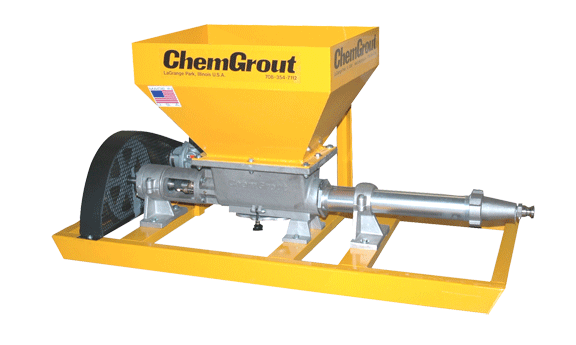

CG2C4/A

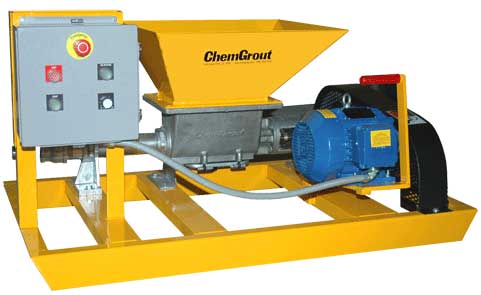

Model 2C4-E  -  Electric (220V / 1 Phase) - Pump Model 2C4-Air  -  Grout Air Pump

Not certain what you need PLEASE feel free to call us and we will have the ChemGrout
engineers help get you into the right pump at the right price. Call 1-800-458-3687
or email sales@southern-tool.com

Down Load, Print and Send it to us !
ChemGrout Sales Inquiry Form

CG-C4 Progressive Cavity Grout Pumps

The ChemGrout CG2C4 is a 2 Stage, Size 4, Open-Throat Progressive Cavity Grout Pump series includes both skid and trailer mounted grouting pumps.  The progressive cavity pump is a perfect solution when pumping viscous, abrasive or solid laden materials.  These units are designed to pump neat cement, bentonite, cement/bentonite, cement/sand, non-shrink, self leveling and most packaged grout mixes.  These progressive cavity grout pump systems feature various sized holding hoppers, output volumes from 1 GPM (3.8 LPM) to 12 GPM (45 LPM) and output pressures from 174 PSI (12 BAR) up to 522 PSI (36 BAR).  These grout pumps are positive displacement, progressing cavity, rotor-stator type pumps.  All these grout pumps are designed with variable speed controls to give you complete control over the grout flow.  The operator controls are centrally located for efficient, safe production.  All components are easily accessible for operating, cleaning, and maintenance.  The trailer mounted units are road and job site ready equipped with leaf springs, lights and a working platform



Applications include: soil & rock, void filling, waterproofing, anchor, cable, rock bolts, encasements, marine/underwater, well casing, abondon shafts/holes, spraying topcoats, machine base, underlayments, slabjacking, slab raising & bridge rehabilitation, cable stays, post tensioning, slurry cutoff  walls, foundation repair, anchors, roadway repair, dowel rod grouting,  concrete repair, masonry repair, floor restoration, slab undersealing, mudjacking, soil stabilization, slurry trench, pressure grouting, window grouting, building construction, tiebacks, self-leveling underlayment, floor topping, and machine bases

SPECIFICATIONS
Pump Model Hopper Volume Maximum Output Maximum Pressure
CG-2C4 Grout Pump
10-40 Gallons (38-151 Liters)
12 GPM (45 LPM)
174 PSI (12.0 BAR)
CG-3C4 Grout Pump
10-40 Gallons (38-151 Liters)
12 GPM (45 LPM)
261 PSI (18.0 BAR)
CG-6C3 Grout Pump
10-40 Gallons (38-151 Liters)
8 GPM (30 LPM)
522 PSI (36.0 BAR)
Power Options = Air, Hydraulic, Electric/Hydraulic, Gas/Hydraulic or Diesel/Hydraulic



CG-C4 Progressive Cavity Grout Pumps
 Model Number Description - 2, 3 or 6 Stage Pump Dims & Weight
CG-C4/H  Skid Mounted Hydraulic Powered Grout Pump

Approximately
72" L x 31" W x 24"H
Varies by power option

Approximately
420 lbs - 1000 lbs
Varies by power option

CG-C4/A   Skid Mounted Air Grout Pump
CG-C4/GHES  Skid Mounted Gas/Hydraulic Grout Pump
CG-C4/E  Skid Mounted Electric Grout Pump
CG-C4/DH Skid Mounted Diesel/Hydraulic Grout Pump



CG-C4 Progressive Cavity Grout Pumps
CG2C4-HYD Model 2C4-Hyd  -  Grout Hydraulic Pump (Only) - 8-10 GPM, 174 PSI
CG2C4-AIR Model 2C4-Air  -  Grout Air Pump (Only) - 8-10 GPM, 174 PSI
CG2C4-GHES Model 2C4-GHES  -  Honda  Gas Hydraulic / Elec Start - Pump (Only) - 8-10 GPM, 174 PSI
CG2C4-E Model 2C4-E  -  Electric (220V / 1 Phase) - Pump Only  - 8-10 GPM, 174 PSI
PG140K1 Pressure Gauge 140K (1")
GH112 Grout Hose 1" x 12 feet
GH125 Grout Hose 1" x 25 feet
GH150 Grout Hose 1" x 50 feet
DP1 Drive Packer 1" Hose Fitting
P1M Packers 1" - Mechanical 1 1/2" to 2 1/2" dia.
Pressure Guage Grout Hose Drive Packer Mechanical Surface Packer



2C4-Hyd
Mfg. item #: 2C4-Hyd
CHECG2C4-HYD
lease to own for as little as:$130 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$6,500.00

1268
2C4-Air
Mfg. item #: 2C4-Air
CHECG2C4-AIR
lease to own for as little as:$138 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$6,900.00

1268
2C4-GHES
Mfg. item #: 2C4-GHES
CHECG2C4-GHES
lease to own for as little as:$208 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$10,400.00

1268
2C4-E
Mfg. item #: 2C4-E
CHECG2C4-E
lease to own for as little as:$170 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$8,500.00

1268
PG140K1
Mfg. item #: PG140K1
CHEPG140K1
FREE shipping when ordered with a machine from this manufacturer.20
$350.00

1268
GH112
Mfg. item #: GH112
CHEGH112
FREE shipping when ordered with a machine from this manufacturer.20
$200.00

1268
GH125
Mfg. item #: GH125
CHEGH125
FREE shipping when ordered with a machine from this manufacturer.20
$290.00

1268
GH150
Mfg. item #: GH150
CHEGH150
FREE shipping when ordered with a machine from this manufacturer.20
$450.00

1268
DP1
Mfg. item #: DP1
CHEDP1
FREE shipping when ordered with a machine from this manufacturer.20
$170.00

1268
P1M
Mfg. item #: P1M
CHEP1M
FREE shipping when ordered with a machine from this manufacturer.20
$170.00

1268
