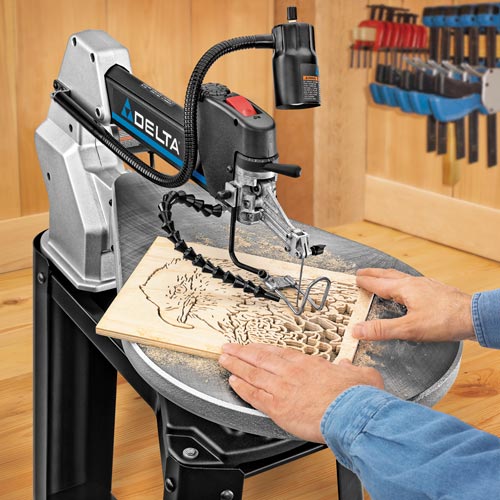

Delta 20 inch Variable Speed Scroll Saw

 20" Variable Speed Scroll Saw s-h alt

Click image to enlarge

Dual Parallel-Link Arm increases accuracy by keeping the blade perpendicular to the table and reducing vibration and noise.

  • Dual Parallel-Link Arm increases accuracy by keeping the blade perpendicular to the table and reducing vibration and noise.

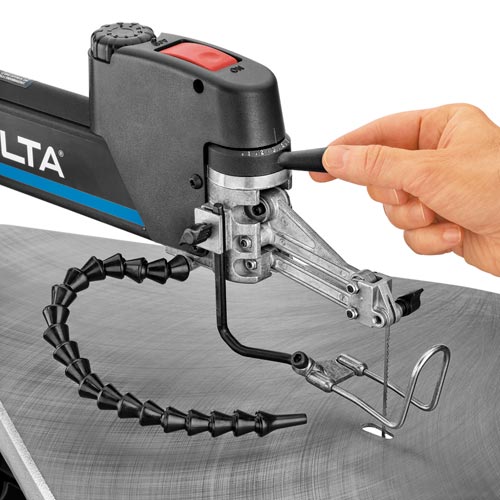

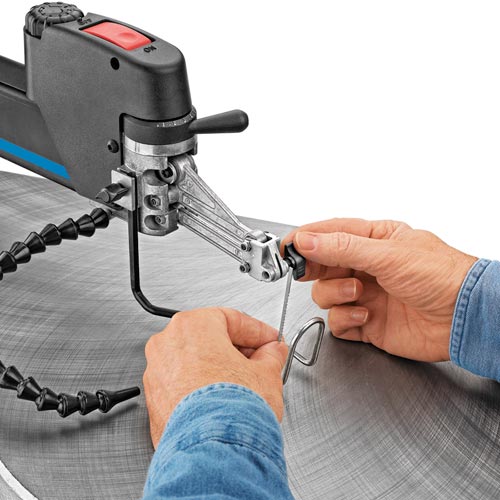

  • Tool Free Blade Clamp allows the blade to be changed in seconds.
  • Up-Front Controls give the user convenient access to on/off swithch, speed control, and blade tensioning lever.
  • Electronic Variable Speed can be adjusted from 400-1,750 spm for a wide array of cutting applications.

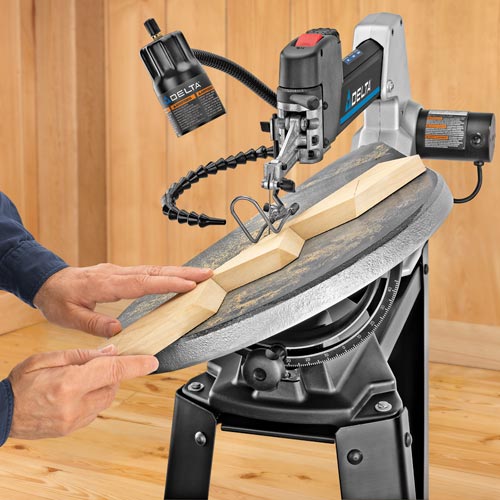

  • Oversized Woodworker's Table provides excellent material support and bevels 0-45 degrees left and right.

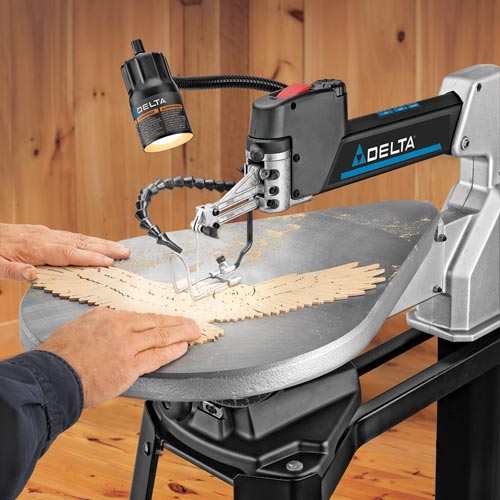

  • Flexible Work Light illuminates the work surface for better visibility.

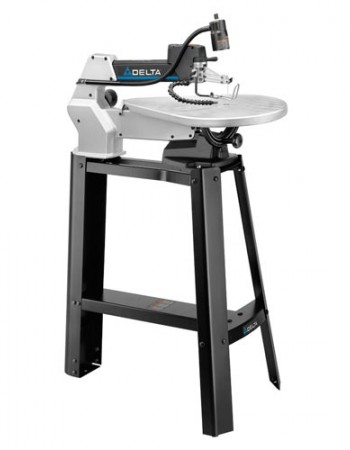

  • Heavy-Duty All-Metal Stand provides a solid workstation for the saw and keeps work benches clear for other uses.
Specifications
Model 40-690
Motor Control: On/Off
Speed: 400-1,750 CSPM
Capacity: 20 inch
Stroke Length: 3/4 inch
Table Size: 16 x 24 inch
Table Tilt: 0-45 degree
Height: 48 inch
Width: 20 inch
Length: 30 inch
Weight: 83 lbs

s-h alt

DELTA will repair or replace, at it's expense, and its option, any new DELTA machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a DELTA factory service center.

No accessories listed

40-690
20 IN. VARIABLE SPEED SCROLL SAW
Mfg. item #: 40-690
PL-40-690
$60 for Delta orders between $300 and $649. Lower rates may apply to larger orders. No extra charge for residential deliveries. $30 liftgate fee, if required.1013
$618.75
