GMC HS-0410E, HS-0425E, HS-0808E Heavy D

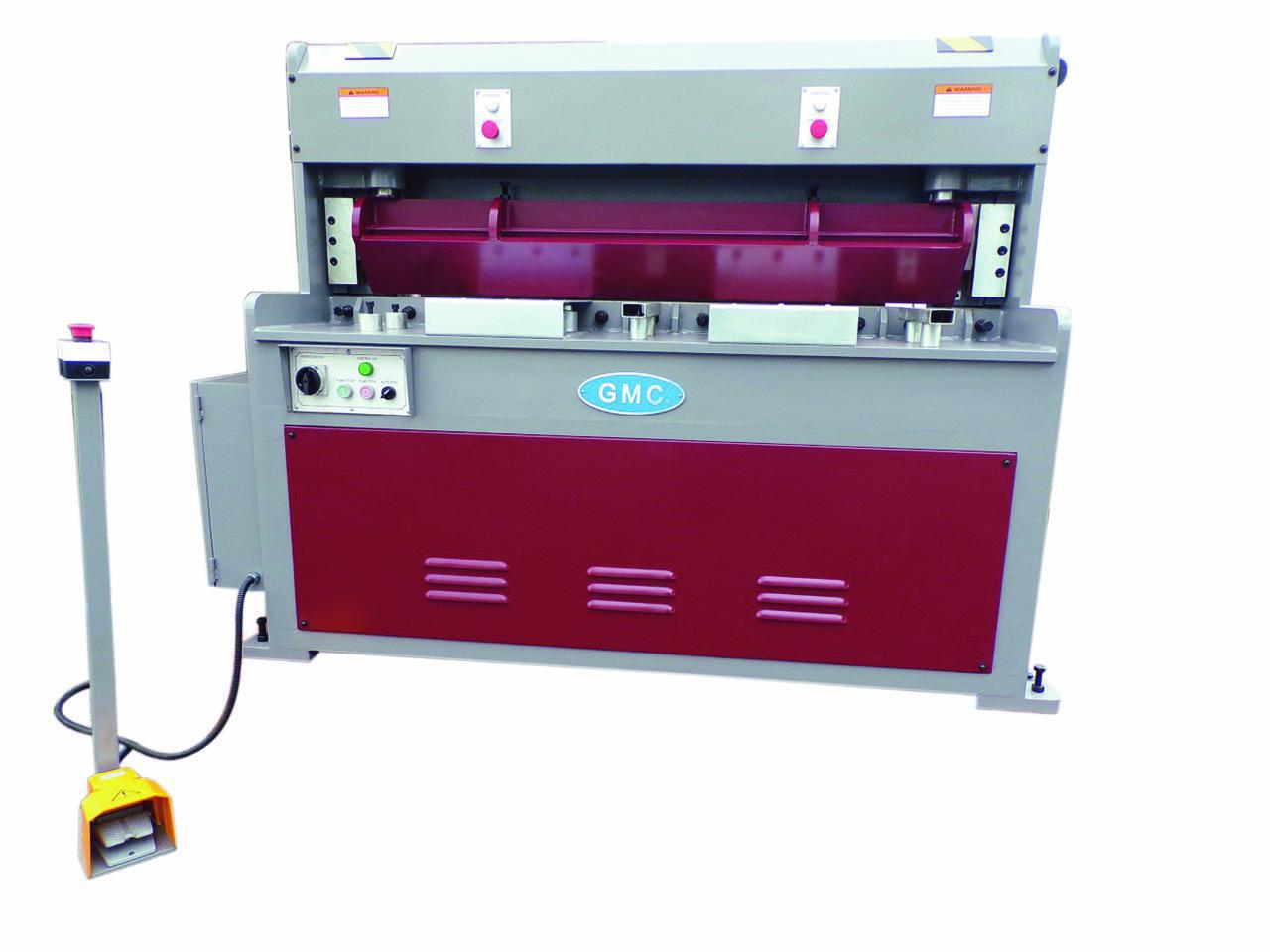

GMC HEAVY DUTY HYDRAULIC SHEARS

s-h alt s-h alt s-h alt s-h alt
German SIKO Power Back Gauge Digital & Micro-adjustment Power Back Gauge Control Central Control Panel Heavy Duty Power Back Gauge

Standard Features:

  • ISO 9001 certified
  • 32 inch German SIKO Front Operated power back gauge w/ micro adjustment 0.004 inch/metric digital display
  • Automatic Qucik change blade gap adjustment (BGA), no lever required
  • CE standard OMERO electric control system
  • Meet OSHA safety standard code
  • Shadow line for accurate straight cutting
  • Adjustable cutting length and stroke
  • Ball transfer plated on worktable for easy loading workpiece
  • Well balanced and sturdy all steel machine frame
  • German made Hydraulic logic system centrally located and quiet
  • Hydraulic hold-downs with anti-mar neoprene
  • Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade
  • Full length viewable safety finger guard to protect operator from cutting hazard
  • Removable safety foot pedal, automatically blade raise up on removal of foot from the pedal
  • Hydraulic, electrical overload protection
  • Compact operator control panel
  • All motors are overload protected and low voltage control system
  • Jog or continuous auto cycle cutting operation modes
  • One year industrial warranty for parts

Standard Equipment for GMC Heavy Duty Hydrauilic Shears:

  • 32 inch German SIKO Front Operated power back gauge with micro adjustment, accuracy 0.004 inch/metric digital display
  • 1 each 60 inch squaring arm with inlaid inch/metric dual scale
  • Automatic quick change blade gap adjustment (BGA)
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set
  • 2 each 14 inch front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box and leveling pads

Specifications:

Model

HS-0410E HS-0410M HS-0412M  HS-0425E HS-0808E
Cutting Capacity

Mild
Steel

4' x 10 Ga. 4' x 10 Ga   4' x 12 Ga 4' x 1/4" 8' x 8 Ga.

Stainless Steel

4' x 10 Ga. 4' x 14 Ga.   4' x 16 Ga   4' x 10 Ga. 8' x 12 Ga.
Blade length 4'3" 8'2"
Strokes per minute 12-20 7-12
Throat depth 18"
Worktable height 34 1/2"
Front support arm 24"
Power back gauge 32" 32"
Blade rake angle 2 degree
Oil tank cap. 15 Gal. 20 Gal.
Main motor 7.5 HP 10 HP
Power back gauge motor 3/4 HP n/a 3/4 HP
Net weight 4,380 lbs 4,080 lbs 3,780 lbs 5,380 lbs 8,350 lbs
Machine dimensions (inch) 73 x 86 x 63" 73 x 78 x 63" 73 x 76 x 63" 74 x 86 x 63" 126 x 87 x 63"
There is no further information.
There are no listed accessories.
HS-0410E
GMC HEAVY DUTY HYDRAULIC SHEARS -4FT X 10GA, 7.5 HP WITH 36 INCH SIKO POWER BACK GAUGE (NON STOCK ITEM - 12 WEEKS DELIVERY)
Mfg. item #: HS-0410E
GMCHS-0410E
lease to own for as little as:$297 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$14,850.00

563
HS-0410M
DISCONTINUED CALL 800-458-3687 FOR MORE INFORMATION OR AN EQUITANT ITEM
Mfg. item #: HS-0410M
GMCHS-0410M
Call for Price

86
HS-0412M
4 X 12 GAGUE HYDROLIC SHEAR
Mfg. item #: HS-0412M
GMCHS-0412M
lease to own for as little as:$160 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,000.00

4781
HS-0425E
GMC HEAVY DUTY HYDRAULIC SHEARS6 X 1/4, 7-1/2 HP, 220V, 3 PH, WITH 24 SIKO POWER BACK GAUGETAIWAN
CALL FOR YOUR BROTHER-IN-LAW PRICE ON THIS GMC ITEM
Mfg. item #: HS-0425E
GMCHS-0425E
lease to own for as little as:$341 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$17,850.00

29
HS-0808E
GMC HEAVY DUTY HYDRAULIC SHEARS8X8GA, 10 HP 220V 3PH WITH 36 SIKO POWER BACK GAUGE
CALL FOR YOUR BROTHER-IN-LAW PRICE ON THIS GMC ITEM
Mfg. item #: HS-0808E
GMCHS-0808E
lease to own for as little as:$436 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$22,850.00

29
