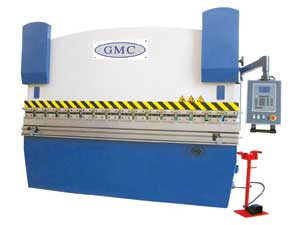

GMC 88 Ton Hydraulic Press Brake

Standard Features for GMC Hydraulic Press Brakes

• ISO 9001 certified

• Meet OSHA safety standard

• All steel construction for maximum rigidity

• Hydraulic logic system centrally located and quiet

• Powered bending angle setting advice ( Ram Stroke ) with digital readout

• OSHA required Laser Curtain Safety  protection system

• Safety type foot pedal with handle and E-stop switch

• Safety 24V low voltage & overload protection

• One year industrial warranty for parts

Standard Equipment for GMC Hydraulic Press Brakes

• 24"Front operated power back gauge with (2) axis Digital readout Resolution 0.001" and with micro adjustment handwheel

• Laser curtain safety protection

• Powered bending angle setting device with micro adjustment

• (2) large Safety protection guards on both sides of machine

• Upper forming punch has adjustable device for angle compensation

• 2 each 24" front support arms

• Gooseneck upper forming punch and lower die set with multiple Vees

• Removable safety foot pedal to meet OSHA safety standard

• Tool box and leveling pads

SPECIFICATIONS
Model No.	GMC HPB-8808	GMC HPB-8810
Maximum pressure	88 Tons	88 Tons
Bending length capacity	8'	10'
Distance between uprights (housing)	78"	106"
Ram Stroke travel	5"	5"
Table width	6-1/2"	6-1/2"
Distance between table and ram	15"	15"
Throat Depth	12"	12"
Approach speed, inch / second	3"	3"
Working speed , inch / second	0.33"	0.33"
Return speed , inch / second	3"	3"
Main motor	7-1/2 HP	7-1/2 HP
Motor for power bending angle device	3/4 HP	3/4 HP
Hydraulic oil tank capacity	50 Gal.	70 Gal.
Machine weight , LBS	10650 LBS	12650 LBS
Machine size, L x W x H	102" x 55" x 88"	130" x 55" x 88"
