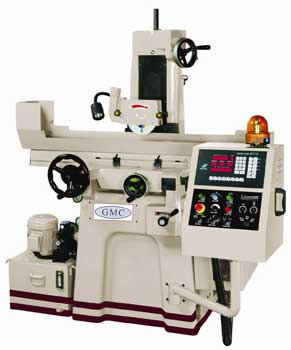

GMC GMSG-820AH & GMSG-820AHD
Standard Features:
- ISO 9001
- Precision roller ball ways
- Heavy Duty "Meehanite" Casting
- Roller tracks are Turcite-B coated for long life
- "Turcite B" Coating on ways
- Double Vee on cross slide
- Model # GMSG-820AHD has automatic down feed
- Complete coolant system included
- Full splash guards
- Over 680 pounds table load capacity
- Hardened & precision ground & hand scraped ways
- Dynamically balanced spindle run-out within 0.00008"
- Automatic down feed is driven on V-type guideway
- Safety 24 low voltage electric controls & overload protection
- Automatic continuous lubrication for all ways & leadscrews
- Adjustable longitudinal table stops and cross feed lock
- (4) preloaded class 7 (P4) high precision angular contact spindle bearings for high precision grinding
- Power source: 208V / 220V / 230V, 3-phase (option: 440V/460V, 3-phase)
- One year industrial warranty for parts
Standard Equipment:
- Complete coolant system with splash guards
- Halogen work light installed
- (1) Grinding wheel with flange 8" dia. x 1/2" thick x 1 1/4" bore
- Grinding wheel extractor
- Diamond wheel dresser with base
- Balance stand & wheel wrench & balance arbor
- Automatic lubrication system
- Tool box with tools & leveling pads
- Operation and parts manual
|
SPECIFICATIONS
|
|
Model
|
GMSG-820AH
|
GMSG-820AHD
|
|
Table
|
Size ( chuck size )
|
8" x 20"
|
|
Load Capacity
|
680 LBS
|
|
T-slot size
|
9/16"
|
|
Grinding capacity, W x L
|
8-1/2" x 20"
|
|
Max. longitudinal manual table travel
|
20"
|
|
Hydraulic automatic longitudinal table travel
|
20"
|
|
Automatic longitudinal travel speeds
|
3' to 82' / min.
|
|
Max. cross manual table travel
|
9"
|
|
Cross rapid traverse
|
48" / min.
|
|
Automatic cross table increment feeds
|
0.006" - 0.30"
|
|
Cross handwheel graduation
|
0.001"
|
|
Cross handwheel per revolution
|
0.2"
|
|
Vertical automatic down feed-rapid traverse
|
---
|
9" / min.
|
|
Automatic vertical down feed rate, variable
|
---
|
0.00004" - 0.0004"
|
|
Vertical downfeed handwheel graduation
|
0.0002"
|
|
Vertical downfeed handwheel per revolution
|
0.05"
|
|
Max. spindle centerline to table surface
|
16-1/4"
|
|
Spindle speed
|
3,600 rpm
|
|
Spindle motor
|
3 HP, 3-phase 230V
|
|
Hydraulic pump motor
|
1 HP, 3-phase 230V
|
|
Cross feed motor
|
1/2 HP, 3-pahse 230V
|
|
Automatic down feed motor
|
1/4 HP, 3-ph, 230V
|
|
Coolant pump
|
1/8 HP, 3-ph, 230V
|
|
Coolant tank capacity
|
8 Gal.
|
|
Wheel size, Diameter x Thickness x Center Bore
|
8" x 3/4" x 1-1/4"
|
|
Machine weight, LBS
|
2,870 LBS
|
2,960 LBS
|
|
Machine dimensions: L x W x H
|
66 x 50 x 78"
|
78 x 56 x 83"
|
There is no further information.
Optional Equipment
- 8"x20" standard permanent magnetic chuck # SMC-820
- 8"x20" fine pole permanent magnetic chuck # FPMC-820
- Dust collector system for GMSG-820AHD # DC-820
- 2 axis NEWALL #C 80 for GMSG-820, USA, installed # NW-820
- Parallel dresser # PDR
- Variable spindle speeds from 50 rpm to 3,600 rpm # VARI-SP
- Rotary phase converter, USA, 7HP # R7-820
- Coolant system with paper filter & magnetic separator
