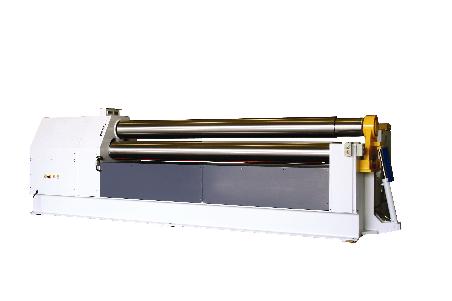

GMC HBR Double Pinch Hydraulic Plate Ben
Standard Features:
-
ISO 9001 certified
-
Made in Taiwan
-
Hydraulic York up/down for off load workpiece
-
(2) each LED indicators for bending and pinch rolls position
-
Safety line all around the machine for emergency stop
-
Heavy Duty all steel welded machine construction
-
German Hydraulic logic system centrally located and quiet
-
Bending and pinch rolls are hydraulic powered up/down and tilting
-
Planetary reduction gear and pump
-
All three rolls are made of high grade alloy steel
-
All rolls run forward and reverse
-
Safety type foot pedal control
-
Overload protection and disconnect switch
-
Power source 208V/220V, or 460 V , 3 phase
-
One year industrial warranty for parts
Standard Equipment:
-
(2) each LED indicator for bending roll position and pinch rolls position
-
Safety line all around the machine for emergency stop
-
Removable safety foot pedal
-
Tool box and leveling pads
|
SPECIFICATIONS
|
|
Model
|
HBR-0820-DP
|
HBR-0825-DP
|
HBR-08516-DP
|
HBR-08375-DP
|
HBR-0850-DP
|
|
Roll capacity
|
Mild steel
|
8 ft x 0.20 in
|
8 ft x 1/4 in
|
8 ft x 5/16 in
|
8 ft x 3/8 in
|
8 ft x 1/2 in
|
|
Stainless steel
|
8 ft x 10 Ga
|
8 ft x 3/16 in
|
8 ft x 0.20 in
|
8 ft x 1/4 in
|
8 ft x 5/16 in
|
|
Minimum roll dia.
|
9 7/8 in
|
10 7/8 in
|
12 1/2 in
|
13 7/8 in
|
14 3/4 in
|
|
Rolls length
|
8 ft 4 in
|
8 ft 4 in
|
8 ft 4 in
|
8 ft 4 in
|
8 ft 4 in
|
|
Rolls dia.
|
7 7/8 in
|
8 3/4 in
|
10 in
|
11 in
|
11 7/8 in
|
|
Pre-bend
|
0.19 in
|
0.20 in
|
0.23 in
|
0.28 in
|
0.35 in
|
|
Rolls speed
|
178 in / min
|
|
Rolls opening
|
4 3/4 in
|
|
Oil tank cap
|
35 Gal
|
40 Gal
|
50 Gal
|
55 Gal
|
|
Main motor
|
7 1/2 HP
|
7 1/2 HP
|
10 HP
|
15 HP
|
20 HP
|
|
Machine weight (lbs)
|
10,650
|
12,650
|
15,650
|
17,650
|
22,650
|
|
Dimensions (inches)
|
173 x 48 x 59
|
173 x 48 x 59
|
173 x 59 x 67
|
173 x 59 x 67
|
173 x 63 x 67
|
Optional Equipment:
-
Cone Attachment, factory installed # CT-HBR-DP
- (3) wire grooves # WG-HBR-DP
- Variable rolling speeds # Var-spd -DP
- Overhead support arm # OSA-DP
- Side support arm # SSA-DP
