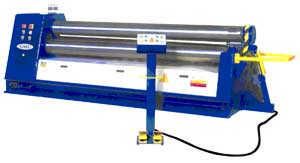

GMC HBR-0525DP - HBR-05625DP Hydraulic R

Features

  • ISO 9001 certified

  • Hydraulic York up/down for off load workpiece

  • (2) each LED indicators for bending & pinch rolls position

  • Safety line all around the machine for emergency stop

  • Heavy Duty all steel welded machine construction

  • German Hydraulic logic system centrally located and quiet

  • Bending & pinch rolls are hydraulic powered up/down & tilting

  • Planetary reduction gear and pump

  • All three rolls are made of high grade alloy steel

  • All rolls run forward and reverse

  • Safety type foot pedal control

  • Overload protection and disconnect switch

  • Power source 208V/220V, or 460 V , 3 phase

  • One year industrial  warranty for parts

Standard Equipment

  • (2) each LED indicator for bending & pinch rolls position

  • Safety line all around the machine for emergency stop

  • Removable safety foot pedal

  • Tool box and leveling pads

SPECIFICATIONS

Model HBR-0525-DP HBR-05375-DP HBR-0550-DP HBR-05516-DP HBR-05625-DP
Roll capacity:
Mild Steel

  5' x 1/4"

5' x 3/8"

 5' x 1/2"

 5' x 5/16"

5' x 5/8"

Stainless Steel  5' x  3/16" 5' x 1/4" 5' x  5/16"   5' x 0.20"  5' x 3/8"
Min.Roll Dia  9-1/2" 11-1/2" 12-1/2" 10-1/4" 13-7/8"
Other Specifications:
Rolls length   5'1"

   5' 1"

5' 1"

  5'1"

  5'1"
Rolls Dia.   7-1/2"  9" 10" 8-1/4" 11"
Pre-Bend    0.20" 0.28" 0.35"   0.23"  0.45"
Rolls speed

178" / min

178" / min

178" / min

178" / min

178" / min

Rolls Opening  4 -3/4"  4 -3/4"  4 -3/4"  4 -3/4"  4 -3/4"
Oil Tank Cap.  25 Gal. 35 Gal. 35 Gal.  25 Gal. 40 Gal.
Main Motor 5 HP  7-1/2 HP  10 HP 5 HP

     15 HP

Mach Weight  8,250 LBS 10,150 LBS 12,150 LBS  9,150 LBS   13,350 LBS
Dimensions 126x42x52 126x48x60 126x48x67 126x48x60 126x59x67
There is no further information.

Optional Equipment

  • Cone Attachment # CA-HBR-DP, factory installed

  • Variable rolling speeds # VRS-HBR-DP

  • Overhead support arm # OSA-DP

  • Side support arm # SSA-DP
