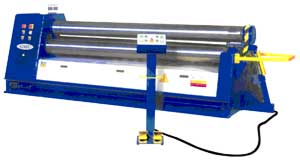

GMC HBR-0825DP-HBR-08516DP Hydraulic Rol

Features

• ISO 9001 certified

• Hydraulic York up/down for off load workpiece

• (2) each LED indicators for bending & pinch rolls position

• Safety line all around the machine for emergency stop

• Heavy Duty all steel welded machine construction

• German Hydraulic logic system centrally located and quiet

• Bending & pinch rolls are hydraulic powered up/down & tilting

• Planetary reduction gear and pump

• All three rolls are made of high grade alloy steel

• All rolls run forward and reverse

• Safety type foot pedal control

• Overload protection and disconnect switch

• Power source 208V/220V, or 460 V , 3 phase

• One year industrial  warranty for parts

Standard Equipment

• (2) each LED indicator for bending & pinch rolls position

• Safety line all around the machine for emergency stop

• Removable safety foot pedal

• Tool box and leveling pads

SPECIFICATIONS
Model	HBR-0820-DP	HBR-0825-DP	HBR-08375-DP	HBR-0850-DP	HBR-08516-DP
Roll capacity:
Mild Steel	8' x 0.20"	8' x 1/4"	8' x 3/8"	8' x 1/2"	8' x 5/16"
Stainless Steel	8' x 10 Ga.	8' x  3/16"	8' x 1/4"	8' x  5/16"	8' x 0.20"
Min.Roll Dia	9-7/8"	10-7/8"	13-7/8"	14-3/4	12-1/2"
Other Specifications:
Rolls length	8'4"	8'4"	8' 4"	8' 4"	8'4"
Rolls Dia.	7-7/8"	8-3/4"	11"	11-7/8"	10"
Pre-Bend	0.19"	0.20"	0.28"	0.35"	0.23"
Rolls speed	178" / min	178" / min	178" / min	178" / min	178" / min
Rolls Opening	4 -3/4"	4 -3/4"	4 -3/4"	4 -3/4"	4 -3/4"
Oil Tank Cap.	35 Gal	35 Gal	50 Gal.	55 Gal.	40 Gal
Main Motor	7-1/2 HP	7-1/2 HP	15 HP	20 HP	10 HP
Mach Weight	10,650 LBS	12,650 LBS	17,650 LBS	22,650 LBS	15,650 LBS
Dimensions	173x48x59	173x48x59	173x59x67	173x63x67	173x59x67

There is no further information.

Optional Equipment

• Cone Attachment , factory installed

• Variable rolling speeds # Var-spd

• Overhead support arm # OSA -DP

• Side support arm # SSA-DP
