GMC TL-618EVS & TL-618E Toolroom Lathes

s-h alt

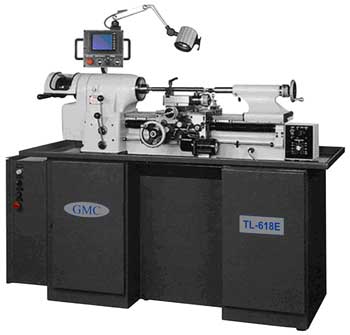

Picture Shown Above is TL-618E Model

Standard Features
  • Made in Taiwan
  • ISO 9001 certified
  • Spindle run-out within 0.00005" ( 50 millionths inch )
  • Turcite-B coating on guideways
  • 3HP Yaskawa inverter drive spindle motor
  • Infinity Yaskawa inverter drive spindle speeds from 0-4,000 rpm
  • Easy to read digital readout on actual spindle rpm speeds
  • Electric variable automatic feeding control on carriage and cross slide
  • Quick change tool post slide for threading
  • Dual range inch/metric quick change gear box for model # GMCTL-618EVS
  • Digital control & inverter drive gearbox ( no change gear ) for #GMCTL-618E, easy cutting threads, variable inch / metric threads range
  • Automatic thread length control w/ fine adjustable stops for accurate threading
  • 36 kinds of inch threads, and 36 kinds of metric threads
  • Spindle is balanced, hardened and precision ground
  • High precision pre-loaded angular contact bearings for spindle
  • Lubrication system for headstock, feed box, ways and leadscrews
  • Power 220V, 3 phase ( 220V, 1 phase is optional )
  • One year industrial  warranty for parts

Standard Equipment for GMC TL-618EVS & TL-618E

  • 5C collet closer installed

  • Quick change gear box

  • 8" drive plate with drive dog

  • Dual inch / metric dials

  • Drive gear

  • Coolant system

  • Halogen work light

  • Tool box with tools

Optional Accessories

  • 6" zero-set 3-jaw chuck with taper back plate

  • Taper turning attachment (installation is optional)

  • Full length rear splash guard

  • NEWALL DRO C80

  • 33 pc round 5C collet set, from 1/16 to 1-1/16" by 32ndth

  • 13 pc hexagon 5C collet set, 1/8" to 7/8" by 1/16th

  • 11 pc square 5C collet set, 1/8" to ¾" by 1/16"

  • 220V, 1 phase version ( upgrade to 5HP inverter)

Specifications:

Model No.

   GMC TL-618EVS

    GMC TL-618E

Max. swing over cross slide 6" 6"
Distance between centers 18"  18"
Max. swing over bed 11" 11"
Swing over carriage 9" 9"
Spindle capacity:
with 3-jaw chuck  6" 6"
With expanding collets 3" 3"
With round 5C collets 1-1/16" 1-1/16"
With hexagon 5C collets 7/8" 7/8"
With Square 5C collets 3/4" 3/4 "
With step chucks 1-1/16" to 6" 1-1/16" to 6"
Spindle nose diameter 2.189" 2.189"
Spindle nose ID/OD 5C / 4 degree taper 5C / 4 agree taper
Spindle thru hole 1-1/4" 1-1/4"
Bar stock diameter with 5C closer 1-1/16" 1-1/16"
Variable spindle speeds 0-4,000 rpm (5C) / 0-3,000 rpm ( with 6" 3-jaw chuck)
Other Specifications
Leadscrew diameter / pitch 1" /  8TPI 1" / 8 PTI
Carriage power feed speed range 5/16" to 7" /min 5/16" to 7" / min
Cross slide power feed range 3/16" to 4" / min. 3/16" to 4 " / min
Cross slide travel 6" 6"
Quick change compound slide travel 0.1" 0.1"
Compound slide travel 3" 3"
Inch threads 11-118 TPI , 36 kinds 4-120 TPI , variable
Metric threads 0.275-2.7mm, 36 kinds 0.2-6.35mm, variable
Tailstock quill diameter 1-3/8" 1-3/8"
Tailstock quill taper MT# 2 MT# 2
Tailstock quill travel 3-3/4" 3-3/4"
Spindle motor ( inverter drive ) 3HP, 220V, 3 phase 3HP, 220V , 3 phase
DC feeding motor 110V, 70 W 110V, 70 W
Inverter drive for gear box N/A 1/2 HP,220V, 3phase
Coolant pump 1/8HP, 220V, 3 phase 1/8HP, 220V, 3phase
Machine weight , approx 2,530 LBS 2,640 LBS
Machine dimensions, LxWxH 73" x 30"x 67" 73" x 30" x 67"
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
gmc/GMCTL-618EVS-th.jpg
TL-618EVS
OBSOLETE - NO LONGER AVAILABLE
Mfg. item #: TL-618EVS
GMCTL-618EVS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

847
gmc/GMCTL-618E-th.jpg
TL-618E
OBSOLETE - NO LONGER AVAILABLE
Mfg. item #: TL-618E
GMCTL-618E
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

848
900-0014
33 PC 5C COLLET SET, FROM 1/16 TOO 1-1/16 BY 32ND
Mfg. item #: 900-0014
GMC900-0014
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$394.84

153
Freight policies for items on this page:
1: Call for freight quote on this item or we will confirm freight charges before shipping.
20: FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.
