M471 / M553 SERIES MOUNTING FRAMES
Machine type required when order is placed to provide proper mounting brackets and hardware
Mounting Frames Required with M471 & M553 Hydraulic Hole Diggers | |
---|---|
471-1000 A | UNIVERSAL BUCKET MOUNT, CLAMP-TYPE |
471-1100 A | FRAME, MOUNTING, FOR 500 SERIES BOBCAT LOADERS |
471-1105 A | FRAME, MOUNTING, FOR 400 SERIES BOBCAT LOADERS |
471-1110 A | FRAME, MOUNTING, FOR 453 BOBCAT ONLY |
471-1200 A | FRAME, MOUNTING, FOR TORO DINGO, RAMROD AND FINN LOADERS |
![]() |
![]() |
![]() |

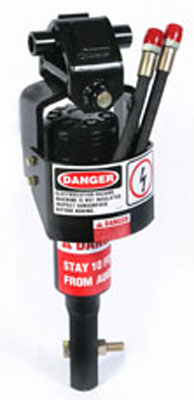

M471-12 DIG-R-TACH HYDRAULIC HOLE DIGGER ATTACHMENT
Designed to be utilized with compact tractor loader backhoes, mini type excavators and small tractor loaders. Not to be utilized as an earth drilling attachment with
skid steer loaders or any carrier vehicle not equipped with a proper protective barrier to prevent auger contact with the operator during normal operation. Not designed to be mounted to the
dipperstick bucket of compact tractor loader backhoes because of inherent center of gravity limitations. For use with the 4710 Series augers and 6700 Series Auger Extensions. Refer to auger section
for specific details. Less auger
Auger
Hydraulic System
Download PDF Files M471-12
M471-20 DIG-R-TACH HYDRAULIC HOLE DIGGER ATTACHMENT
Designed to be utilized with compact tractor loader backhoes, mini type excavators and small tractor loaders. Not to be utilized as an earth drilling attachment with skid steer loaders or any
carrier vehicle not equipped with a proper protective barrier to prevent auger contact with the operator during normal operation. Not designed to be mounted to the dipperstick bucket of compact
tractor loader backhoes because of inherent center of gravity limitations. For use with the 4710 Series augers and 6700 Series Auger Extensions. Refer to auger section for specific details. Less
auger.
Specifications:
AUGER
Drive shaft Connection: 2 inch (mm) Hexagon
Diameter: 4" (102mm) to 24" (610mm)
Extension: Flighted and Non-flighted plain tube, depth to 45" (1143mm)
Maximum Drilling Torque: 456-731 ft. lbs.
Hydraulic System
Configuration: Open Type
System Flow: 7-12 GPM (27-46 lit/min) at 1500 -3000 PSI
Download PDF File M471-20
4710 Series Augers - Drive Connection: 2 inch hexagon
Available in 3 foot effective digging depths. Each equipped with 1/4 or 3/8 inch thickness, single pitch sectional or helicond flighting the full length of the auger
axle. 4710 Series auger and 6700 Series Auger Extentions utilize a formed steel boring head with Pengo TYPE teeth and screw bit. For use with either the M471-12 and M471-20Series DIG-R-TACH® and
competitive models of popular hydraulic power earth drilling attachments utilizing a 2 inch hexagon drive connection. If you do not find what you are looking for please contact our sales team @
1-800-458-3687
4710 Series Augers - Drive Connection: 2 inch hexagon | ||||
Part No. | Flighting OD | Cutting Dia | Digging Depth | Weight |
4710-6E3 | 6 inch | 7-1/2 inch | 3 feet | 70 lbs |
4710-8E3 | 8 inch | 9-1/2 inch | 3 feet | 80 lbs |
4710-12E3 | 12 inch | 13-1/2 inch | 3 feet | 108 lbs |
4710-16E3 | 16 inch | 17-1/2 inch | 3 feet | 130 lbs |
4710-18E3 | 18 inch | 19-1/2 inch | 3 feet | 140 lbs |
4710-24E3 | 24 inch | 25-1/2 inch | 3 feet | 250 lbs |
4710-30E3 | 30 inch | 31-1/2 inch | 3 feet | 313 lbs |
4710-36E3 | 36 inch | 37-1/2 inch | 3 feet | 375 lbs |
4710 Series Auger Extensions | ||||
6700-15X | N/A | No Flighting | 15 inches | 25 lbs |
6700-36X | N/A | No Flighting | 36 inches | 36 lbs |
M553-12 DIG-R-TACH HYDRAULIC HOLE DIGGER ATTACHMENT
Designed to be utilized with compact tractor loader backhoes, mini type excavators and small tractor loaders. Not to be utilized as an earth drilling attachment with skid steer loaders or any carrier vehicle not equipped with a proper protective barrier to prevent auger contact with the operator during normal operation. Not designed to be mounted to the dipperstick bucket of compact tractor loader backhoes because of inherent center of gravity limitations. For use with the 4750 Series augers and 6780 Series Auger Extensions. Refer to auger section for specific details. Less auger.
Specifications:
AUGER
Drive shaft Connection: 2-9/16 inch (mm) round
Diameter: 4" (102mm) to 24" (610mm)
Extension: Flighted and Non-flighted plain tube, depth to 45" (1143mm)
Maximum Drilling Torque: 281-425 ft. lbs.
Hydraulic System
Configuration: Open Type
System Flow: 5-10 GPM (19-38 lit/min) at 1500 -3000 PSI
Download PDF File M553-12
M553-20 DIG-R-TACH HYDRAULIC HOLE DIGGER ATTACHMENT
Designed to be utilized with compact tractor loader backhoes, mini type excavators and small tractor loaders. Not to be utilized as an earth drilling attachment with skid steer loaders or any carrier vehicle not equipped with a proper protective barrier to prevent auger contact with the operator during normal operation. Not designed to be mounted to the dipperstick bucket of compact tractor loader backhoes because of inherent center of gravity limitations. For use with the 4750 Series augers and 6780 Series Auger Extensions. Refer to auger section for specific details. Less auger.
Specifications:
AUGER
Drive shaft Connection: 2-9/16 inch (mm) round
Diameter: 4" (102mm) to 24" (610mm)
Extension: Flighted and Non-flighted plain tube, depth to 45" (1143mm)
Maximum Drilling Torque: 456-731 ft. lbs.
Hydraulic System
Configuration: Open Type
System Flow: 7-12 GPM (27-46 lit/min) at 1500 -3000 PSI
Download PDF File M553-20
4750 Series Augers - Drive connection: 2-9/16 inch round
Available in 3 foot effective digging depths. Each equipped with 1/4 or 3/8 inch thickness, single pitch sectional or helicond flighting the full length of the auger axle. 4750 Series auger and 4780 Series auger extensions utilize a formed steel boring head with Pengo® TYPE teeth and screw bit. For use with either the M553-12 and M553-20 Series DIG-R-TACH® and competitive models of popular hydraulic power earth drilling attachments utilizing a 2-9/16 inch round auger drive connection.
4750 Series Augers - Drive connection: 2-9/16 inch round | ||||
Part No | Description | Cutting Dia | Digging Depth | Weight |
4750-6E3 | AUGER, 6D, 36L, 2.56RD | 7-1/2 | 3 feet | 60 lbs |
4750-8E3 | AUGER, 8D, 36L, 2.56RD | 9-1/2 | 3 feet | 65 lbs |
4750-12E3 | AUGER, 12D, 36L, 2.56RD | 13-1/2 | 3 feet | 91 lbs |
4750-16E3 | AUGER, 16D, 36L, 2.56RD | 17-1/2 | 3 feet | 109 lbs |
4750-18E3 | AUGER,18D, 36L, 2.56RD | 19-1/2 | 3 feet | 118 lbs |
4750-24E3 | AUGER, 24D, 36L, 2.56RD | 25-1/2 | 3 feet | 221 lbs |
4750-30E3 | AUGER, 30D, 36L, 2.56RD | 31-1/2 | 3 feet | 276 lbs |
4750-36E3 | AUGER, 36D, 36L, 2.56RD | 37-1/2 | 3 feet | 330 lbs |
4750 Series Auger Extnsions | ||||
6780-15X | 15" EXTENSION | No Flighting | 15 inches | 25 lbs |
6780-36X | 36" Extension | No Flighting | 36 inches | 36 lbs |
