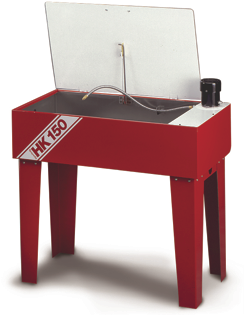

Graymills HK150 Parts Cleaner



hk-150 parts cleaner

Free Standing, Economical and Professional Part Washers

Full-sized free-standing units offer professional features in an economical package. Ideal for general maintenance and repair in industrial, automotive, marine, or farm applications.

HK-150 Features

  • Abrasive-resistant pump; motor is not exposed to the cleaning solution - eliminates need for pump seals.
  • 400 GPH flow rate
  • Flexible Stay-Put metal flush hose for directable hands-free flushing action
  • Filtration system includes sludge collection basket with dual foam filter to keep solution cleaner longer
  • Removable internal work shelf or basket for easy manual cleaning and parts visibility
  • Bottom drain for easy fluid change-outs
  • Fusible safety link closes lid in event of fire
  • 16 gauge steel tank with powder-coat finish for durability and long-life
  • Removable legs for conversion into bench-top unit
  • Optional external drain shelf to drain cleaned parts
  • Best used with Graymills Agitene products
MODEL NO OPERATING FLUID CAPACITY Operating Voltage
HK150-A 2-1/2 – 5 Gallons 115V/60 Hz/1

AL-2  360 degree rotation and a 28" gooseneck allows additional lighting of work area. Solid support so light cannot be pulled down to obstruct cover closing in case of fire. For HK-150, all Handi-Kleens and all Clean-O-Matics. Mounts to back or side of tank.
L-61  16 gauge steel shelf mounts to side of Flo-Bac, HK-150, and all Handi-Kleen models. 15"L x 18"W
3BG  Standard brush with 2-1/2" polypropylene bristles
5D  Double brush with 1-1/2" and 2-1/2" nylon bristles
6A  Flow-Thru brush flushes part as it cleans. Solvent flows through core of handle; 2" Connecting hose, 2-1/2" nylon bristles, and a rubber connector that slips over nozzle of flexible metal hose of parts cleaner
7A  Flat Angular Flow-Thru cleaning brush can attach to pump nozzle with optional rubber hose

8A  Round Angular handle cleaning brush can attach to pump nozzle with optional rubber hose
L-3  Parts basket permits flushing of small parts while keeping them organized. 10" diameter
L-7  Parts basket hooks over edge of tank or stands on legs. 8"L x 6"W x 4"H
L-8  Parts basket with expanded metal on sides and bottom. 13"L x 12"W x 5"H
5B-1  Parts basket sized and bracket for use with standard five gallon pail.
401-21226 Fusible link assembly

Solvents

Need Solvents? Click Here

HK150-A
FLO-BAC - ECONOMY UNIT; 115V, 1PH ** SHIPPING WEIGHT = 83 LBS
Mfg. item #: HK150-A
GRAHK150-A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$555.00

20
AL-2
WORK LIGHT - FOR HK-150, ALL HANDI-KLEENS AND CLEAN-O-MATICS ** SHIPPING WEIGHT = 2 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: AL-2
GRAAL-2
FREE shipping when ordered with a machine from this manufacturer.20
$129.70

20
L-61
DRAIN SHELVES - EXTERNAL SHELF FOR FLO-BAC, HK-150 AND ALL HANDI-KLEENS ** SHIPPING WEIGHT = 13 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-61
GRAL-61
FREE shipping when ordered with a machine from this manufacturer.20
$89.58

20
3BG
BRUSHES - STANDARD BRUSH, 2-1/2_ POLYPROPYLENE BRISTLES ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 3BG
GRA3BG
FREE shipping when ordered with a machine from this manufacturer.20
$8.00

20
5D
BRUSHES - DOUBLE BRUSH, 1-1/2_ AND 2-1/2_ NYLON BRISTLES ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 5D
GRA5D
FREE shipping when ordered with a machine from this manufacturer.20
$14.00

20
6A
BRUSHES - FLOW-THRU BRUSH ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 6A
GRA6A
FREE shipping when ordered with a machine from this manufacturer.20
$25.00

20
7A
BRUSHES - FLOW-THRU, FLAT ANGULAR WITHOUT VALVE ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 7A
GRA7A
FREE shipping when ordered with a machine from this manufacturer.20
$38.00

20
8A
BRUSHES - FLOW-THRU, ROUND ANGULAR CLEANING HOLES SURROUNDING FILAMENTS ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 8A
GRA8A
FREE shipping when ordered with a machine from this manufacturer.20
$26.00

20
L-3
GENERAL PURPOSE BASKETS - FOR FLUSHING SMALL PARTS, 10_ DIA ** SHIPPING WEIGHT = 3 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-3
GRAL-3
FREE shipping when ordered with a machine from this manufacturer.20
$61.00

20
L-7
GENERAL PURPOSE BASKETS - RECTANGULAR, WITH HANGER 8_ X 6_ X 4_, FOR SMALL PARTS ** SHIPPING WEIGHT = 8 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-7
GRAL-7
FREE shipping when ordered with a machine from this manufacturer.20
$91.44

20
L-8
GENERAL PURPOSE BASKETS - EXPANDED METAL SIDES AND BOTTOM. GENERAL PURPOSE ** SHIPPING WEIGHT = 8 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-8
GRAL-8
FREE shipping when ordered with a machine from this manufacturer.20
$130.38

20
5B-1
GENERAL PURPOSE BASKETS - SIZED AND BRACKETED FOR USE ON 5 AND 6 GALLON PAILS ** SHIPPING WEIGHT = 2 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 5B-1
GRA5B-1
FREE shipping when ordered with a machine from this manufacturer.20
$66.00

20
401-21226
FUSIBLE LINK ASSEMBLIES INCLUDE FUSIBLE LINK, MOUNTING HARDWARE AND SPRING ASSEMBLY - FOR 2R AND HK, PRE-1994 MODELS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 401-21226
GRA401-21226
FREE shipping when ordered with a machine from this manufacturer.20
$82.00

20
