Graymills Handi Kleen Model PL422 W/ In-

Handi-Kleen Solvent Parts Washers

Combination of solvent scrub station and soak tank

Versatile units Optimize flush hose (hand held brush cleaning optional), sloped work shelf for draining, small parts basket and optional drain shelf. Tanks have bottom drain for easy maintenance. Ideal for general maintenance and repair in industrial, automotive, marine, or farm applications.

PL422 Standard Features

  • Filter and sludge collector basket with dual-element foam filter keeps fluid cleaner longer for fewer change-outs. (Not available on PL36-FB.)
  • Flexible Stay-Put metal flush hose for directable hands-free flushing action
  • 16/18 gauge steel tank with durable powder-coat finish for durability and long-life
  • Bottom drain convenient for fluid change-outs
  • Small parts basket
  • Fusible safety link closes lid in event of fire

Additional Features PL422

  • 400 GPH Graymills Superflo pump
  • Two-piece sliding, solid metal work shelf extends over the entire tank to provide a 34-1/2 x 20-3/16 inch work surface as well as to reduce solvent loss due to evaporation. Sliding the right shelf over the left creates an 18 x 21-1/2 inch soak tank with an equal size work area. Or store both shelves in the side slot for a fully-open soak tank.
  • Best used with Graymills Agitene products

Optional PL422 Only

  • Optional removable soak/sludge trays keep soaking parts off bottom makes sludge removal easier

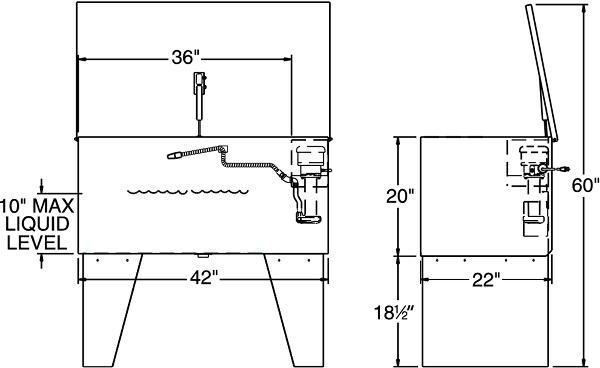

pl422 diagram

Model No Operating Fluid Capacity Operating Voltage
PL422-A 25 - 40 Gal 115 V / 60 Hz / 1



AL-2  360 degree rotation and a 28" gooseneck allows additional lighting of work area. Solid support so light cannot be pulled down to obstruct cover closing in case of fire. For HK-150, all Handi-Kleens and all Clean-O-Matics. Mounts to back or side of tank.
L-61  16 gauge steel shelf mounts to side of Flo-Bac, HK-150, and all Handi-Kleen models. 15"L x 18"W
3BG  Standard brush with 2-1/2" polypropylene bristles
5D  Double brush with 1-1/2" and 2-1/2" nylon bristles
6A  Flow-Thru brush flushes part as it cleans. Solvent flows through core of handle; 2" Connecting hose, 2-1/2" nylon bristles, and a rubber connector that slips over nozzle of flexible metal hose of parts cleaner
7A  Flat Angular Flow-Thru cleaning brush can attach to pump nozzle with optional rubber hose
8A  Round Angular handle cleaning brush can attach to pump nozzle with optional rubber hose
L-3  Parts basket permits flushing of small parts while keeping them organized. 10" diameter
L-7  Parts basket hooks over edge of tank or stands on legs. 8"L x 6"W x 4"H
L-8  Parts basket with expanded metal on sides and bottom. 13"L x 12"W x 5"H
5B-1  Parts basket sized and bracket for use with standard five gallon pail.
401-21226 Fusible link assembly

Solvents
Need Solvents? Click Here

PL422-A
HANDI-KLEEN - LEG MOUNTED WITH ELECTRIC MOTOR; 115V, 1PH ** SHIPPING WEIGHT = 185 LBS
Mfg. item #: PL422-A
GRAPL422-A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$1,095.00

46
AL-2
WORK LIGHT - FOR HK-150, ALL HANDI-KLEENS AND CLEAN-O-MATICS ** SHIPPING WEIGHT = 2 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: AL-2
GRAAL-2
FREE shipping when ordered with a machine from this manufacturer.20
$129.70

46
L-61
DRAIN SHELVES - EXTERNAL SHELF FOR FLO-BAC, HK-150 AND ALL HANDI-KLEENS ** SHIPPING WEIGHT = 13 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-61
GRAL-61
FREE shipping when ordered with a machine from this manufacturer.20
$89.58

46
3BG
BRUSHES - STANDARD BRUSH, 2-1/2_ POLYPROPYLENE BRISTLES ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 3BG
GRA3BG
FREE shipping when ordered with a machine from this manufacturer.20
$8.00

46
5D
BRUSHES - DOUBLE BRUSH, 1-1/2_ AND 2-1/2_ NYLON BRISTLES ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 5D
GRA5D
FREE shipping when ordered with a machine from this manufacturer.20
$14.00

46
6A
BRUSHES - FLOW-THRU BRUSH ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 6A
GRA6A
FREE shipping when ordered with a machine from this manufacturer.20
$25.00

46
7A
BRUSHES - FLOW-THRU, FLAT ANGULAR WITHOUT VALVE ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 7A
GRA7A
FREE shipping when ordered with a machine from this manufacturer.20
$38.00

46
8A
BRUSHES - FLOW-THRU, ROUND ANGULAR CLEANING HOLES SURROUNDING FILAMENTS ** SHIPPING WEIGHT = 1 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 8A
GRA8A
FREE shipping when ordered with a machine from this manufacturer.20
$26.00

46
L-3
GENERAL PURPOSE BASKETS - FOR FLUSHING SMALL PARTS, 10_ DIA ** SHIPPING WEIGHT = 3 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-3
GRAL-3
FREE shipping when ordered with a machine from this manufacturer.20
$61.00

46
L-7
GENERAL PURPOSE BASKETS - RECTANGULAR, WITH HANGER 8_ X 6_ X 4_, FOR SMALL PARTS ** SHIPPING WEIGHT = 8 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-7
GRAL-7
FREE shipping when ordered with a machine from this manufacturer.20
$91.44

46
L-8
GENERAL PURPOSE BASKETS - EXPANDED METAL SIDES AND BOTTOM. GENERAL PURPOSE ** SHIPPING WEIGHT = 8 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: L-8
GRAL-8
FREE shipping when ordered with a machine from this manufacturer.20
$130.38

46
5B-1
GENERAL PURPOSE BASKETS - SIZED AND BRACKETED FOR USE ON 5 AND 6 GALLON PAILS ** SHIPPING WEIGHT = 2 LBS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 5B-1
GRA5B-1
FREE shipping when ordered with a machine from this manufacturer.20
$66.00

46
401-21226
FUSIBLE LINK ASSEMBLIES INCLUDE FUSIBLE LINK, MOUNTING HARDWARE AND SPRING ASSEMBLY - FOR 2R AND HK, PRE-1994 MODELS
FREE SHIPPING WHEN ADDED TO A PARTS WASHER ORDER
Mfg. item #: 401-21226
GRA401-21226
FREE shipping when ordered with a machine from this manufacturer.20
$82.00

46
