Heck High Production Beveling


PRO-SERIES
High Production Beveling

Specifications Pro-6 Pro-12-C Pro 12 Pro 12-G Pro 20 Pro 21-G
Maximum bevel depth (in) .236 .625  .625  .625  .785  .785
Max material thickness (in) .625 1.57 1.57 1.25 1.75 2.00
Min material thickness (in) .125 .250 .250 .250 .312 .312
Bevel speed 6fpm 10fpm 10fpm 10fpm 5-10fpm 10fpm
Bevel-Angle 22.5-45 22.5-45 22.5-45 20-45 22.5-45 20-45
Motor 3/4hp 3hp 3hp 3hp 4-6hp 4hp
Weight 77 lbs 147 lbs 167hp 249 lbs 620 lbs 840lbs



Features:

  • Self Propelled
  • Hands Free Beveling
  • Variable Angle
  • Simple, Quiet Operation
  • Shear Type Cutting
  • Sharpenable Cutters
  • Use Bench Mounted, on Casters or Suspend from Overhead Crane
  • By inverting, bottom edges can also be worked
  • Work Mild Steel, Stainless or Aluminum up to 1-3/4 inch
  • Available: Narrow width attachment works strips as narrow as 7/8 inch
  • Maximum bevel depth at 30 degrees
  • Maximum bevel will require 2 passes
  • Minimum thickness maybe more for stainless steel
  • Available electric 220/440/380/575 volt 3 phase - must specify when ordering

All Machines include one cutter and pipe beveling attachment

Heck Bevel-Mill Pro Series Mill
PRO6-C Bevel Mill Pro Series
PRO12 Bevel Mill Pro Series
PRO12G Bevel Mill Pro Series
PRO12-C Bevel Mill Pro Series
30102400 Cutter for Mild steel For Pro 12
15122600 Cutter for hard material For Pro 12
15121500 Cutter for aluminum For Pro 12
15122900 Cutter for finishing up to 5/16 inch thick For Pro 12
16050300 Roller 30 degrees For Pro 12
16001900 Roller 37 1/2 degree For Pro 12
16001600 Roller 45 Degree For Pro 12
160012TR Adjustable angle trolley support For Pro 12 Only
30110500 Cutter for Mild steel For Pro 20
15132000 Cutter for hard material For Pro 20
15131900 Cutter for aluminum For Pro 20

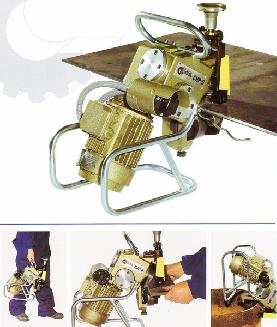

PRO-6
High Production Beveling

  • Bevel at 6ft feet per minute
  • Direct drive
  • Light weight
  • Ideal for thin materials




PRO12-C
Power Feed

PRO-12
High Production Beveling

PRO-12G
High Production Beveling

PRO-12G-REV
High Production Beveling

Bevel at 10 feet per minute

Direct Drive motor

Bevel at 10 feet per minute

Shown with optional adjustable angle Trolley

Heavy duty Belt drive gear box

Variable angle 20-45 degree

Just turn a hand knob to change the bevel angle

Includes spring loaded trollry

Variable angle 20-45 degree

Machine can be rotated in it's carriage for Beveling both Top and Bottom edges of a plate

Includes spring loaded trolley





PRO-20
High Production Beveling

  • 2 speed motor
  • 5 or 10 feet per minute feed rate
  • Interchangeable support rolls for different angles bevels
  • Best used as a stationary machine

PRO-21-G
Variable Bevel angle 20-45 degree
s



PRO-21-G-INV
Variable Bevel angle 20-45 degrees

  • Inverted for beveling the bottom side of a plate
  • No need to Flip a Large Plare

Pro20
BEVEL MILL PRO SERIES INCLUDES 30 DEGREE ROLLER ASSEMBLY, MILD STEEL CUTTER, WRENCHES, AND INSTRUCTIONS, 220 OR 440 VOLT 3 PH
Mfg. item #: Pro20
HECPRO20
lease to own for as little as:$376 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$18,788.00

2574
PRO 21
BEVEL MILL PRO SERIES
Mfg. item #: PRO 21
HECPRO 21
Call for Price

811
PRO6-C
BEVEL MILL PRO SERIES
Mfg. item #: PRO6-C
HECPRO6-C
Call for Price

811
Pro12
BEVEL MILL PRO SERIES INCLUDES 30 DEGREE ROLLER ASSEMBLY, MILD STEEL CUTTER, WRENCHES, AND INSTRUCTIONS, 220 OR 440 VOLT 3 PH
Mfg. item #: Pro12
HECPRO12
lease to own for as little as:$224 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$11,191.87

2574
PRO12G
BEVEL MILL PRO SERIES
Mfg. item #: PRO12G
HECPRO12G
Call for Price

811
PRO12-C
BEVEL MILL PRO SERIES
Mfg. item #: PRO12-C
HECPRO12-C
Call for Price

811
30102400
CUTTER FOR MILD STEEL FOR PRO 12
Mfg. item #: 30102400
HEC30102400
Call for Price

811
15122600
CUTTER FOR HARD MATERIAL FOR PRO 12
Mfg. item #: 15122600
HEC15122600
Call for Price

811
15121500
CUTTER FOR ALUMINUM FOR PRO 12
Mfg. item #: 15121500
HEC15121500
Call for Price

811
15122900
CUTTER FOR FINISHING UP TO 5/16 THICK FOR PRO 12
Mfg. item #: 15122900
HEC15122900
Call for Price

811
16050300
ROLLER 30 DEGREES FOR PRO 12
Mfg. item #: 16050300
HEC16050300
Call for Price

811
16001900
ROLLER 37 1/2 DEGREE FOR PRO 12
Mfg. item #: 16001900
HEC16001900
Call for Price

811
16001600
ROLLER 45 DEGREE FOR PRO 12
Mfg. item #: 16001600
HEC16001600
Call for Price

811
160012TR
ADJUSTABLE ANGLE TROLLEY SUPPORT FOR PRO 12 ONLY
Mfg. item #: 160012TR
HEC160012TR
Call for Price

811
30110500
CUTTER FOR MILD STEEL FOR PRO 20
Mfg. item #: 30110500
HEC30110500
Call for Price

811
15132000
CUTTER FOR HARD MATERIAL FOR PRO 20
Mfg. item #: 15132000
HEC15132000
Call for Price

811
15131900
CUTTER FOR ALUMINUM FOR PRO 20
Mfg. item #: 15131900
HEC15131900
Call for Price

811
