Hud-Son Uniforest 80 EH

UNIFOREST 80 EH

• Self-sustained hydraulic system
• Windlass appropriate for medium sized as well as large tractors
• Connection possibility at two different levels
• Lower windlass and connection build in serially
• Closed bearing included - no greasing needed

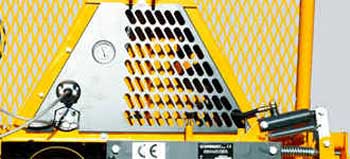

• All hydraulic components integrated within the tower are protected from mechanical and
  weather impact
• Low pressure within the hydraulic system ensures undisturbed long-term functioning
• Optional - board width 2,00 m

Abbreviations:
S	Serial
O	Optional
M	Mechanical
H	Electro-hydraulic

Technical Data		Unit
Type			80EH
Pulling Force		kN	80
Mean Wire Rope Velocity		m/s	0,6
Length / Diameter Of The Wire Rope	Maximal (Theoretical)	m/mm	100/14
			110/13
			130/12
	Serial	m/mm	90/13
Recommendable Tractor Power		kW	>50
		HP	>70
A		mm	1800
B		mm	750
C		mm	1650
D		mm	2300
Weight Without Wire Rope		kg	562
Lower Windlass			S
Connection			S
Steering			H
