Extraordinary Performance for Ordinary Tasks

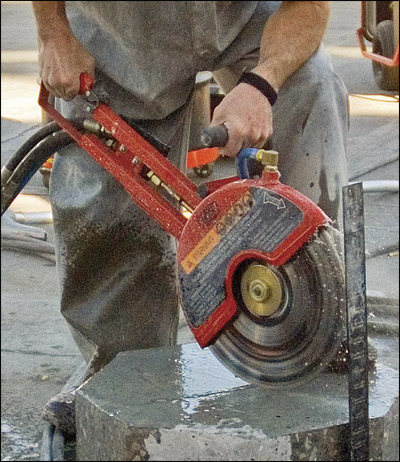

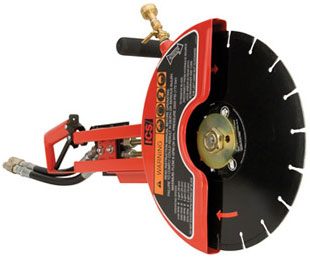

The 14H hydraulic direct-drive saw is a rugged and versatile tool that cuts cleanly and quickly through concrete, steel, stone, composition material, or hard fiber. The slim line design of the saw allows cuts to be made within inches of a wall or an obstruction and hydraulic power means less vibration. The saw is equipped with an adjustable blade guard, water hose connection for wet cutting and 12-inch (30 cm) long hose whips.

Recommended Hydraulic Oil
Viscosity	140-225 SUS @ 100Â°F 40 min. SUS @ 210ÂºF	(28-45 cSt @ 38Â°C) (8 min. cSt @ 99ÂºC)
Flash Point	340ÂºF min	(170ÂºC min.)
Pour Point	-30ÂºF min.	(-34ÂºC min.)

14H Hydraulic Circular Saw Specifications
Weight	21 lbs. (10 kg.)
Length (w/o blade)	27 in. (686 mm)
Maximum Blade Diameter	14 in. (356 mm)
Arbor Diameter	1 in. (25 mm)
Flow Rate	5-8 gpm (20-30 lpm)
Maximum Pressure Range	2000-2500 psi (136-172 bar)
Maximum Pressure Relief Setting	2500 psi (172 bar)
Back Pressure (Max)	500 psi (34 bar)
Hose Length (Max)	100 ft. (30 m)
Speed	2570 rpm - 4100 rpm
Cutting Depth	5.25 in. (132 mm)

There are no listed accessories.
