ICS 695GC and The New ICS695XL Concrete Saw

models
New 695XL
Details
WATER SUPPLY

695XL GC Gas Power Cutters and Consumables (.444 PITCH)
581192	ICS 695XL GC Powerhead
576150	ICS 695XL-12 GC Gas Power Cutter Pkg, with 12 in/30 cm Guidebar & FORCE3 Chain
575863	ICS 695XL-14 GC Gas Power Cutter Pkg, with 14 in/35 cm Guidebar & FORCE3 Chain
575865	ICS 695XL-16 GC Gas Power Cutter Pkg, with 16 in/40 cm Guidebar & FORCE3 Chain
Chains
584290	ICS FORCE3 chain 12 in/30 cm, 58 Drive Links
584292	ICS FORCE3 chain 14 in/35 cm, 64 Drive Links
584294	ICS FORCE3 chain 16 in/40 cm, 70 Drive Links
584298	ICS FORCE3 Premium chain 12 in/30 cm, 58 Drive Links
584302	ICS FORCE3 Premium chain 14 in/35 cm, 64 Drive Links
584303	ICS FORCE3 Premium chain 16 in/40 cm, 70 Drive Links
584297	ICS FORCE3 Brick chain 12 in/30 cm, 58 Drive Links
584299	ICS FORCE3 Brick chain 14 in/35 cm, 64 Drive Links
584301	ICS FORCE3 Brick chain 16 in/40 cm, 70 Drive Links
Guidebars
553207	ICS 695GC Guidebar 12 in/30 cm
73600	ICS 695GC Guidebar 14 in/35 cm
71600	ICS 695GC Guidebar 16 in/40 cm
695F4 Gas Power Cutters and Consumables (.444 PITCH)
575826	ICS 695XL F4 Powerhead
576151	ICS 695XL-12 F4 Gas Power Cutter Pkg, with 12 in/30 cm FORCE4 Guidebar & FORCE4 Chain
575872	ICS 695XL-16 F4 Gas Power Cutter Pkg with 16 in/40 cm FORCE4 Guidebar & FORCE4 Chain
575827	ICS 695XL-16 PG Gas Power Cutter Pkg with 16 in/40 cm FORCE4 Guidebar & PowerGrit Chain
Chains
531743	ICS FORCE4-25 chain 12 in/30 cm
525342	ICS FORCE4-29 chain 16 in/40 cm
531745	ICS FORCE4-25 Premium L chain 12 in/30 cm
525343	ICS FORCE4-29 Premium L chain 16 in/40 cm
531739	ICS FORCE4-25 Premium S chain 12 in/30 cm
531735	ICS FORCE4-29 Premium S chain 16 in/40 cm
531747	ICS FORCE4-25 Abrasive chain 12 in/30 cm
525344	ICS FORCE4-29 Abrasive chain 16 in/40 cm
599881	ICS FORCE4-50 Cross-LINK chain 12 in/30 cm
599882	ICS FORCE4-58 Cross-LINK chain 16 in/40 cm
605443	ICS FORCE4-25 Sandwich Segment chain 12 in/30 cm
605414	ICS FORCE4-29 Sandwich Segment chain 16 in/40 cm
598280	ICS FORCE4-25 Texas Edition chain 12 in/30 cm
598281	ICS FORCE4-29 Texas Edition chain 16 in/40 cm
571504	ICS FORCE4-25 Premium S wide kerf (.375) chain 12 in/30 cm
570943	ICS FORCE4-29 Premium S wide kerf (.375) chain 16 in/40 cm
537764	ICS PowerGrit Chain 16 in/40 cm
547641	ICS PowerGrit Chain 12 in/30 cm
608233	ICS PowerGrit XL Chain 12 in/30 cm
607664	ICS PowerGrit XL Chain 16 in/40 cm
Guidebar
553208	ICS 695F4 Guidebar 12 in/30 cm
524490	ICS 695F4 Guidebar 16 in/40 cm

695XL Petrol-Powered Concrete & Utility Pipe Chain Saw

New! 695XL Petrol-Powered Concrete and Utility Pipe Chain Saw

Deepest, Most Versatile Petrol Powered Saw

Datasheet

Operator Manual - English

The new 695XL features include an easy to start engine with higher energy ignition system and durable, long-lasting components including a new muffler, carburetor and piston and cylinder. Available with 12-inch (30 cm) - 16-inch (40cm) guidebars and the entire line of MAX, ProForce and PowerGrit series diamond chains. Based on the best-selling 695 saw platform, the 695XL is the highest horsepower ICS gas saw for frequent-use by general construction, utility contractors and concrete professionals.

Features and Benifits

Use on concrete, stone, masonry, ductile iron pipe, cast iron pipe and more
Most versatile petrol-powered saw
New piston and cylinder lowers engine temperature
Longer life muffler with reinforced internal baffle
Easy-to-start with higher energy ignition system
New easy-to-tune carburetor

Specifications
Engine Type	2-Stroke, Air Cooled
Displacement	94cc (5.7 cu-in)
Horsepower	4.8kW (6.4 hp) at 9000 rpm
Torque	5.7 Nm (50.4 in-lbs) at 7200 rpm
Engine Speed	9,300 +/- 150 rpm (max)/2,700 +/- 100 rpm (idle)
Chain Speed at Maximum Power	28 m/s (5500 ft /min)
Weight	9.5 kg (21 lbs) powerhead only
Dimensions	46cm (18 inch) L x 36cm (14 inch) H x 30cm (12 inch) W
Starter	Recoil, dust and water resistant
Ignition	Special water resistant electronic ignition
Fuel ratio	2 percent (50:1) petrol-to-oil
Fuel Capacity	1 liter (0.26 gallon)
Water Supply Requirement	Minimum: 1.5 bar (20 psi)
Water Flow Requirement	Minimum: 4 lpm (1 gpm)
Guaranteed Sound Power Level, Lwa (1)	115 dB(A); (Kwa=1.0 dB(A))
Equivalent Sound Pressure at the Operator's Ear Lwa	104.6 dB(A) (K=1.0 dB(A))
Vibration, ahv eq Concrete Cutting (2)	3.6 m/s2 (K=1.0 m/s2) Front Handle/3.1 m/s2 (K=1.0 m/s2) Rear Handle
Vibration, ahv eq Pipe Cutting (2)	5.62 m/s (K=0.2 m/s2) Front Handle/5.28 m/s2 (K=0.2 m/s2) Rear Handle

FEATURES & BENEFITS

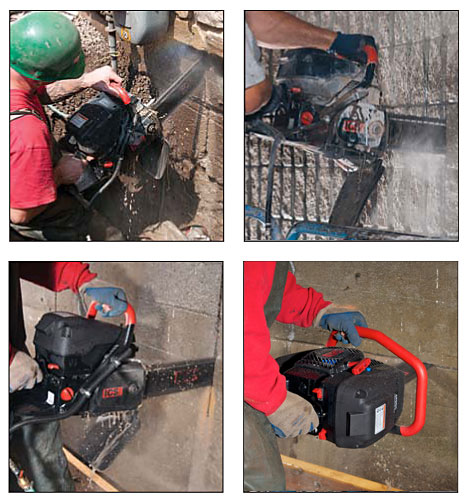

Use on concrete, stone and masonry
Square corners
Narrow deep cutting up to 16 in. (40 cm)
Small openings
94 cc gas powered engine
Safe, no gyroscopic rotation

What Are You Looking At ?

Advanced rear-ported intake keeps airflow slurry free
Retained single nut bar clamp provides simplified bar clamping and no parts to lose
Extended drive sprocket adapter offers easier chain assembly
Oversized tensioner screw for easier chain tensioning
Choose from the entire line of MAX diamond chains as well as the revolutionary FORCE4 for all of your concrete, stone, and masonry cutting needs.
Available with 14 inch (35 cm) or 16 inch (40 cm) guidebars for deep penetration
Patented WallWalker for straighter cuts and lessened operator effort
Polyester air filter designed specifically for wet cutting

Download the 695GC Datasheet (PDF)

573285

Portable Water Tank - PDX

Datasheet (pdf)

ICS - Portable Water Supply, 551494

Click here to download datasheet

When water isnt readily available, this corrosion resistant poly tank provides the solution. Able to hold up to 25 gallons, this tank offers the required pressure and flow that ICS saws require. The diaphragm High-Flo pump provides 1.8 gpm at 60 psi and comes with molded alligator clips for 12v battery hookup. Comes with a whip fitted with a standard hose end, ready for any regular hose you desire.

Features:

Portable
Easy to transport
Fits a regular hose
Battery operated

Specifications:

Capacity: 25 gal
Pump Output: 1.8 GPM / 60 PSI
Power Supply: 12 volt, gator clip hookup
Tank Construction: Corrosion Resistant Poly
