The NEW IMER Masonry 1000

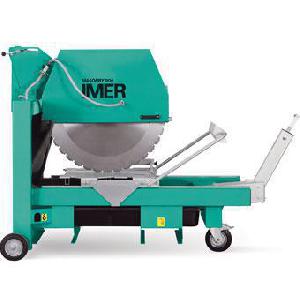

imer masonry 900 the beast 36 inch saw

Blade Sold Separately

The Masonry 1000 is made to cut through most field and quarry stone. It also has the ability to work with all types of precast products. With a 10 h.p. enclosed chain drive motor making cuts up to 15 inch in depth is possible. Load up the Masonry 1000 with stone or precast pieces weighing hundreds of pounds this saw can take it


The wheelkit and the well engineered balance of the saw allow it to be rolled around by one person. The Beast is also easily handled by a forklift as lift slots are welded into a frame.


The cutting tray system is 1/4 inch thick high grade steel and includes a progressive crank feed system cuts are made safely and accurately


The 10 hp enclosed chain drive motor has the necessary torque required to cut through tough stones


Plunge cuts are smooth and precise as the cutting head pivots on a case hardened axle


The box steel grame is very rigid yet light for a saw of this size. Proven design techniques combined with high quality steel makes for one powerful and buffed Beast!

Specifications Masonry 1000 The Beast
Blade dia / Arbor shaft dia 36 inch / 2-1/3 inch (60mm)
Max cutting lenght with plunge cut 26 inch (32 inch)
Max cutting depth 15 inch
Motor rating 10 hp, 440 v, 3 ph
Blade speed 910 rpm
Weight (palletized) 700 (750) lbs
Water pan capacity 12 gal
Self priming centrifugal pump flow 3 gpm
Lenght 84 inch (82 inch)
Height 44 inch (44 inch)
Width 74 inch (70 inch)


The NEW IMER Masonry 1000 - Replaces the Masonry 900
1188552 Masonry 1000 *  The Beast  -  39" Stone/Rock Saw w/ blade &10hp  380/440v 3 Phase, 32" cut includes plunge

*Includes stand and blade

Mfg. item #: 1188552
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
Call for Price
