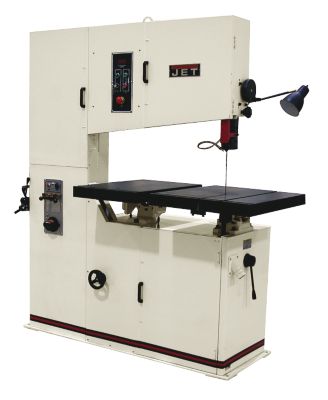

JET VBS-3612 Vertical Bandsaws

414470 Manual

 The Jet 36" Vertical Bandsaw, 2HP, 230/460V, 3Ph
has a 2 Year warranty

  • Heavy-duty bandsaw can handle large production pieces on its extra large, twin table work surface
  • Three wheel system for cutting wide pieces
  • Solid, weighted base
  • Two-speed transmission and variable speed allow for wide range of blade speeds
  • Blade welder, grinder and cutter
  • Workpiece guide
  • Worklamp
  • Chip blower
  • 1/4 x 14/18VT Bi-metal blade
  • Blade and tire cleaning brush
  • Rip fence
  • Twin worktables
Detailed Specifications
Part Number 414470
Blade Length (in.) 195-1/4" 198-1/4
Blade Size (in.) 197
Blade Speeds (SFPM) Low 50  410, High 550 5,000
Blade Width (Min-Max/ in.) 1/8 - 1
Brand Jet
Cutting Capacity Height (in.) 12
Height 84 inch
Length 67 inch
Model Number VBS-3612
Motor 3HP, 230/460V, 3Ph, Prewired 230V
Net Weight 1760 pound
Overall Dimensions 69 x 32 x 78
Table Height at 90 Degrees (in.) 40
Table Size (in.) 23-5/8 x 27-1/2 and 17-3/4 x 27-1/2
Table Tilt (deg.) 10 L, 45 R
Throat Depth (in.) 36
Width 34.5 inch
s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
OPTIONAL EQUIPMENT FOR JET® 36" VERTICAL BANDSAW
5674030 Replacement Blade for JET® 36" Vertical Bandsaw- 14R x 1/4" x .025" x 197" - Carbon
