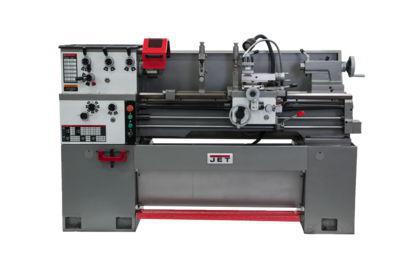

JET 3HP GH-1440W Geared Head Lathe




*** GH-1440W-1, GEARED HEAD LATHE         jet 2 year warranty logo



The Heavyweight answer to all your shops needs

Weighing over one ton, The GH1440 Geared Head Engine Lathe is engineered to produce expert pieces in the toughest shop environments. Equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, the GH1440 delivers the ultimate working durability.

DURABILITY

  • V-way bed design is induction hardened and ground
  • Splined, not keyed, shafts are utilized
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Independent leadscrew and feed rod
  • Adjustable gibs are incorporated in the carriage and slideway

SAFETY

  • Safety on/off switch
  • Emergency stop within easy reach of the operator
  • Patent pending electronic chuck key docking station, provides operator safety as lathe will not run without the chuck key being docked
  • Chuck guard
  • Foot brake

EASE OF USE

  • Gearbox provides larger threading and feed capabilities with no gear changes
  • Spindle actuation control is apron mounted
  • Gap bed section provided for larger diameter work
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Front removable chip tray
  • Spindle jog button for easy gear engagement and spindle inching
  • Coolant system
  • Full length splash guard

TARGET MARKETS

  • Maintenance / Machine Shops: Plant Maintenance, Tool and Die, Job Shops, Welding Shops, Shipyard Repair and Home Shops
  • Automotive / Racing: Automotive Repair, Racing Teams and Custom Motor Sports
  • Government / Tech Schools: Technical Schools, Military Bases, High Schools and Defense Manufacturing

STANDARD EQUIPMENT

  • 6 inch 3-Jaw Chuck
  • 8 inch 4-Jaw Chuck
  • 12 inch Face Plate
  • Steady and Follow Rest
  • Metric Change Gears
  • Lead Screw Cover
  • LED Work Lamp
  • Steady and Follow Rest
  • Micro Carriage Stop
  • Chuck Guard
  • Patent Pending fitted top mat
  • Metric change gear
  • Centers with headstock center sleeve
  • Threading dial

GH-1440W-1, Geared Head Lathe
has a 2 Year warranty

  • 1-1/2" bore spindle supported by precision tapered bearings
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Splined, not keyed, shafts are utilized
  • Gearbox provides larger threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Tolerance test certificate included
  • Heavy duty stand
  • 6" 3 jaw direct mount chuck with top reversing jaws
  • 8" 4-jaw independent chuck
  • 12" face plate
  • Four-way tool post
  • Steady and follow rest
  • Micro-carriage bed stop
  • Front removable chip tray
  • Spindle jog button
  • Foot brake
  • Coolant system with splash guard
  • Metric Change Gears
  • Halogen Work Lamp
Detailed Specifications
Part number 321830
Size 14 x 40
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8-1/4
Swing Through Gap (In.) 20
Length of Gap (In.) 9-3/8
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 40 - 1,800
Number of Longitudinal and Cross Feed Rates 40
Range of Longitudinal Feeds (IPR) .0011 - .0271
Range of Cross Feeds (IPR) .0003 - .0103
Number of Inch Threads 40
Range of Inch Threads (TPI) 4 - 112
Number of Metric Threads 22
Range of Metric Threads .45 - 7.5
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 3-1/2
Cross Slide Travel (In.) 6-3/8
Carriage Travel (In.) 37-1/2
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/4
Steady Rest Capacity (In.) 3-3/2
Width of Bed (In.) 10-1/4
Motor (HP) 3 HP, 230V, 1Ph
Weight (Lbs.) 2,081
Drive Geared Head
Overall Dimensions (L x W x H) (In.) 78 x 38 x 59
Style (Type) Engine - Geared Head
Height 58.0000
Length 77.5000
Weight 2295.0000
Width 30.0000




GH-1440W-3, Geared Head Lathe
has a 2 Year warranty

  • 1-1/2" bore spindle supported by precision tapered bearings
  • Hardened and ground gears are featured in the headstock and gearbox
  • Hardened and ground gears are featured in the headstock and gearbox
  • Headstock is constantly oiled during operation
  • Splined, not keyed, shafts are utilized
  • Gearbox provides larger threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for larger diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Inch-metric dials are standard
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Tolerance test certificate included
  • Heavy duty stand
  • 6" 3 jaw direct mount chuck with top reversing jaws
  • 8" 4-jaw independent chuck
  • 12" face plate
  • Four-way tool post
  • Steady and follow rest
  • Steady and follow rest
  • Front removable chip tray
  • Spindle jog button
  • Foot brake
  • Coolant system with splash guard
  • Metric Change Gears
  • Halogen Work Lamp
Detailed Specifications
Part number 321840
Size 14 x 40
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8-1/4
Swing Through Gap (In.) 20
Length of Gap (In.) 9-3/8
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 40 - 1,800
Number of Longitudinal and Cross Feed Rates 40
Range of Longitudinal Feeds (IPR) .0011 - .0271
Range of Cross Feeds (IPR) .0003 - .0103
Number of Inch Threads 40
Range of Inch Threads (TPI) 4 - 112
Number of Metric Threads 22
Range of Metric Threads .45 - 7.5
Max Tool Size (In.) 5/8 x 5/8
Compound Slide Travel (In.) 3-1/2
Cross Slide Travel (In.) 6-3/8
Carriage Travel (In.) 37-1/2
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Follow Rest Capacity (In.) 2-3/4
Steady Rest Capacity (In.) 3-1/2
Width of Bed (In.) 10-1/2
Motor (HP) 3 HP, 230/460V, 3Ph
Prewired (V.) 230
Weight (Lbs.) 2,191
Drive Geared Head
Overall Dimensions (L x W x H) (In.) 78 x 38 x 59
Style (Type) Engine - Geared Head
Height 55.5000
Length 77.2500
Weight 2344.0000
Width 29.7500



Standard Equipment

Tolerance test certificate included
Heavy-duty Stand
6" 3-jaw direct mount scroll chuck with top reversing jaws
8" 4-jaw independent chuck
12" face plate
Four-way tool post
Steady and follow rest
Micro-carriage bed stop
Front removable chip tray
Spindle jog button
Foot brake
Coolant system with splash guard
Metric change gears
Halogen work lamp
Centers and headstock center sleeve
jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



22 Piece turning tool kit for 13" & 14" JET Lathes - 660200
  • Complete 22 piece set
  • Compatible with 13" & 14" W Series Lathes
  • Compatible with 13" & 14" Bench Series Lathes
  • -Set consists of the following:
  • 3/8"x 6" double end boring bar
  • 1/2"x9" double end boring bar
  • 5/8" x 10" double end boring bar
  • 4 Hex keys
  • Adjustable Turning tool holder
  • HSS Knurling tool with three pairs of knurls
  • MT3 half dead center
  • MT3 carbide tipped dead center
  • MT3 heavy duty live center
  • 2 pcs. 3/16"x1-1/2" round tool bits
  • 2pcs 3/16"x2" HSS square tool bits
  • 2pcs 1/4"x2" HSS square tool bits
  • 2pcs 5/16"x2-1/2" HSS square tool bit
  • 1 pc 3/8"x2-1/2" HSS square tool bit
  • 1pc 3/32" x 1/2" x 3-1/2" HSS (P) cuttoff blade

JET 14 inch GEARED HEAD ENGINE LATHES
322830 GH-1440W-1, Geared Head Lathe
322840 GH-1440W-3, Geared Head Lathe
JET 14 inch GEARED HEAD ENGINE LATHE PACKAGES
323371 GH-1440W-1 With Taper Attachment
323372 GH-1440W-1 With Collet Closer
323373 GH-1440W-1 With Taper Attachment and Collet Closer
323401 GH-1440W-3 With Taper Attachment
323400 GH-1440W-3 With Collet Closer
323402 GH-1440-3  Lathe with Taper Attachment  and Collet Closer
JET 14 inch GEARED HEAD ENGINE LATHES WITH ACU-RITE DRO
323374 GH-1440W-1 With ACU-RITE 200S DRO
323375 GH-1440W-1 With ACU-RITE 200S DRO With Taper Attachment
323376 GH-1440W-1 With ACU-RITE 200S DRO With Collet Closer
323377 GH-1440W-1 With ACU-RITE 200S DRO With Taper Attachment and Collet Closer
323403 GH-1440W-3 With ACU-RITE 200S DRO
323405 GH-1440W-3 With ACU-RITE 200S DRO With Taper Attachment
323404 GH-1440W-3 With ACU-RITE 200S DRO With Collet Closer
323408 GH-1440W-3 With ACU-RITE 200S DRO With Taper Attachment and Collet Closer
JET 14 inch GEARED HEAD ENGINE LATHES WITH NEWALL DRO
323382 GH-1440W-1 With Newall DP700 DRO
323384 GH-1440W-1 With Newall DP700 DRO With Taper Attachment
323383 GH-1440W-1 With Newall DP700 DRO With Collet Closer
323385 GH-1440W-1 With Newall DP700 DRO With Taper Attachment and Collet Closer
323411 GH-1440W-3 With Newall DP700 DRO
323413 GH-1440W-3 With Newall DP700 DRO With Taper Attachment
323412 GH-1440W-3 With Newall DP700 DRO With Collet Closer
323414 GH-1440W-3 With Newall DP700 DRO With Taper Attachment and Collet Closer
JET TAPER ATTACHMENTS
321520 TAK-GHW, Taper Attachment for All W Lathe Models
987000009 Voltage Change Labor Charge
JET COLLET CLOSERS
321519 CC-GHW, Collet Closer for All W Lathe Models
JET TURNING TOOLING KITS
660200 22 Piece Turning Tool Kit For 13 and 14" Lathes
5C COLLET SETS
650016 Premium 35 Piece 5-C Collet Set With Rack (1/32nd)



More Informationshow more
322830
>> GH-1440-1, GEARED HEAD LATHE
Mfg. item #: 322830
WMH322830
lease to own for as little as:$232 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$11,968.99

5
More Informationshow more
322840
>> GH-1440-3, GEARED HEAD LATHE
Mfg. item #: 322840
WMH322840
lease to own for as little as:$232 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$11,968.99

5
More Informationshow more
323371
>> GH-1440-1 WITH TAPER ATTACHMENT
Mfg. item #: 323371
WMH323371
lease to own for as little as:$258 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$13,319.00

5
More Informationshow more
323372
>> GH-1440-1 WITH COLLET CLOSER
Mfg. item #: 323372
WMH323372
lease to own for as little as:$258 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$13,319.00

5
More Informationshow more
323373
>> GH-1440-1 WITH TAPER ATTACHMENT AND COLLET CLOSER
Mfg. item #: 323373
WMH323373
lease to own for as little as:$286 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$14,759.00

5
More Informationshow more
323401
>> GH-1440-3 WITH TAPER ATTACHMENT
Mfg. item #: 323401
WMH323401
lease to own for as little as:$257 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$13,199.00

5
More Informationshow more
323400
>> GH-1440-3 WITH COLLET CLOSER
Mfg. item #: 323400
WMH323400
lease to own for as little as:$257 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$13,199.00

5
More Informationshow more
323402
>> GH-1440-3 LATHE WITH TAPER ATTACHMENT & COLLET CLOSER
Mfg. item #: 323402
WMH323402
lease to own for as little as:$286 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$14,759.00

5
More Informationshow more
323374
>> GH-1440-1 WITH ACU-RITE 203 DRO
Mfg. item #: 323374
WMH323374
lease to own for as little as:$284 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$14,759.00

5
More Informationshow more
323375
>> GH-1440-1 WITH ACU-RITE 203 DRO WITH TAPER ATTACHMENT
Mfg. item #: 323375
WMH323375
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323376
>> GH-1440-1 WITH ACU-RITE 203 DRO WITH COLLET CLOSER
Mfg. item #: 323376
WMH323376
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323377
>> GH-1440-1 WITH ACU-RITE 203 DRO WITH TAPER ATTACHMENT AND COLLET CLOSER
Mfg. item #: 323377
WMH323377
lease to own for as little as:$339 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$17,639.00

5
More Informationshow more
323403
>> GH-1440-3 WITH ACU-RITE 203 DRO
Mfg. item #: 323403
WMH323403
lease to own for as little as:$284 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$14,759.00

5
More Informationshow more
323405
>> GH-1440-3 WITH ACU-RITE 203 DRO WITH TAPER ATTACHMENT
Mfg. item #: 323405
WMH323405
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323404
>> GH-1440-3 WITH ACU-RITE 203 DRO WITH COLLET CLOSER
Mfg. item #: 323404
WMH323404
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323408
>> GH-1440-3 WITH ACU-RITE 203 DRO WITH TAPER ATTACHMENT AND COLLET CLOSER
Mfg. item #: 323408
WMH323408
lease to own for as little as:$339 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$17,639.00

5
More Informationshow more
323382
>> GH-1440-1 WITH NEWALL DP700 DRO
Mfg. item #: 323382
WMH323382
lease to own for as little as:$284 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$14,759.00

5
More Informationshow more
323384
>> GH-1440-1 WITH NEWALL DP700 DRO WITH TAPER ATTACHMENT
Mfg. item #: 323384
WMH323384
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323383
>> GH-1440-1 WITH NEWALL DP700 DRO WITH COLLET CLOSER
Mfg. item #: 323383
WMH323383
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323385
>> GH-1440-1 WITH NEWALL DP700 DRO WITH TAPER ATTACHMENT AND COLLET CLOSER
Mfg. item #: 323385
WMH323385
lease to own for as little as:$339 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$17,639.00

5
More Informationshow more
323411
>> GH-1440-3 WITH NEWALL DP700 DRO
Mfg. item #: 323411
WMH323411
lease to own for as little as:$284 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$14,759.00

5
More Informationshow more
323413
>> GH-1440-3 WITH NEWALL DP700 DRO WITH TAPER ATTACHMENT
Mfg. item #: 323413
WMH323413
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323412
>> GH-1440-3 WITH NEWALL DP700 DRO WITH COLLET CLOSER
Mfg. item #: 323412
WMH323412
lease to own for as little as:$309 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$16,199.00

5
More Informationshow more
323414
>> GH-1440-3 WITH NEWALL DP700 DRO WITH TAPER ATTACHMENT AND COLLET CLOSER
Mfg. item #: 323414
WMH323414
lease to own for as little as:$339 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
NEW ITEM
$17,639.00

5
More Informationshow more
321520
Mfg. item #: 321520
WMH321520
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$1,777.80

5
More Informationshow more
987000009
Mfg. item #: 987000009
WMH987000009
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$364.47

5
More Informationshow more
321519
Mfg. item #: 321519
WMH321519
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$1,385.20

5
More Informationshow more
660200
Mfg. item #: 660200
WMH660200
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$236.90

5
More Informationshow more
650016
Mfg. item #: 650016
WMH650016
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$501.58

5
Copyright © 2018 Smith-Hamilton, Inc
0.018 180920 08:26
