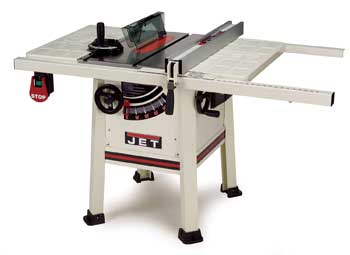

JET 708480K JPS-10TS 10" Proshop Saw

The new JET ProShop Table Saw is driven by 1 3/4 HP motor, features a fully enclosed cabinet for highly effcient dust collection and a built-in arbor lock. Also, included is the new ProShop fence system for precise cutting results and added versatility. Available with either sheet metal or cast iron table extension wings.

  • EXCLUSIVE 30" ProShop fence system with T-square design
  • Integrated arbor lock allows for quick, safe and easy blade changes
  • Heavy-duty cast iron table with T-style miter slot provides large flat work surface and increased cross cut capacity
  • Enclosed cabinet with EXCLUSIVE leg stand design for easy assembly
  • 4" dust port for increased dust collection efficiency
  • Rigid, left tilting cast iron trunnion
  • Powder coated paint for a long-lasting, chip-resistant finish
  • Steel extension wings for added workpiece support
  • 10" Blade included

Features

  • Industrial paddle style switch
  • Heavy-duty steel stand
  • Arbor lock
  • Exclusive ProShop fence
  • Steel extension wings
  • EXCLUSIVE 30" ProShop fence system with T-square design
  • Integrated arbor lock allows for quick, safe and easy blade changes
  • Heavy-duty cast iron table with T-style miter slot provides large flat work surface and increased cross cut capacity
  • Enclosed cabinet with EXCLUSIVE leg stand design for easy assembly
  • 4" Dust port for increased dust collection efficiency
  • Rigid, left tilting cast iron trunnion
  • Power coated painted for a long lasting, chip resistant finish
  • Steel extension wings for added workpiece support
10" ProShop Table Saw
Blade Diameter 10 "
Arbor Diameter 5/8 "
Arbor Speed 3600 RPM
Maximum Depth of Cut 3 1/8 "
Maximum Depth of Cut at 45 Degrees 2 1/8 "
Maximum Cross Cut 21 "
Maximum Rip Right of Blade 30 " or 50"
Maximum Rip Left of Blade 12 "
Table in Front of Saw Blade at Maximum Depth of Cut 10½ "
Maximum Width of Dado 13/16 "
Maximum Diameter of Dado 8 "
Table Type Cast Iron
Table Height 34¾ "
Table Size with Standard Extension (L x W) 27 x 44 "
Table Size without Extension (L x W) 20 x 27 "
Rapid Wing Extension n.a.
Table Size without Wings (L x W) 20 x 27 "
Dust Port Outside Diameter 4 "
Dust Collection Minimum CFM Required 350 cu.ft/min
Dust Collection Adapter Port n.a.
Leg Stand with Steel Storage n.a.
Miter Gauge Type Deluxe
Motor Power 1¾ HP
Motor Voltage 115 / 230 V
Prewired Voltage 115 V
Motor Current 15 / 7.5A
Motor Phase 1 Ph
Family Description 10" PROSHOP TABLE SAW
Model Number JPS-10XL30SW
Brand Jet
Overall Dimensions 39 x 35 x 60
Height 39 inch
Width 35 inch
Length 60 inch / 82 inch
Net Weight 285 pound
10" Pro SHop 10" Table Saw
708480K JPS-10, 10" ProShop 1.75HP 1PH 115/230V, 30" Fence System, Steel Wing
708481K JPS-10, 10" ProShop 1.75HP 1PH 115/230V, 52" Fence System, Steel Wing
708482K JPS-10, 10" ProShop 1.75HP 1PH 115/230V, 30" Fence System, Cast Wing
708483K JPS-10, 10" ProShop 1.75HP 1PH 115/230V, 52" Fence System, Cast Wing
708480K
Mfg. item #: 708480K
WMH708480K
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$999.99

4266
708481K
Mfg. item #: 708481K
WMH708481K
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$1,199.99

4266
708482K
Mfg. item #: 708482K
WMH708482K
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$1,099.99

4266
708483K
Mfg. item #: 708483K
WMH708483K
Southern Tool Limited Time Special - FREE FREIGHT On this Item.75
$1,399.99

4266
