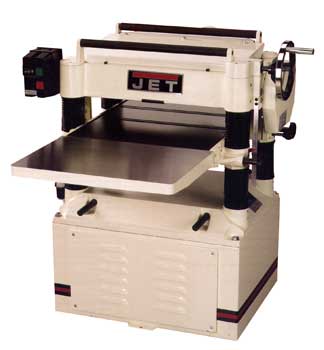

JET JWP-208HH-1 20" HH Planer

This new 20" planer with helical style insert cutter head provides an unmatched surface finish and a much quieter cut. The indeable 4 sided carbide inserts make blade changes easier then ever before. This machine also features a 5HP motor and solid cast iron infeed and outfeed tables.

Features

  • Heavy-Duty closed steel stand
  • Solid cast iron table extension
  • Industrial magnetic controls
  • Helical cutterhead
  • Return rollers
  • Height adjustment handwheel
  • Helical insert cutterhead with staggered carbide inserts for a superior finish and quieter cut
  • Heavy duty cast iron and steel construction for added strength and durability
  • Two speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
  • Large, cast iron, precision ground table for precise workpiece support
  • Powerful 5 HP TEFC induction motor with three V-belt transmission for smooth and consistent power
  • Sets of three steel infeed and outfeed rollers to help in the prevention of snipe
  • Large handwheel with positive gear drive allows for quick and accurate table adjustments
  • Solid cast iron infeed and outfeed extension tables
SPECIFICATIONS
Stock number 708544
Model number JWP-208HH-1
Net weight (lbs) 765
Maximum planing width (in) 14-7/8
Maximum planing thickness (in) 6
Maximum full width depth of cut (in) 1/8
Minimum planing length (in) 8
Cutterhead diameter (in) 2 7/8
Cutterhead speed (RPM) 5000
Feed rate (FPM) 16 and 20
Number of knives 92 carbide inserts
Dust port diameter (OD/in) 5
Dust Collection minimum CFM 400
Amps 18
Motor HP 5
Motor Ph 1
Motor Voltage 230V
There is no further information.
There are no listed accessories.
More Informationshow more
708544
Mfg. item #: 708544
WMH708544
lease to own for as little as:$72 per month!
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$3,599.99
