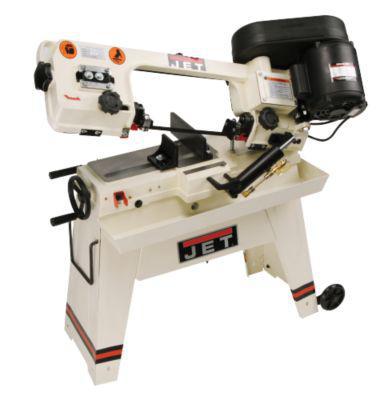

Jet J-3130 & J-3230 5 x 8 HORIZONTAL DRY


/store/cms//12/3a8ee_414461_main.jpeg s-h alt

At a glance
Specifications
Warranty
Accessories

The Jet J-3230 5 X 8 HORIZONAL BANDSAW WET 1/2 HP, 115V, 1Ph
has a 2 Year warranty

Adjustable hydraulic feed system
Adjustable ball bearing guides
Heat treated steel worm gear and bronze driver gear
Automatic shut off at end of cut
Handles and wheels for convenient moving to various work stations
Eccentric shaft and ball bearing guides
Standard Equipment:
1 gallon capacity coolant system with hose, flexible nozzle, shut off valve, tank and baffle
1/2" Carbon steel blade
Adjustable material stop

Detailed Specifications
Part Number	414453
Base/ 3 Legs Area Required (in.)	37 x 16 x 37
Bed Height (in.)	23-1/2
Blade Length (in.)	68-1/2
Blade Size (in.)	1/2 X .025 X 68-1/2
Blade Speeds (SFPM)	85, 125, 200
Brand	Jet
Height	0 inch
Length	0 inch
Model Number	J-3230
Motor	1/2 HP, 115V 1 Ph, 1725 RPM
Net Weight	160 pound
Overall Dimensions	37 X 16 X 37
Rectangle at 45 (in.)	4-1/2 X 5
Rectangle at 90 Degrees (in.)	7-1/2 X 5
Round at 45 Degrees (in.)	4-1/2
Round at 90 Degrees (in.)	5
Square at 90 Degrees (in.)	5
Web Description	J-3230 5 X 8 HORIZONAL BANDSAW WET 1/2 HP, 115V, 1Ph
Width	0 inch

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JetÂ® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

There are no listed accessories.

Compare

J-3230, 5 X 8 HORIZONTAL BANDSAW WITH COOLANT, MADE IN TAIWAN, SHIPS VIA LTL TRUCK FREIGHT & WEIGHT = 165 LBS

Mfg. item #: 414453

WMH414453

FREE expedited shipping Plus FREE residential, liftgate and call ahead service. ⁴

$1,546.80
