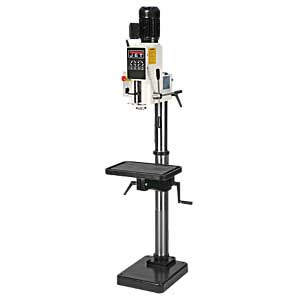

The Jet J-A2608-2 20"GEAR HEAD DRILL PRESS 220V 3PH

Helical gears for smooth quiet operatioin
Quick release drill ejector
Safety latch to prevent head dropping when unclampt
Eight spindle speeds
T-Slotted table wit coolant through
Head and table rotate 360 degrees around column
2 position, High/Low switch
3-15/16" Column diameter
English/Metric depth gage

There are no further details.

Detailed Specifications
Part Number	354028
Base Dimensions (LxWxH/ in.)	24 x 22
Brand	Jet
Column Diameter (in.)	3-15/16
Distance Base to Spindle (in.)	44
Drilling Capacity Cast Iron (in.)	1-3/8
Drilling Capacity Mild Steel (in.)	1-1/4
Drills to Center of Circle (in)	20
Height	30 inch
Length	66 inch
Max Distance - Spindle to Table (in)	35-5/8
Max Distance Spindle to Table ( in.)	35-5/8
Model Number	J-A2608-2
Motor	1 - 1-1/2HP, 220V, 3Ph
Net Weight	475 pound
Number of Spindle speeds	8
Overall Dimensions	24 x 22 x 72
Part Number	354028
Quill Diameter (in.)	2-3/8
Quill Feed	Manual
Quill Travel (in.)	5-1/8
Range of Spindle Speeds (RPM)	Low-130, 260, 420, 840; High-535, 1070, 1745, 3480
Spindle Distance to Base (in.)	44
Spindle Distance to Table (max./in.)	35-5/8
Spindle Taper	MT-3
Spindle Travel (in.)	5-1/8
T-Slots Number and Size (in.)	2 x 9/16
Table Dimensions	15-3/4 x 19-3/4
Table Size (in.)	15-3/4 x 19-3/4
Table Travel (in.)	24-1/2
Tapping Capacity Cast Iron (in.)	5/8
Tapping Capacity Mild Steel (in.)	1/2
Vertical Movement of Drill Head	8-5/8
Vertical Movement of Table (in.)	24-1/2
Web Description	J-A2608-2 20"GEAR HEAD DRILL PRESS 220V 3PH
Width	22 inch
Work Table Weight Capacity (lbs.)	350

WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JetÂ® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

There are no listed accessories.
