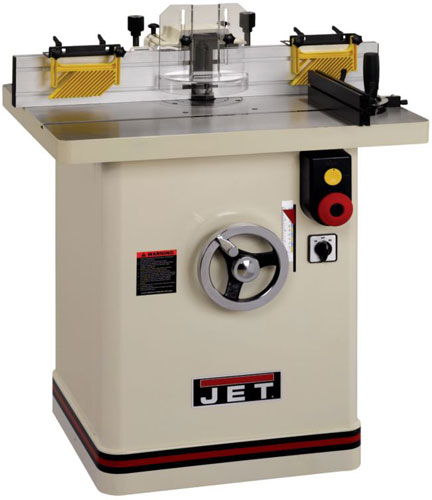

Jet JWS-35X5-1 Industrial Shaper 5HP, 1P
Features:
-
Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter
diameters
-
Powerful 5HP, 1Ph motor with magnetic controls
-
Large 26-3/4" X 32-1/4" precision ground cast iron table provides a durable work area, predrilled for power
feeder
-
Poly-V-belt transfers maximum power to the spindle
-
Starting Pins for irregular shaping
-
Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
-
Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
-
Reversible spindle speeds for diverse shaping jobs
-
4" Dust port built into fence for convenient hookup to any dust collection system
-
Spindle lock for safe and easy cutter set-up
-
Spindle height scale
|
Specifications
|
|
Model Number
|
JWS-35X5-1
|
|
Part Number
|
708326
|
|
Spindle Speed
|
4000, 6000, 8000 and 10,000 RPM
|
|
Reversable
|
Yes
|
|
Spindle Diameter
|
3/4 "
|
|
Spindle Size Under Nut
|
4 "
|
|
Spindle Travel
|
4
|
|
Tilting Spindle
|
n.a.
|
|
Table Size
|
26 3/4 x 32 1/4 "
|
|
Table Height From Floor
|
33.25 "
|
|
Table Opening Diameter
|
7¼ "
|
|
Table Insert Opening Diameter
|
2 5/8 and 4 7/8 "
|
|
Fence Size (L x H)
|
4 3/4 x 16 "
|
|
Fence Travel (Major and Minor)
|
4 and 1 "
|
|
Slide Table Size (L x W)
|
n.a.
|
|
Table Travel
|
n.a.
|
|
Table Inserts
|
2
|
|
Maximum Diameter Cutter Below Table
|
6 "
|
|
Maximum Diameter Cutter Above Table
|
7½ "
|
|
Router Bit Collet Diameter
|
1/4 and 1/2 " (optional)
|
|
Dust Port Outside Diameter
|
4 "
|
|
Dust Collection Minimum CFM Required
|
400 cu.ft/min
|
|
Electrical Controls - Magnetic Starter
|
Yes
|
|
Digital Readouts
|
n.a.
|
|
Motor Power
|
5 HP
|
|
Motor Voltage
|
230 V
|
|
Prewired Voltage
|
230 V
|
|
Motor Current
|
17 A
|
|
Motor Phase
|
1 Ph
|
|
Height
|
41 inch
|
|
Width
|
40 inch
|
|
Length
|
30 inch
|
|
Net Weight
|
473 pound
|
|
Accessories
|
|
Part #
|
Description
|
|
708314
|
1" Spindle for JET JWS-35X Shaper
|
|
708317
|
3/4" Spindle for JET 35X Shaper
|
|
708328
|
1-1/4" Spindle for JET JWS-35X Shaper
|
|
708372
|
30mm Spindle for JET 35X Shaper
|
|
708373
|
1/4" Collet Set for JWS-35X Shaper
|
|
708374
|
1/2" Collet Set for JWS-35X Shaper
|
|
708381
|
1/2" Spindle for JET 35X Shaper
|
