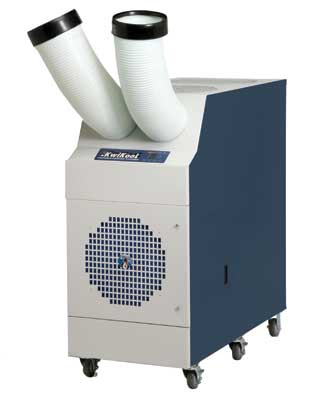

Kwikool SAC4221

Air Cooled Strategic Air Center

s-h alt

s-h alt



SPECIFICATIONS
COOLING CAPACITY
BTU/hr @ 95°F at 60% RH 42,000  (3.5 Ton)
COMPRESSOR DATA
Compressor Type Hermetic Recip.
Operating Temperatures 60°F-110°F 50% RH

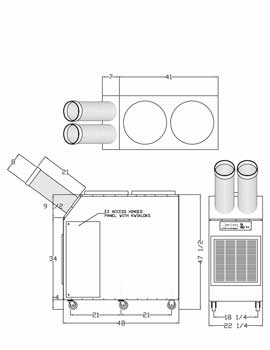

DIMENSIONAL DATA
Width (Inches) 22.25"
Depth (Inches) 48"
Height (Inches) 47.5"
Weight ( Pounds) 426
Shipping Weight (Pounds) 466
FAN DATA
  EVAPORATOR  CONDENSER
Fan Type
(Centrifugal) 		Direct Drive Belt Drive
Air Flow
(CFM) 		1400/3 2100
Supply Air Chute Data 2-8" x 21" n/a
Supply Air Chute Max. Length 25' n/a
Condenser Hose Data n/a 2 - 18"x 8'
Condenser Hose Max. Length n/a 25'
Motor HP 1/2 2
SAFETY DEVICE DATA
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze-up Constant Pressure/Fan
Control
High Pressure Manual
Low Pressure Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Digital Microprocessor
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes
ELECTRICAL DATA
Power Supply (Volts) 208/230-1Ø
Current Consumption (Amps) 37.2/33.75
Power Consumption (KW) 6.5
Circuit Breaker Size  (Amps) 40
Min/Max Voltage 195-225/210-250
Power Cord Gauge/Length 10AWG/10'
Plug Configuration Field Supplied



Click Here To Download Printer Friendly Specification Chart

SAC4221
42,000 BTUS 3.5-TON 230V/40 AMP AIR
Mfg. item #: SAC4221
KWISAC4221
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

4372
SAC4221-C
AIR-COOLED , SAC4221 , CEILING KIT
Mfg. item #: SAC4221-C
KWISAC4221-C
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

4839
DCR-18
DCR-18; 18-INCH FLANGE
Mfg. item #: DCR-18
KWIDCR-18
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

639
