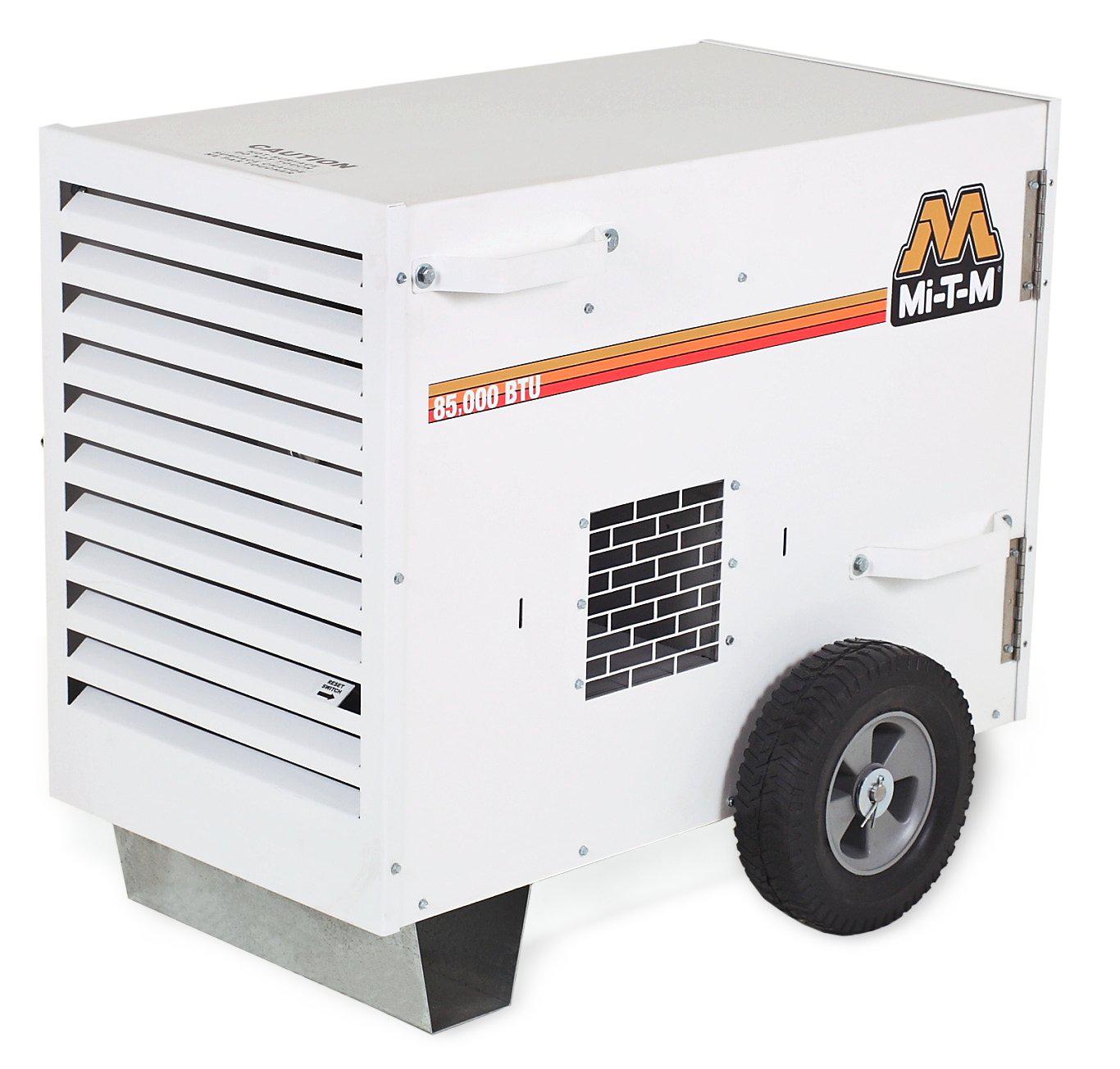

Mi-T-M Elite Series Portable Heater

Mi-T-M introduces the new Elite Series directional heaters. Available in propane and natural gas, these ductable heaters are great for large or small area applications. With remote temperature control and ducting options, these models provide worry-free heating or air circulation for a wide range of environments.

The Elite Series features independent fan and burner controls for simple operation, two 10-inch solid rubber wheels for mobility and easy placement, and lifting handles for easy loading and unloading.

Outer Casing/Design:

  • Rugged design
  • Durable powder coated outer casing and side lifting handles
  • Lifting handles for easy loading and unloading
  • The unit is naturally balance to lift easily with handles
  • Two 10-inch solid rubber tires for mobility and easy placement

Components:

  • Independent fan and burner controls for simple operation
  • Thermostat control with 20-foot cord allows for a consistent, comfortable environment and use in remote locations
  • 15-foot hose and regulator assembly
  • Air flow safety devices
  • Totally enclosed frame
  • Fully enclosed electronics
  • Electronic ignition
  • Operates as both a fresh air circulator or a heater at the touch of a switch
  • Super quiet, super efficient
  • Easy to set-up
  • Numerous duct options available
  • Direct spark ignition

For use in tent and party applications or construction sites.

Specifications subjet to change without notice. Use in accordance with any and all state or local codes, regulations, and/or ordinances.

Please see heater Owners Manual included with each heater for a complete list of important safety information.

Important Notes:

  • Not for use in residential living areas or inadequately ventilated areas.
  • Proper ventilation required during operation.
  • Extremely hot during operation. Keep children, animals and all combustible objects away from heater

Warranty

  • 1 year limited

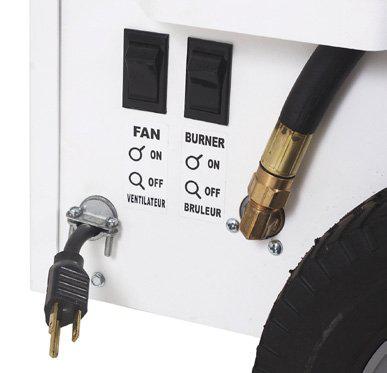

Independent fan and burner controls for simple operation

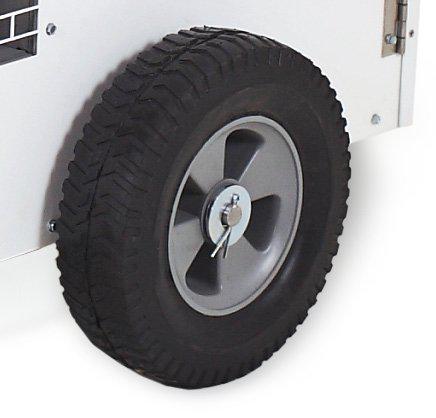

Two 10-inch solid rubber wheels for
mobility and easy placement

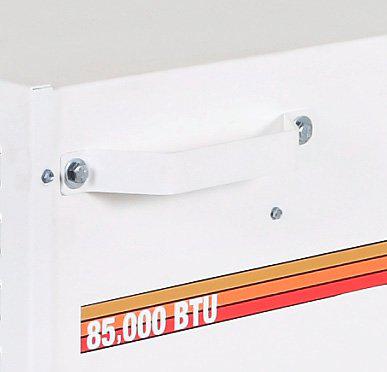

Lifting handles for easy loading and
unloading

Specifications
Model Number MH-0085-0MDH MH-0175-0MDH MH-0355-0MDH
Heat Output 85,000 BTU 175,000 BTU 355,000 BTU
Type Propane Propane Propane / Natural Gas
Heated Air Output 750 CFM 1,200 CFM 2,450 CFM
Fuel Consumption 4.25 lbs./hr. 8.75 lbs./hr. 16.2 lbs./hr. / 350 cu. ft. hr.
Inlet Gas Pressure 11-inch WC 11-inch WC 11-inch WC-propane / 8.5-inch WC-nat. gas
Temperature Rise (above ambient) 140 degree F 140 degree F 190 degree F-propane
170 degree F-nat. gas
Suggested Tank Size 100 lbs. 100 lbs. 200 lbs.
Electrical Requirements 115V, 60Hz, 1ph 115V, 60Hz, 1ph 115V, 60Hz, 1ph
Amps (Starting/Cont.) 8.2/2.3 amps 8.4/3.6 Amps 28/11 Amps
Dimensions (LxWxH) 30in.x16in.x22in. 30.62in.x18.25in.x31.12in. 46in.x32.5in.x42in.
Ship Wt. 135 lbs. 193 lbs. 350 lbs.
Net Wt. 122 lbs. 164 lbs. 317 lbs.

Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations and/or ordinances.
Please see heater "Owner's Manual" included with each heater for a complete list of important safety information. These specifications are estimates only.
*Heater is a dual-fuel model - uses propane or natural gas.
^Natural gas regulator is required to run heater on natural gas (Part #68-5009). Available as an accessory.

ACCESSORIES
Part Number Description Fits Models
68-5001 12-inch duct adapter - Connects ducting to heater MH-0085 & MH-0175
68-5002 Duct diffuser - Distributes heat from ducting MH-0085 & MH-0175
68-5003 Heat diffuser - Distributes heat from unit MH-0175
68-5004 Heat diffuser - Distributes heat from unit MH-0085
68-5005 12-foot x 12-inch white flexible air ducting - Ducting directs heat where you need it MH-0085 & MH-0175
68-5006 12-foot x 18-inch white flexible air ducting - Ducting directs heat where you need it MH-0355
68-5007 18-inch duct adapter - Connects ducting to heater MH-0355
68-5008 Thermostat kit (replacement only) - Adjusts temperature All models
68-5009 Natural gas regulator - Regulates gas supply pressures between 1/2 and 5 lbs. of pressure MH-0355
68-5010 Two cylinder manifold - Connects any two propane cylinders All models
68-5012 Duct diffuser - Distributes heat from ducting MH-0355

MH-0085-0MDH
PROPANE DIRECTIONAL
Mfg. item #: MH-0085-0MDH
MTMMH-0085-0MDH
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
MH-0175-0MDH
PROPANE DIRECTIONAL
Mfg. item #: MH-0175-0MDH
MTMMH-0175-0MDH
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
MH-0355-0MDH
PROPANE/NATURAL GAS DIRECTIONAL
Mfg. item #: MH-0355-0MDH
MTMMH-0355-0MDH
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5001
DUCT ADAPTER
Mfg. item #: 68-5001
MTM68-5001
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5002
DUCT DIFFUSER
Mfg. item #: 68-5002
MTM68-5002
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5003
HEAT DIFFUSER
Mfg. item #: 68-5003
MTM68-5003
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5004
HEAT DIFFUSER
Mfg. item #: 68-5004
MTM68-5004
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5005
AIR DUCTING
Mfg. item #: 68-5005
MTM68-5005
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5006
AIR DUCTING
Mfg. item #: 68-5006
MTM68-5006
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5007
DUCT ADAPTER
Mfg. item #: 68-5007
MTM68-5007
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5008
THERMOSTAT KIT
Mfg. item #: 68-5008
MTM68-5008
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5009
NATURAL GAS REGULATOR
Mfg. item #: 68-5009
MTM68-5009
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
68-5010
MANIFOLD - 2 CYLINDER
Mfg. item #: 68-5010
MTM68-5010
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

62
68-5012
DUCT DIFFUSER
Mfg. item #: 68-5012
MTM68-5012
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

482
