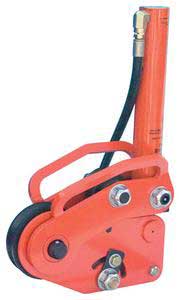

JB7090 Rebar Bender
This portable rebar bender was designed by a contractor and allows you to bend steel in place even in tight areas.
Ideal for standard hook or off-set (dog leg) bends. Straightens rebar from less than 30 degrees
Versatile design cannot be trapped against a wall or obstruction. Bending wheel is easily removed without tools
Costs for couplers, joint welds and inspection delays are greatly minimized
Saves time by allowing the removal of column forms prior to bending rebar
Bends #7 7/8-inch (22 mm) rebar to an ACI approved radius and ideal for general purpose bending with up to #8 1-inch (25 mm) rebar
**All JB Series Rebar Benders require a seperately purchased drive motor to function. See JPU1 below.
Applications
90° Standard Hook
180° Cane Hook
Stirrup and Tie Hook
Seismic Stirrup and Tie Hook
Offset Bends
Straightening
UNIT SPECIFICATIONS | |
---|---|
Model | JB7090 |
Max. Bending Angle | 90 |
Max. Rebar Size | #6, #7, #8 |
Min. Bending Angle* | 8 in |
Min. Bar Spacing on Center | 3 |
ACI Approved Max. Bending Angle** | 90 |
ACI Approved Max. Rebar Size | #7 |
DIMENSIONS & WEIGHTS | |
---|---|
Overall Length | 21.5 in |
Overall Width | 12.5 in |
Overall Height | 5.5 in |
Shipping Dimensions | 24 x 13 x 5.5 in |
Operating Weight | 58 lb |
Shipping Weight | 74 lb |
Accessories
Two bending wheels
10-foot hose with coupler
Click Here To Download The Manual
JPU1 - Pump
