MultiQuip QP4TZ Diesel Powered Trash Pum

Picture 2

s-h alt

At a Glance
Details
Specifications
More Information
Accessories

Multiquip Trash Pumps are engineered to meet the requirements of professional contractors. Rugged and dependable, they are ideal for dewatering applications with high solid content. Sticks, stones and debris easily pass through the pump, minimizing downtime due to clogging. Easy Cleanout.

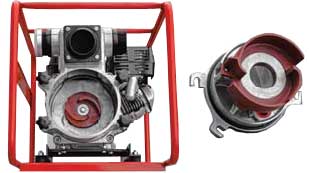

We've got the largest possible cleanout cover; only four hand
knobs need to be turned to remove the cover. No special
tools are required. No need to disconnect suction hoses or
pipes.

Easy Maintenance
The volute has a replaceable stainless steel wear plate
and is attached to the cleanout cover by two stainless steel
screws, minimizing corrosion. The two-vane impeller can be
easily removed from the engine shaft, exposing the seal for
removal or inspection. Durability and simplicity set MQ Trash
Pumps in a class by themselves.

There are no further details.

Model QP4TZ Diesel Powered Trash Pumps

Suction x Discharge in. (mm)

Max. Capacity GPM (lpm)

Max. Lift ft. (m)

Max Head ft. (m)

Max Pressure psi (kPa)

Max Solids
in. (mm)

Engine

HP (kW)

Operating RPM

Oil Alarm

Fuel Capacity Qt. (L)

Fuel Consumption Rate gal/hr. (l/hr)

Starting Method

Wheel Kit (option)

Dimensions Skid Mount
L x W x H in. (mm)

Dry Weight
lb (kg)

4x4
(100x100)

526
(2000)

25
(7.6)

85
(26)

36.8
(253)

2
(51)

Subaru/
Hatz 1B40

9.9
(7.4)

3,600

N/A

5.2
(5)

0.67
(2.5)

Elect./
Recoil

UWK2

30.1x27.3x30.7
(765x695x780)

265
(120)

There is no further information.

There are no listed accessories.
