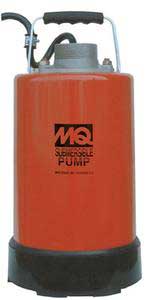

MultiQuip ST2038P Submersible Dewatering

Most submersible pumps will leave 1-2 inches (25-50 mm) of water as a minimum draw, this can be impractical when faced with a large surface area to pump out. The ST2038P has the ability to draw water down to 1/16 of an inch (2 mm).

  • Automatic thermo-overload protection

  • UL/CSA approved

  • Maximum flow of 60 gallons (227 liters) per minute

  • Weighs 31 pounds (14 kg)

  • 1-hp motor

  • Maximum head of 38 feet (11.5 meters)

  • Double mechanical oil-filled seal for reliability

There are no further details.
ELECTRICAL SPECIFICATIONS
Power 1 HP
Phase Single
Voltage 120 V
Starting Amperage 56 A
Running Amperage 8 A
Cable Length 50 ft
ENGINE SPECIFICATIONS
Engine Make/Model Deutz F3L914-52
Start Method Electric
Engine Power 52 HP
Engine RPM 1800
Fuel Type Diesel
UNIT SPECIFICATIONS
Impeller Type Neoprene Rubber over Cast-Iron
Impeller Disc Size 2 in
Total Head 38 ft
Water Capacity 60 gpm
DIMENSIONS & WEIGHTS
Pump Diameter 7.7 in
Overall Height 15.4 in
Operating Weight 31 lb
There are no listed accessories.
multiquip/st-2038p_sm.gif
ST2038P
PUMP-SUB 2 1HP 115V 60GPM 1
Mfg. item #: ST2038P
MULST2038P
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.11
$467.82
