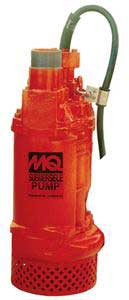

MultiQuip ST4125 Submersible Dewatering

This 4-inch (100 mm) pump is a heavy-duty submersible ideal for removing water from confined areas and it provides numerous advantages over engine-driven trash pumps where high water lift is necessary. Designed with a 4-inch NPT threaded discharge port.

  • Top flow of 464 gallons (1,756 liters) per minute

  • Driven by a 10-hp 3-phase motor

  • Optional float switches and control boxes for maximum performance

  • Cast iron ductile impeller

  • Weighs 330 pounds (150 kg)

There are no further details.
UNIT SPECIFICATIONS
Impeller Type Cast-Ductile-Iron
Impeller Disc Size 4 in
Total Head 125 ft
Water Capacity 464 gpm
ELECTRICAL SPECIFICATIONS
Power 10 HP
Phase Three
Voltage  V
Starting Amperage 0 A
Running Amperage 0 A
Cable Length 50 ft
DIMENSIONS & WEIGHTS
Pump Diameter 14.2 in
Overall Height 32.7 in
Operating Weight 330 lb
There are no listed accessories.
multiquip/ST-4125D_sm.gif
ST4125D
4, 10HP, 230/460V, 360 GPM, 111 HEA** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #: ST4125D
MULST4125D
Ships for $0 to most commercial or terminal locations in 48 States 1007
Call for Price

194
A400A
COUPLER TYPE A 4 MALE Q/D X FEMALE NPT
Mfg. item #: A400A
MULA400A
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$66.00

56
4 QUICK DISCONNECT FOR PUMP ** CALL 800-458-3687 FOR CURRENT PRICING & AVAILABILITY
Mfg. item #:
MULC400C
Free shipping to most locations in lower 48 states.22
$99.90

194
HS420
HOSE SUCTION 4X 20 FT NPT THRD.
Mfg. item #: HS420
MULHS420
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$275.75

56
HS425
HOSE SUCTION 4X 25 FT NPT THRD.
Mfg. item #: HS425
MULHS425
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$322.59

56
HSQ420
HOSE SUCTION 4X 20 FT QUICK COUPLER
Mfg. item #: HSQ420
MULHSQ420
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$295.39

56
HSQ425
HOSE SUCTION 4X 25 FT QUICK COUPLER
Mfg. item #: HSQ425
MULHSQ425
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$346.76

56
HD450
Mfg. item #: HD450
MULHD450
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$192.64

56
HDQ450
Mfg. item #: HDQ450
MULHDQ450
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$260.64

56
