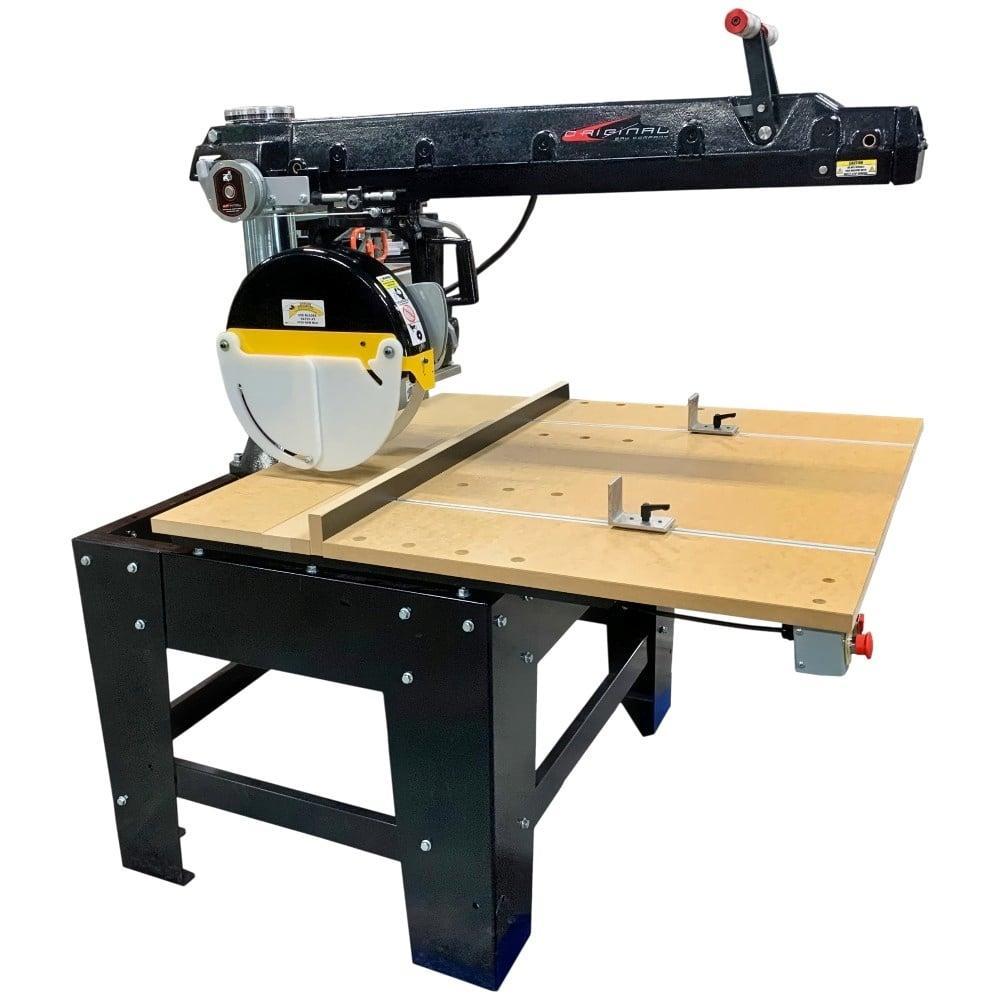

Original Saw Super Duty Radial Arm Saws



Wood Cutting Series

321521 Manual

16 inch / 20 inch Super Duty Series

The Super Duty Series is the ultimate workhorse of the industry, capable of operating 2 to 3 shifts per day,and able to do a wide variety of cutoff and dado operations. These massive 850-pound machines are constructed of cast and ductile iron for vibration free operation.

This unit is capable of cutting off 7 inch thick material in a single pass. The entire Super Duty Series is better than ever with its improved finish, more durable powder coated castings and heavy steel frame. This machine coupled with our power carriage feed accessories make the machine a semi-automatic platform capable of a wide variety of production cutoff and dado operations.

Optional Equipment:

  • Electronic power feed
  • Pneumatic clamping system
  • Roller extension tables
  • S-series measuring system
  • Dust collection shroud

Series Specific Highlights:

  • 5 hp 1 phase 220 volt motor on 16 inch models cat# 3551 and 3556
  • 7.5 hp 3 phase motors on the 16 inch models cat# 3571, 3576; 20 inch models 3553, 3558; and 22 inch models cat# 3554, 3559
  • Automatic blade braking system
  • Carriage return spring
  • Adjustable cross cut stop
  • Standard lower elevation on front of frame
  • 24 inch crosscut on Medium arm machines (cat# 3551, 3571, 3553, 3554)
  • 32 inch crosscut on Long arm machines (cat# 3556, 3576, 3558, 3559)
  • Base column lock on all Super Duty models
  • Precision carriage riding on 8 wide contact double row ball bearings, providing a very smooth vibrations free travel.
  • Oversized MDF table top
  • Powder coated heavy gage steel frame and legs
  • Standard work table height 33 inch
  • Arbor nut and precision ground blade collars
  • Wrench kit (includes allen arbor wrench, flat arbor wrench and misc allen wrenches)
16 inch - 22 inch Super Duty Series
  16 inch SUPER DUTY 20 inch SUPER DUTY
MODEL
Arm
Medium
Long
Medium
Long
Medium
Long
Blade and Guard Size (in)
16
16
16
16
20
20
MOTOR: ALL MOTORS TOTALLY ENCLOSED FAN COOLED
HP
5
5
7-1/2
7-1/2
7-1/2
7-1/2
Phase
1
1
3
3
3
3
Hertz
60
60
50/60
50/60
50/60
50/60
Volts*
230
230
230/460
230/460
230/460
230/460
Brake
Auto
Auto
Auto
Auto
Auto
Auto
Arbor (in)
1 x 3-1/8
1 x 3-1/8
1 x 3-1/8
1 x 3-1/8
1 x 3-1/8
1 x 3-1/8
CAPACITIES
Maximum Out-Rip (in)
40-3/4
40-3/4
40-3/4
40-3/4
40-3/4
40-3/4
Maximum Cross Cut 1 inch Stock (in)
24
32
24
32
24
32
Maximum Miter 45 degree 1 inch Stock (in)
16
21-5/8
16
21-5/8
16
21-5/8
Maximum Depth of Cut
4-3/8
4-3/8
4-3/8
4-3/8
6-1/4
6-1/4
Maximum Depth of Cut 45 degree at bevel
2
2
2
2
3-1/4
3-1/4



Click here for additional information on Original Saw Accessories


Accessoreis

Original Saw Accessories
Carriage feed systems Electronic and Manual
040005-00 Electronic Power Cross feed (metal & wood applications all ratios)
040005-08 Electronic Power Cross feed (Horizontal Panel Saw only all ratios)
040006-00 Electronic Power Cross Feed (plc controlled Light Bar actuated)
40021 Chain Carriage Cross feed 44 in ARM (Manual)
40022 Chain Carriage Cross feed 52 in ARM (Manual)

Dust Shrouds
040042-00 Dust Shroud (mounts at rear of frame behind blade)
040042-21 Dust Shroud 3600 Series beam saws (mounts inside frame)

Clamping systems pneumatic
900500-00 Pneumatic Clamping System (2 Cylinder front only)
900500-01 Pneumatic Clamping System (4 Cylinders front and over fence)
900500-02 Pneumatic Clamping System (overarm clamp & front pushing cylinders)
  for cutting and clamping multiple pieces of material at one time
900500-03 Pneumatic Clamping System Overarm (4 cylinder) with full
900502-05 Pneumatic Clamping system for 3600 Series beam saws
  4 cylinders pressing down non adj,  2 squaring against fence

Metal Cutting Accessories
30401 Mist Coolant System Manual (Trico Mistmatic)
030423-00 Limit switch (for Trico System to make it automatic)
030405-00 Mist Coolant System Automatic Original Saw System

Saw Blades Wood Cutting
T2008 12 in x 36 tooth x 1 in carbide 0 degree hook
T2008-01 12 in x 60 tooth x 1 in carbide
T2009 14 in x 40 tooth x 1 in carbide
T2009-02 14 in x 60 tooth x 1 in carbide
T2010 16 in x 40 tooth x 1 in carbide
T2010-01 16 in x 60 tooth x 1 in carbide
T2011 20 in x 60 tooth x 1 in carbide
T2016-03 22.5 in x 60 tooth x 1 in carbide -5 degree hook wood cutting

Saw Blades - Metal Cutting
T1613 16 in x100 tooth x 1 in carbide  non-ferrous cutting
T1614 16 in x 300 tooth x 1 in HSS ferrous cutting
T2013 20 in x 120 tooth x 1 in carbide non ferrous cutting
T2012 20 in x 300 tooth x 1 in HSS ferrous cutting
T2016-02 22.5 in x 120 tooth x 1 in carbide non ferrous cutting

Guard Kit , replacement
35012 12 in complete (upper and lower) 3512 series ty 1-4
35014 14 in complete guard kit  (new style with rings )
35016 16 in complete guard kit (new style with links)
35020 20 in complete guard kit
96716 12 in lower guard kit (guard rings, retainers, and screws)
96797 14 in lower guard kit (guard rings, retainers and screws)
96806 16 in lower guard kit ( link sets with screw and washers)
96676 20 in lower guard kit ( link sets with screw and washers)



Radial Arm Saw Roller Tables & Tape Measures
OS Series material handling tables
040030-01 Roller Table Extension w/ 1 adjustable leg and 8 rollers (12 in centers)
Zinc plated steel rollers
040030-02 Roller Table Extension w/ 1 adjustable leg and 15 rollers (6 in centers)
Zinc plated steel rollers
040031-01 Roller Table Extension w/ 1 adjustable leg and 8 rollers (12 in centers)
Orange urethane coated rollers (for non marring applications)
040031-02 Roller Table Extension w/ adjustable legs and 15 rollers (6 in centers)
Orange urethane coated rollers (for non marring applications)
040032-01 Extension Table 4 foot (formed steel) w/ 1 adjustable leg (21.5 in wide)
040039-00 Machine Stand (for use with miter saws )
040033-01 Extension Table (for machine stand) 4 x 12.75 in
w/ 1 adjustable leg and mounting bracket to bolt to machine stand
040033-03 Extension Table (for machine stand) 8 x 12.75 in
w/ 1 adjustable leg and mounting bracket to bolt to machine stand
040029-00 OS Series adjustable leg  (leg only) 24 in wide
040029-02 OS Series adjustable let  (leg only) 12.75 in wide
084156-04 OS Series Bracket, mounting ext tables and roller tables
For Original Saw Contractor Duty series
084156-06 OS Series Brkt mounting ext tables and roller tables
For Original Saw Heavy Duty series
084156-12 OS Series Brkt  mounting ext tables and roller tables
For Original Saw Super Duty / Metal Cutting Series

Measuring Scale
900705-00 4 foot left side mounting R-L reading
900705-02 4 foot right side mounting L-R reading
900705-01 8 foot left side mounting R-L reading
900705-03 8 foot right side mounting L-R reading
900705-05 16 foot left side mounting R-L reading
900705-07 16 foot right side mounting L-R reading
900705-09 24 ft left side mounting R-L reading
900705-11 24 ft right side mounting L-R reading
900705-13 32 ft left side mounting R-L reading
900705-15 32 ft right side mounting L-R reading



3551
16 RADIAL ARM SAW SD SERIES 5HP 1 PHASE 24 CROSSCUT ** TRUCK SHIPPING WEIGHT OF: 925 LBS
STILL MANUFACTURED AND ASSEMBLED IN THE USA
Mfg. item #: 3551
ORG3551
lease to own for as little as:$184 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,179.52

51
3556
16 RADIAL ARM SAW SD SERIES 5HP 1 PHASE 32 CROSSCUT ** TRUCK SHIPPING WEIGHT OF: 960 LBS
STILL MANUFACTURED AND ASSEMBLED IN THE USA
Mfg. item #: 3556
ORG3556
lease to own for as little as:$184 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,223.68

51
3571
16 RADIAL ARM SAW SD SERIES 7.5HP 3 PHASE 24 CROSSCUT ** TRUCK SHIPPING WEIGHT OF: 925 LBS
STILL MANUFACTURED AND ASSEMBLED IN THE USA
Mfg. item #: 3571
ORG3571
lease to own for as little as:$175 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$8,726.40

51
3576
16 RADIAL ARM SAW SD SERIES 7.5HP 3 PHASE 32 CROSSCUT ** TRUCK SHIPPING WEIGHT OF: 960 LBS
STILL MANUFACTURED AND ASSEMBLED IN THE USA
Mfg. item #: 3576
ORG3576
lease to own for as little as:$183 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,171.84

51
3553
20 RADIAL ARM SAW SD SERIES 7.5HP 3 PHASE 23 CROSSCUT ** TRUCK SHIPPING WEIGHT OF: 925 LBS
STILL MANUFACTURED AND ASSEMBLED IN THE USA
Mfg. item #: 3553
ORG3553
lease to own for as little as:$185 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,233.28

51
3558
20 RADIAL ARM SAW SD SERIES 7.5HP 3 PHASE 31 CROSSCUT ** TRUCK SHIPPING WEIGHT OF: 960 LBS
STILL MANUFACTURED AND ASSEMBLED IN THE USA
Mfg. item #: 3558
ORG3558
lease to own for as little as:$191 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$9,543.36

51
040005-00
Mfg. item #: 040005-00
ORG040005-00
lease to own for as little as:$94 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$4,716.73

51
040005-08
Mfg. item #: 040005-08
ORG040005-08
lease to own for as little as:$94 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$4,717.20

51
040006-00
Mfg. item #: 040006-00
ORG040006-00
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
40021
Mfg. item #: 40021
ORG40021
FREE shipping when ordered with a machine from this manufacturer.20
$410.71

51
40022
Mfg. item #: 40022
ORG40022
FREE shipping when ordered with a machine from this manufacturer.20
$429.85

51
040042-00
Mfg. item #: 040042-00
ORG040042-00
FREE shipping when ordered with a machine from this manufacturer.20
$135.20

51
040042-21
Mfg. item #: 040042-21
ORG040042-21
FREE shipping when ordered with a machine from this manufacturer.20
$375.00

51
900500-00
Mfg. item #: 900500-00
ORG900500-00
FREE shipping when ordered with a machine from this manufacturer.20
$1,654.28

51
900500-01
Mfg. item #: 900500-01
ORG900500-01
FREE shipping when ordered with a machine from this manufacturer.20
$2,221.44

51
900500-02
Mfg. item #: 900500-02
ORG900500-02
FREE shipping when ordered with a machine from this manufacturer.20
$2,247.29

51
900500-03
Mfg. item #: 900500-03
ORG900500-03
FREE shipping when ordered with a machine from this manufacturer.20
$1,974.12

51
900502-05
Mfg. item #: 900502-05
ORG900502-05
lease to own for as little as:$59 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$2,930.88

51
30401
Mfg. item #: 30401
ORG30401
FREE shipping when ordered with a machine from this manufacturer.20
$878.88

51
030423-00
Mfg. item #: 030423-00
ORG030423-00
FREE shipping when ordered with a machine from this manufacturer.20
$349.49

51
030405-00
Mfg. item #: 030405-00
ORG030405-00
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

1053
T2008
Mfg. item #: T2008
ORGT2008
Call for freight quote on this item or we will confirm freight charges before shipping.1
$168.37

51
T2008-01
Mfg. item #: T2008-01
ORGT2008-01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$188.04

51
T2009
Mfg. item #: T2009
ORGT2009
Call for freight quote on this item or we will confirm freight charges before shipping.1
$210.42

51
T2009-02
Mfg. item #: T2009-02
ORGT2009-02
Call for freight quote on this item or we will confirm freight charges before shipping.1
$219.05

51
T2010
Mfg. item #: T2010
ORGT2010
Call for freight quote on this item or we will confirm freight charges before shipping.1
$221.00

51
T2010-01
Mfg. item #: T2010-01
ORGT2010-01
Call for freight quote on this item or we will confirm freight charges before shipping.1
$260.87

51
T2011
Mfg. item #: T2011
ORGT2011
Call for freight quote on this item or we will confirm freight charges before shipping.1
$324.49

51
T2016-03
Mfg. item #: T2016-03
ORGT2016-03
Call for freight quote on this item or we will confirm freight charges before shipping.1
$466.00

51
T1613
Mfg. item #: T1613
ORGT1613
Call for freight quote on this item or we will confirm freight charges before shipping.1
$348.89

51
T1614
Mfg. item #: T1614
ORGT1614
Call for freight quote on this item or we will confirm freight charges before shipping.1
$266.33

51
T2013
Mfg. item #: T2013
ORGT2013
Call for freight quote on this item or we will confirm freight charges before shipping.1
$500.00

51
T2012
Mfg. item #: T2012
ORGT2012
Call for freight quote on this item or we will confirm freight charges before shipping.1
$502.73

51
T2016-02
Mfg. item #: T2016-02
ORGT2016-02
Call for freight quote on this item or we will confirm freight charges before shipping.1
$508.00

51
35012
Mfg. item #: 35012
ORG35012
FREE shipping when ordered with a machine from this manufacturer.20
$257.65

51
35014
Mfg. item #: 35014
ORG35014
FREE shipping when ordered with a machine from this manufacturer.20
$442.60

51
35016
Mfg. item #: 35016
ORG35016
FREE shipping when ordered with a machine from this manufacturer.20
$477.04

51
35020
Mfg. item #: 35020
ORG35020
FREE shipping when ordered with a machine from this manufacturer.20
$519.73

51
96716
Mfg. item #: 96716
ORG96716
FREE shipping when ordered with a machine from this manufacturer.20
$90.56

51
96797
Mfg. item #: 96797
ORG96797
FREE shipping when ordered with a machine from this manufacturer.20
$108.42

51
96806
Mfg. item #: 96806
ORG96806
FREE shipping when ordered with a machine from this manufacturer.20
$99.49

51
96676
Mfg. item #: 96676
ORG96676
FREE shipping when ordered with a machine from this manufacturer.20
$109.69

51
040030-01
Mfg. item #: 040030-01
ORG040030-01
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040030-02
Mfg. item #: 040030-02
ORG040030-02
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040031-01
Mfg. item #: 040031-01
ORG040031-01
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040031-02
Mfg. item #: 040031-02
ORG040031-02
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040032-01
Mfg. item #: 040032-01
ORG040032-01
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040039-00
Mfg. item #: 040039-00
ORG040039-00
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040033-01
Mfg. item #: 040033-01
ORG040033-01
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040033-03
Mfg. item #: 040033-03
ORG040033-03
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
040029-00
Mfg. item #: 040029-00
ORG040029-00
FREE shipping when ordered with a machine from this manufacturer.20
$136.25

51
040029-02
Mfg. item #: 040029-02
ORG040029-02
FREE shipping when ordered with a machine from this manufacturer.20
$132.50

51
084156-04
Mfg. item #: 084156-04
ORG084156-04
FREE shipping when ordered with a machine from this manufacturer.20
$19.00

1063
084156-06
Mfg. item #: 084156-06
ORG084156-06
FREE shipping when ordered with a machine from this manufacturer.20
$29.00

51
084156-12
Mfg. item #: 084156-12
ORG084156-12
FREE shipping when ordered with a machine from this manufacturer.20
$39.00

51
900705-00
Mfg. item #: 900705-00
ORG900705-00
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-02
Mfg. item #: 900705-02
ORG900705-02
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-01
Mfg. item #: 900705-01
ORG900705-01
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-03
Mfg. item #: 900705-03
ORG900705-03
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-05
Mfg. item #: 900705-05
ORG900705-05
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-07
Mfg. item #: 900705-07
ORG900705-07
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-09
Mfg. item #: 900705-09
ORG900705-09
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-11
Mfg. item #: 900705-11
ORG900705-11
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-13
Mfg. item #: 900705-13
ORG900705-13
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
900705-15
Mfg. item #: 900705-15
ORG900705-15
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

366
Copyright © 2017 Smith-Hamilton, Inc
0.039 171120 08:02
