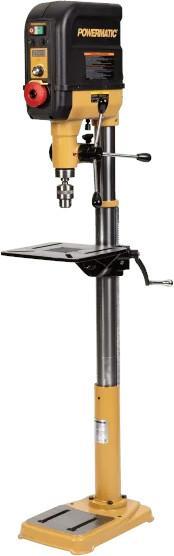

NEW - Powermatic PM2800B VS Drill Press

 PM2800B Drill Press, 1HP 1PH 115/230V PM2820EVS Drill Press, 1HP 1PH 120V
PM2800B Drill Press, 1HP 1PH 115/230V PM2820EVS Drill Press, 1HP 1PH 120V

s-h alt

PM2800B Drill Press, 1HP 1PH 115/230V has a 5 Year warranty


  • Mechanical variable speed allows for full range of speed with no belt change
  • 6 inch of quill travel with one revolution of the handle
  • Fence system is adjustable for a perfect 90 degree angle to the table
  • Adjustable material stop makes repetitive actions accurate and quick
  • A digital RPM readout allows user to optimize the spindle speed to
  • the application
  • Laser guides provide an accurate indication for tool point entry
  • Easy to use keyless chuck makes bit changes faster
  • Reversible handles can be mounted on either side of the machine for more
  • comfortable working of the quill
  • Two independent LED work lights eliminate shadows
  • Work table can be rotated to a full 90 degree position
  • Replaceable square table insert with leveling screws make it flush with
  • the top of the table
  • Oversize cast iron base for added stability
  • Safety key prevents accidental starting
Model Number PM2800B
Stock Number 1792800B
Swing (In.) 18
Spindle Travel (In.) 6
Spindle Speed Range (RPM) 250-3000
Number of Spindle Speeds Variable
Spindle Taper MT-2/JT-3
Spindle Distance to Table (Max.) (In.) 27-3/8
Spindle Distance to Base 46-1/4
Table Size (L x W) (In.) 20 x 14
Table Tilt (Deg.) 0 to 90
Fence Size (L x H) (In.) 19-13/16 x 2-11/16
Drilling Capacity (In.) 5/8
Chuck Distance to Base (In.) 43-13/32
Chuck Distance to Table (In.) 24-1/2
Chuck Size (In.) 5/8
Column Diameter (In.) 3-1/8
Base Size (In.) 13-3/8 x 20
Motor Power (HP) 1
Motor Phase  1
Motor Voltage (V) 115/230
Prewired Voltage (V) 115
Motor Current (Amps) 15/7.5
Weight (Lbs.) 246


PM2820EVS Drill Press, 1HP 1PH 120V has a 5 Year warranty


  • Gear driven power transfers torque consistently and efficiently for a wide range of materials.
  • The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM.
  • Highly visible digital readout gives users control.
  • Designed for a range of materials and applications.
  • Standing on an oversized cast base for outstanding stability for the 20 inch swing.
  • Handles can be reversed for left or right sided operation.
  • The large cast table adjusts to a range of positions and tilts to a full ninety degree position.
  • Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces.
  • Includes Powermatic’s patented integrated depth stop for efficient drilling.
  • For unbeatable accuracy, the laser cross hairs provide precise tool point indication.
Part Number 1792820
Model PM2820
Style (Type) Floor
Swing (In.) 20
Spindle Travel (In.)
Number of Spindle Speeds 2 Variable
Spindle Taper MT2
Spindle Speed (RPM) 150 - 3600
Spindle Distance to Table (Max.) (In.) 23
Spindle Distance to Base 45
Table Size (L x W) (In.) 20-1/2 x 15-1/2
Table Size Fully Extended (L x W) (In.) 20-1/2 x 15-1/2
Table Tilt (Deg.) 90 L/R
Fence Size (L x H) (In.) 19-3/4 x 2-5/8
Chuck Distance to Base (In.) 41-1/4
Chuck Distance to Table (In.) 19-1/4
Chuck Size (In.) 5/8
Column Diameter (In.) 3-3/8
Base Size (In.) 22-3/4 x 16-3/8 x 2-3/4
Motor Power (HP)
Motor Phase Single
Motor Voltage (V.) 120
Prewired Voltage (V.) 115
Height 19.6900
Length 55.5100
Weight 412.6000
Width 30.9000



WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.


PM2800B DRILL PRESS, 1HP 1PH 115/230V
Mfg. item #: 1792800B
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4

Mfg. item #: 1792820
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
