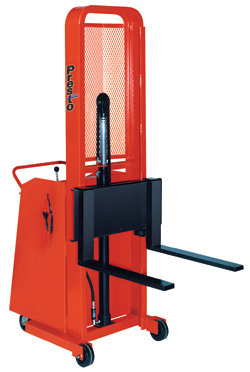

Presto Counterweight Stackers

For applications where straddle legs won't work, such as racks with bottom bars or loading/unloading trucks, Presto Counterweight Stackers and PowerStak Counterweight Stackers are the ideal solution. A unique "stacking ballast" design can be configured for capacities as low as 200 lbs. and up to 1,000 lbs.

Features

  • 1100 lb capacity
  • 15" load center
  • Not for use with pallets or loads greater than 30" in depth
  • 62" lifting height
  • "Belly Bump" auto-reverse switch
  • Fully powered drive with 24VDC 100W drive motor
  • Two 12V 120 amp/hr batteries
  • 110V 15 amp built-in charger
  • 1" thick x 3" wide forks
  • Forks adjust from 6.3" to 23.6" O.D.
PPS Series Counterweight -
15" Load Center - 30" Forks
SPECIFICATIONS
Model Number PPS1100-62-CB
Load Capacity 1100 lbs
Raised Height 62"
Lowered Height 1-1/2"
Dimensions HxWxL 62" x 32" x 77-1/4"
Wheel Dia. Front 6-1/4"
Shipping Weight 1699 lbs

Features:

  • 62" or 74" lift heights
  • 13" or 15" load centers
  • Adjustable fork width
  • Solid steel forks
  • Heavy-duty 12 volt deep cycle battery
  • Quick connect battery (no tools required)
  • Custom micro processor charger
  • High visibility battery discharge indicator
  • 5" per second lifting speed
  • Leaf type chain with 8,250 lbs. yield point
  • High impact phenolic wheels
SPECIFICATIONS
Model
Number
Load
Capacity
Raised
Height
Lowered
Height
Dimensions
HxWxL
Wheel Dia.
Front / Rear
Shipping
Weight
CW Series - Adjustable 25" Forks - 13" Load Center
C62A-200 200 lbs 62" 1" 80"x27"x36" 5" / 5" 750 lbs
C62A-400 400 lbs 62" 1" 80"x27"x36" 5" / 5" 900 lbs
C62A-600 600 lbs 62" 1" 80"x27"x36" 5" / 5" 1000 lbs
C62A-800 800 lbs 62" 1" 80"x27"x36" 5" / 5" 1100 lbs
C62A-1000 1000 lbs 62" 1" 80"x27"x36" 5" / 5" 1200 lbs
C74A-200 200 lbs 74" 1" 92"x27"x36" 5" / 5" 775 lbs
C74A-400 400 lbs 74" 1" 92"x27"x36" 5" / 5" 925 lbs
C74A-600 600 lbs 74" 1" 92"x27"x36" 5" / 5" 1025 lbs
C74A-800 800 lbs 74" 1" 92"x27"x36" 5" / 5" 1125 lbs
C74A-1000 1000 lbs 74" 1" 92"x27"x36" 5" / 5" 1225 lbs
CW Series - Adjustable 30" Forks - 15" Load Center
C62A-15 1000 lbs 62" 1" 80"x27"x41" 5" / 5" 1210 lbs
C74A-15 1000 lbs 74" 1" 92"x27"x41" 5" / 5" 1235 lbs
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
