Presto Electric Stackers

This rugged electric lift is ideal for congested and compat work areas. Perfect for all types of lifting or positioning work. Built to withstand the daily rigors of lifting heavy loads.

Features:

  • 1000 lb capacity
  • 18" load centers
  • Lifting heights - 52" through 130"
  • Fixed and telescopic masts
  • Stationary and portable units
  • Standard 1 HP 115/1/60 motor
  • 1" thick x 3" wide x 30" long adjustable solid steel forks
  • 12" high fork backs
  • Optional motors available

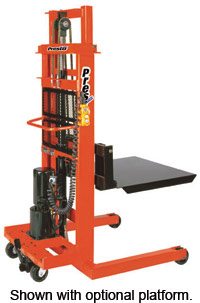

  • Optional slip-on 32" x 30" platform
  • Custom platforms
  • Leaf-type chains with 8250 lb yield point
  • 1500 lb and 2000 lb capacities available
  • Standard remote control with coil cord
  • Coil cord (4' retracted, 20' extended)
  • Heavy-duty floor lock
SPECIFICATIONS

Model
Number

Load
Capacity
Raised
Height
Lowered
Height
Dimensions
H x W x L
Wheel Dia.
Front / Rear
Shipping
Weight
EPF Series - Portable - 30" Forks - 18" Load Center
EPF752 1000 lbs 52" 5 ¼" 66"x32"x47" 5"/4" 445 lbs
EPF766 1000 lbs 66" 5 ¼" 80"x32"x47" 5"/4" 465 lbs
EPF778 1000 lbs 78" 5 ¼" 92"x32"x47" 5"/4" 485 lbs
ESF Series - Stationary - 30" Forks - 18" Load Center
ESF750 1000 lbs 50" 3 ¼" 64"x32"x45" N/A 425 lbs
ESF764 1000 lbs 64" 3 ¼" 78"x32"x45" N/A 445 lbs
ESF776 1000 lbs 76" 3 ¼" 90"x32"x45" N/A 465 lbs
ESF782 1000 lbs 82" 3 ¼" 96"x32"x45" N/A 475 lbs
ESF788 1000 lbs 88" 3 ¼" 102"x32"x45" N/A 485 lbs
ESF794 1000 lbs 94" 3 ¼" 108"x32"x45" N/A 565 lbs
ESF7106 1000 lbs 106" 3 ¼" 120"x32"x45" N/A 605 lbs
ESF7118 1000 lbs 118" 3 ¼" 132"x40"x45" N/A 635 lbs
EPFT Series - Portable - 30" Forks - 18" Load Center
EPFT796 1000 lbs 94" 5 ¼" 111"/66"x40x56" 5"/4" 640 lbs
EPFT7110 1000 lbs 110" 5 ¼" 133"/66"x40x56" 5"/4" 670 lbs
EPFT7130 1000 lbs 130" 5 ¼" 153"/93"x40x56" 5"/4" 732 lbs
There is no further information.
There are no listed accessories.
