Roll-In Saw HS1418 Swivel Bandsaw

EXCLUSIVE FROM SOUTHERN TOOL
FREE EXTRA BI-METAL BANDSAW BLADE OF YOUR CHOICE WITH PURCHASE OF SAW

Roll-In Saw HS1418 Combines High Capacity with Versatility

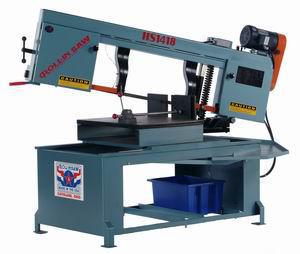

The durable horizontal HS1418 swivel band saw combines high capacity with durability.  A workhorse of a band saw, the HS1418 is built to give you years of reliable service.  HS1418 Horizontal Swivel Band Saw

Special Features

  • Blade cleaning brush
  • Automatic shutoff (safety magnetic starter)
  • Quick action vise (can be moved to either side)
  • Coolant System Informations-h alt
    - Coolant Pump: 3.5 gpm
    - Coolant Reservoir: 8 gallon with adjustable needle valve flow control
SPECIFICATIONS
Capacity
14" Round @ 90 Degrees, 14" Square @ 90 Degrees
12" Round @ 45 Degrees, 12" Square @ 45 Degrees
8" Round @ 60 Degrees 8" Square @ 60 Degrees
Swivel 60 Degrees both directions
Blade Size 1"Width x 13'10"Length .035 Thick (bi-metal)
Blade Guards Pulleys and blade

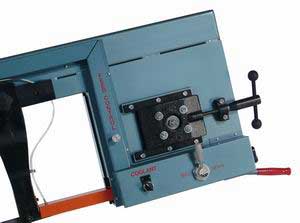

Guide Rollers for Blade Width - Adjustable cast iron guide arms
- Carbide Guide Inserts
Blade Speeds 70/140/270 sfpm
Table Precision ground 31 ½" x 25 ½"
Table Height 31" from floor
Feed Systems Hydraulic cylinder for controlled feeds
Wheels Cast iron
Motor 2 HP, 220/440V three-phase
Dimensions 48 ½"Width x 80"Height x 90"Length
Shipping Weight 1,500 lbs. F.O.B. Cleveland, Ohio



Models and Accessories
HS1418 14 X 18 inch HORIZONTAL MITER BANDSAW 220V, 3 PHASE
HS1418A 14 X 18 inch HORIZONTAL MITER BANDSAW 440V, 3 PHASE
901 5 Foot Conveyor Min 26.75 inch to Max 36.75 inch Height - Compatible Roll-In Saws EF1459, HM1212, HW1212, HS1418, JE1320, JM1220, DT1340 Capacity of 1300 LBS
902 10 Foot Conveyor Min 26.75 inch to Max 36.75 inch Height - Compatible Roll-In Saws EF1459, HM1212, HW1212, HS1418, JE1320, JM1220, DT1340 Capacity of 1301 LBS
903 5 Foot Conveyor Min 29 inch to Max 40 inch Height - Compatible Roll-In Saws TF1420 Capacity of 1302 LBS
904 10 Foot Conveyor Min 29 inch to Max 40 inch Height - Compatible Roll-In Saws TF1420 Capacity of 1303 LBS
1A132 CASTER SET - 4 PCS.





Roller Conveyor 5ft or 10ft

Summary: Coming in 5ft and 10ft lengths, the Roll-In Saw conveyor systems allow you to load long and heavy pieces of materials into any of our saws.

Compatible Saws: EF1459, JE1320, JM1220, DT1340, HM1212, HW1212, HS1418

ROLL-IN SAW HS1318 & HS1418
Horizontal Dual Swivel Band Saw
Replacement Parts List

Effective Feb 13, 2019

Please Give Machine Serial Number With Order
Minimum Charge $20.00      Handling Charge $20.00

Call 216-459-9001 for Parts

PART NO. DESCRIPTION
3A36 FRONT WHEEL- complete with axle and bearings
3A37 REAR WHEEL - complete with axle and bearings less 80 tooth spur gear
167   BEARING, for front and rear wheels -  (2 required per wheel) ea.
162 80 TOOTH SPUR GEAR, for rear wheel
163-A 24 TOOTH SPUR GEAR, for outer gearbox; short shaft
1A164 TENSION ADJUSTMENT HANDLE
4141 TABLE, 24" x 30" Blanchard ground
4109 TOGGLE CLAMP, for motor
253 MOTOR, 2HP, 230V/440V, three-phase
4106 PULLEY, 2-3-4" step x 5/8" bore, for motor
4107 PULLEY, 2-3-4" step x 3/4" bore, for gearbox
4108 V-BELT - 34" O.D.
359 CHIP BRUSH
497 BLADE, 1" x 5/8T x 13'-10" (Bi-Metal)
498 CARBIDE GUIDE INSERTS - (8 required per saw) ea.
4113 BLACK PLASTIC KNOB
459 LONG BLADE GUARD - (front)
460 SHORT BLADE GUARD - (rear)
465 HYDRAULIC CYLINDER
466 DIRECTIONAL CONTROL VALVE
467 FLOW CONTROL
4110 COOLANT PUMP
4A119 QUICK ACTION VISE
476 START/STOP BUTTON
477 ON/OFF SWITCH - COOLANT
6A56 GEARBOX - complete (includes 24 tooth outside gear)
444 SIDE SPLASH PANELS - (pair)



HS1418
14 X 18 HORIZONTAL MITER BANDSAW 220V, 3 PHASE
STILL PROUDLY MADE IN THE USA
Mfg. item #: HS1418
RISHS1418
lease to own for as little as:$255 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$12,754.31

7
HS1418A
14 X 18 HORIZONTAL MITER BANDSAW 440V, 3 PHASE
STILL PROUDLY MADE IN THE USA
Mfg. item #: HS1418A
RISHS1418A
lease to own for as little as:$255 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$12,754.31

7
901
5 FT ROLLER CONVEYOR
Mfg. item #: 901
RIS901
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$639.00

7
902
10 FT ROLLER CONVEYOR
Mfg. item #: 902
RIS902
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$944.00

7
903
5 FT ROLLER CONVEYOR - TF
Mfg. item #: 903
RIS903
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$689.00

7
904
10 FT ROLLER CONVEYOR - TF
Mfg. item #: 904
RIS904
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
Call for Price

7
1A132
CASTERS
Mfg. item #: 1A132
RIS1A132
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$154.00

7
