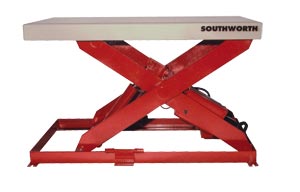

Southworth Model LL05.5-26 Lift

This 550 pound capacity lift table is built for years of trouble free service. It is an economical alternative for manual lifting and positioning

Features:

  • Low pressure hydraulics
  • Fast raising and lowering
  • Fully adjustable down speed
  • Heavy-duty torque tubes to minimize deflection
  • Lubricated for life pins, rollers and bushings
  • Full width straight through axles for increased stability throughout the travel range
  • Heavy-duty wire braided hoses for maximum burst strength
  • Tell-tale return hydraulic line prevents fluid spillage
  • Built-in maintenance chocks
  • Bolt-on power unit is neat, clean and allows for easy access to all components
Specifications
Item Number LL05.5-26
Model Number 4430193
Model Number 4430396
Capacity (lbs.) 550
Standard Platform (wxl in.) 20x36
Lowered Height (inches) 5-1/2
Vertical Travel (inches) 26
Raised Height (inches) 31-1/2
Motor H.P. 0.5
Voltage 115/1/60
Weight (lbs.) 240
There are no listed accessories.

4430193
LL05.5-26, MIN. PLATFORM **LEAD TIME = 2 WEEKS / WEIGHT = 240 LBS.LBS
Mfg. item #: 4430193
SOU4430193
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,135.00

285
4430396
LL05.5-26, UP TO MAX. PLATFORM **LEAD TIME = 2 WEEKS / WEIGHT = 300 LBS.LBS
Mfg. item #: 4430396
SOU4430396
Call for freight quote on this item or we will confirm freight charges before shipping.1
$2,340.00

285
