USI 10\'x 3/4

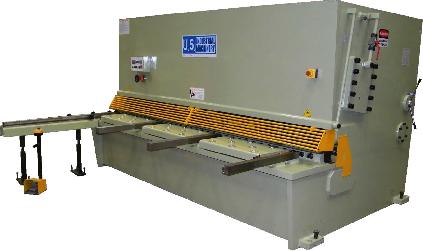

usi10750 10 x 3/4 hydraulic shear

One (1) Year In house Parts and Labor Waranty on ALL U.S. Indusrial Machinery

STANDARD EQUIPMENT: (All of the following comes with the machine)

  • Squaring Arm
  • Bolt on table segments quantity of 3
  • High Carbon, High Chrome Shear Blades
  • Hold-downs faced w/anti-mar neoprene
  • Ball Transfers on Each Table Segment
  • Swing Beam Design
  • Manual Quick Change Blade Gap Adj.
  • Pressure Sensing Hold Downs
  • Squaring Arm, 39.5 inch from blade to end
  • Electric Stroke Adjustment
  • Stroke Counter
  • Operator Control Console
  • Front-controlled Power Back Gauge
  • Shadow Lighting
  • Blade Guard, Micro Switch Protected
  • Low Noise Gear Pump
  • Hydraulic, Electrical Overload Protection
  • Support Arms Included
  • Automatic Swing-up on Back Gauge
Specifications
Sheet Size: 126 inch
Shearing Capacity: 3/4 inch Mild Steel at 65,000 PSI
Shear Angle: 1 Degree 30 feet
No Load Strokes: 5
Throat Depth: 5.5 inch
Adjustment Range of Back Gauge: 0.75 - 36 inch
Hydraulic Oil Capacity: 137 Gal.
Main Motor: 50 HP
Net Weight: 39,683 lbs.
Dimensions (L x W x H): 161 x 90 x 88 inch



There are no listed accessories.
10750
10 X 3/4 HYDRAULIC SHEAR (( INCLUDES - MATERIAL DROP SUPPORT CHUTE - FACTORY INSTALLED ))
Mfg. item #: 10750
USI10750
lease to own for as little as:$1,692 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$84,588.99

13
10SQRNGRM
10 SQUARING ARM
Mfg. item #: 10SQRNGRM
USI10SQRNGRM
lease to own for as little as:$58 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$2,923.36

13
48BCKGA
48 BACKGAUGE
Mfg. item #: 48BCKGA
USI48BCKGA
FREE shipping when ordered with a machine from this manufacturer.20
$2,435.32

13
6SQRNGRM
6 SQUARING ARM
Mfg. item #: 6SQRNGRM
USI6SQRNGRM
FREE shipping when ordered with a machine from this manufacturer.20
$2,435.32

13
8SQRNGRM
8 SQUARING ARM
Mfg. item #: 8SQRNGRM
USI8SQRNGRM
lease to own for as little as:$55 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$2,728.14

13
MATDRPCHT
MARERIAL SUPPORT/DROP CHUTE
CALL 800-458-3687 X1 FOR YOUR BROTHER-IN-LAW PRICE AND AVAILABILITY ON THIS ITEM
Mfg. item #: MATDRPCHT
USIMATDRPCHT
FREE shipping when ordered with a machine from this manufacturer.20
Call for Price

32
PNMTCSHTSPRT
PNEUMATIC SHEET SUPPORT
Mfg. item #: PNMTCSHTSPRT
USIPNMTCSHTSPRT
lease to own for as little as:$117 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$5,846.72

13
