Van-Mark Trim-A-Gutter Tools and Accesso

All Van Mark Brakes, Tools and Accessories are
Manufactured AND Assembled in the USA!

Click Here to Download

In a perfect world all roof and fascia profiles are exactly the same. A one story ranch with a 4/12 pitch gable roof, a trimmed 1x6 fascia board and a seamless gutter ready for installation.

In the real world, no two jobs are ever the same. One job may be a 12/12 pitch roof being re-shingled with sagging gutters that have to be re-hung. The next job is an 8/12 hip roof tear-off calling for new gutter-cover over existing gutter and the colors have to match.

Van Mark combines both worlds giving you Trim-A-Gutter™ Tools and Accessories. Now you can form gutter-cover from trim coil for virtually any profile, right on the job site. Along with aluminum extruded brackets and plated anchors, the patent pending Trim-A-Gutter™ tool is designed for all levels of expertise.

Forms industry standard 4 ft. lengths from standard trim coil or gutter coil. Tool comes complete with UniMount hardware for mounting to any Van Mark brake, or independently using UniLegs

Note: accessories may be incompatible with older Van-Mark products.

This is not your ordinary run of the mill gutter bracket!

When you add all the manufacturing steps that go into producing this component with the material sciences formulated into the aircraft-grade aluminum billet, it's easy to understand why Trim-A-Gutter™ brackets rise to the top of their class, far exceeding the low budget economy-grade gutter nails, ferrules, hangers, clips and straps used by the others.

  • 6061 T6 aluminum alloy
  • Triple hollow-core extrusion
  • Heat treated for strength
  • Aircraft-grade alum. billet
  • Can install alongside old spike & ferrules

NEW 6" Bracket Now Available!

Trim-A-Gutter™ brackets will re-hang sagging gutters back to the original profile,with or without installing gutter-cover.

These patented brackets are extruded using 6000 Series alloys. This group
contains silicon and magnesium in approximate proportions to form magnesium
silicide, thus making it heat-treatable. The 6000 Series is known for its corrosion resistance, strength,surface quality and anodizing characteristics while offeringexcellent formability in a heat-treatable alloy with exceptional mechanical properties.We're just getting started. Alloyed aluminum, which has been cast into billets, is heated to a temperature at which it is soft and malleable but below the melting point. It is then forced, under thousands of pounds of pressure, through a die that replicates the bracket design specifications into lengths up to 150 feet. The extrusion is then cooled, straightened, cut to the desired length and baked in an oven to achieve the desired hardness.
We're still not done yet. The bracket screw holes are then drilled (not stamped), to ensure uniform gutter attachment to the fascia. Finally, the bracket is de-burred in a tumbling process to remove any sharps that can cut into an unprotected hand. Why go to all this trouble? Simple, Van Mark wants you to be competitive with these brackets being the basis for many successful and profitable Trim-A-Gutter™ installations without costly call backs or warranty work.

Trim-A-Gutter™ made gutter-cover and hardware accessories are designed for residential and commercial roofs of 3/12 or greater pitch and 5 inch K style gutters installed new or retrofit. Modifications may be necessary when installing in conjunction with slate, tile, shake and metal roofs. Modifications should be preformed by a roofing or gutter professional having general knowledge in the field to which the application applies.

How It Works!
As rainwater collects and cascades over the gutter-cover, a natural surface tension is created causing the rainwater to follow the contours of the gutter-cover. Once gravity takes over, the rainwater has cleared the gutter edge and falls into the gutter trough itself. Leaves and other rigid debris are unable to make the transition, falling harmlessly to the ground.

50" rolling capacity for forming industry standard lengths.
• Tool designed for special brackets & anchors (sold separately).
• The fastest, most inexpensive way to get in on this business.
• Match gutter colors more precisely for effortless integration.
• Generous profit margins over existing off-the-shelf products.

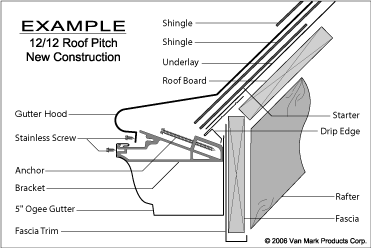

Only One System Can Adapt to Fit Virtually Any Gutter/Fascia/Roof Profile, Trim-A-Gutter™


3/12 Pitch
Under the Shingle

12/12 Pitch
Over the Shingle

12/12 Box Gutter
Fascia Mount




12/12 Pitch
Fascia Mount

8/12 Pitch
Over the Shingle

18/12 Pitch
Over the Shingle



Trim-A-Gutter™ Portable Gutter-Cover Tool
Forms industry standard 4 ft. lengths from standard trim coil or gutter coil. Tool comes complete with UniMount™ hardware for mounting to any Van Mark brake, or independently using UniLegs
1 Each
TAG50

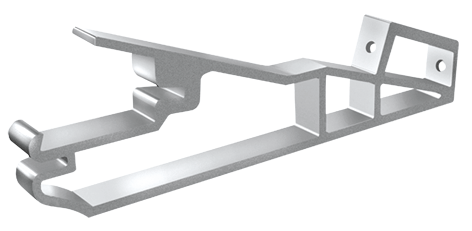

6 inch Bracket Fits 5 inch "K" style gutters. Aluminum extruded 2 step brackets first hang the gutter, then mount the gutter-cover. Can also be used to re-hang sagging gutters, or to hang custom 5" box gutter. 100 count 3093
500 count 3094
5 inch Bracket
Fits 5 inch "K" style gutters. Aluminum extruded 2 step brackets first hang the gutter, then mount the gutter-cover. Can also be used to re-hang sagging gutters, or to hang custom 5" box gutter.
100 Count
500 Count
3027
*3" Anchors
Used to fasten bracket into the fascia.
100 Count
500 Count

3029
*3/8” Stainless Cover Screws
Attaches gutter-cover to bracket. Other uses include fastening outer edge of gutter into bracket, installing splash guards and end caps.
100 Count
500 Count 3031
1/4” Magnetic Bit Driver
1/4” Magnetic Bit Driver-When used with a cordless drill, used to drive anchors & cover screws in place.
1 Each
UniLeg™ Tool Supports
For mounting TAG50 independent from Van Mark brake. Unilegs™ also fits other popular Van Mark tools.
1 Pair
3005



TAG50
TRIM-A-GUTTER
Mfg. item #: TAG50
VANTAG50
Call for freight quote on this item or we will confirm freight charges before shipping.1
$923.63

98
UNL1
Mfg. item #: UNL1
VANUNL1
FREE shipping when ordered with a machine from this manufacturer.20
$209.95

98
3093
3093 6 BRACKET 100 CT
Mfg. item #: 3093
VAN3093
FREE shipping when ordered with a machine from this manufacturer.20
$214.95

98
3094
3094 6 BRACKET 500 CT
Mfg. item #: 3094
VAN3094
FREE shipping when ordered with a machine from this manufacturer.20
$1,049.95

98
3026
TRIM-A-GUTTER BRACKETS 3026 BRACKET 100 CT
Mfg. item #: 3026
VAN3026
FREE shipping when ordered with a machine from this manufacturer.20
$169.95

98
3027
TRIM-A-GUTTER BRACKETS 3027 BRACKET 500 CT
Mfg. item #: 3027
VAN3027
Call for freight quote on this item or we will confirm freight charges before shipping.1
$824.95

98
3028
TRIM-A-GUTTER BRACKETS 3028 3 ANCHOR 100 CT
Mfg. item #: 3028
VAN3028
FREE shipping when ordered with a machine from this manufacturer.20
$27.95

98
3029
TRIM-A-GUTTER BRACKETS 3029 3 ANCHOR 500 CT
Mfg. item #: 3029
VAN3029
FREE shipping when ordered with a machine from this manufacturer.20
$119.95

98
3030
TRIM-A-GUTTER BRACKETS 3030 3/8 SCREW 100 CT
Mfg. item #: 3030
VAN3030
FREE shipping when ordered with a machine from this manufacturer.20
$9.95

98
3031
TRIM-A-GUTTER BRACKETS 3031 3/8 SCREW 500 CT
Mfg. item #: 3031
VAN3031
FREE shipping when ordered with a machine from this manufacturer.20
$44.95

98
4629
4629 1/4 BIT DRIVER
Mfg. item #: 4629
VAN4629
FREE shipping when ordered with a machine from this manufacturer.20
$12.95

98
