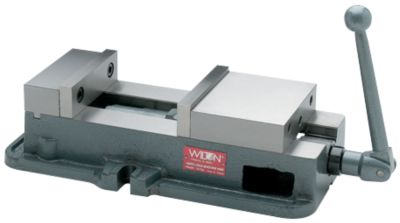

Wilton Machine Vises

The Wilton Verti-Lock Machine Vise has a 2 Year warranty

  • The ductile alloy vise body with flame-hardened bed provides solid work support, accuracy, and longevity
  • The fixed jaw is rated at 85,000 PSI and the annealed, surface ground sliding jaw at 70,000 PSI
  • Totally enclosed vise screw is cut from special alloy steel, hardened and ground
  • The vise and optional swivel base have coolant troughs to channel fluid out of your way
Detailed Specifications
Part Number 12390
Brand Wilton
Family Description Verti-Lock Machine Vise
Height 4.7 inch
Jaw Width 5 inch
Length 16.8 inch
Model Number 1250N
Net Weight 50 pound
Opening Capacity Max 4 1/2 inch
Web Description Verti-Lock Machine Vise 5 inch Jaw Width, 4-1/2 inch Jaw Opening
Width 9.4 inch

The Wilton Verti-Lock Machine Vise has a 2 Year warranty

  • The ductile alloy vise body with flame-hardened bed provides solid work support, accuracy, and longevity
  • The fixed jaw is rated at 85,000 PSI and the annealed, surface ground sliding jaw at 70,000 PSI
  • Totally enclosed vise screw is cut from special alloy steel, hardened and ground
  • The vise and optional swivel base have coolant troughs to channel fluid out of your way
Detailed Specifications
Part Number 63186
Brand Wilton
Family Description 1275N, VERTILOCK VISE
Height 6.7 inch
Jaw Width 6  inch
Length 19.7 inch
Model Number 1275N
Net Weight 75.25 pound
Opening Capacity Max 7 1/2 inch
Web Description Verti-Lock Machine Vise 6 inch Jaw Width, 7-1/2 Jaw Opening
Width 10.7 inch

  The Wilton Verti-Lock Machine Vise 8 inch Jaw Width, 7-1/2 inch Jaw Opening
has a 2 Year warranty

  • The ductile alloy vise body with flame-hardened bed provides solid work support, accuracy, and longevity
  • The fixed jaw is rated at 85,000 PSI and the annealed, surface ground sliding jaw at 70,000 PSI
  • Totally enclosed vise screw is cut from special alloy steel, hardened and ground
  • The vise and optional swivel base have coolant troughs to channel fluid out of your way
Detailed Specifications
Part Number 12375
Base Diameter 16 1/8  inch
Brand Wilton
Family Description Verti-Lock Machine Vise
Height 11 inch
Jaw Height 2 1/4 inch
Jaw Width 8 inch
Length 28 inch
Model Number 1280N
Net Weight 164 pound
Opening Capacity Max 7 1/2 inch
Type of Base Stationary
Web Description Verti-Lock Machine Vise 8 inch Jaw Width, 7-1/2 inch Jaw Opening
Width 16 inch
2 year warranty logo WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Wilton® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848



Accessories
12285 5S, Swivel Base for 1250N Vise 12285_main
12290 6S, Swivel Base for 1275N Vise 0
12290 6S, Swivel Base for 1275N Vise 0

More Informationshow more
12390
## 1250N, VERTI-LOCK MACHINE VISE 5 JAW WIDTH, 4-1/2 JAW OPENING
ITEM SHIPS IN 7 DAYS EXPIATED SHIPPING AVAILABLE
Mfg. item #: 12390
WMH12390
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$499.00

17
More Informationshow more
63186
1275N, VERTI-LOCK MACHINE VISE 6 JAW WIDTH, 7-1/2 JAW OPENING ** SHIPS BY LTL TRUCK / WEIGHT = 75 LBS
Mfg. item #: 63186
WMH63186
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$586.80

17
More Informationshow more
12375
1280N, VERTI-LOCK MACHINE VISE 8 JAW WIDTH, 7-1/2 JAW OPENING ** SHIPS BY LTL TRUCK / WEIGHT = 164 LBS
Mfg. item #: 12375
WMH12375
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$1,142.01

17
More Informationshow more
12285
## 5S, SWIVEL BASE FOR 1250N VISE
ITEM SHIPS IN 7 DAYS EXPIATED SHIPPING AVAILABLE
Mfg. item #: 12285
WMH12285
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$136.76

17
More Informationshow more
12290
6S, SWIVEL BASE FOR 1275N VISE
Mfg. item #: 12290
WMH12290
FREE FREIGHT on Jet, Powermatic or Wilton orders over $600 ALWAYS FREE Residential and Liftgate when Requested.4
$157.59

17
