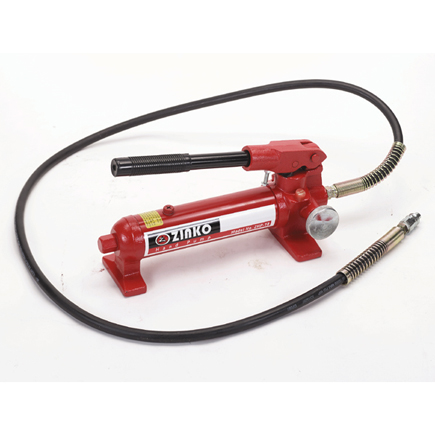

Zinko Air Single Speed Hand Pumps

Hand Pump, 18 cu.in. single speed
Designed to be used in many different fields with a vast selection of hydraulic components.
Industrial quality, general purpose hand pump. Designed for use in shop, agricultural, automotive/truck service, and construction maintenance. Single speed operation; external adjustable relief valve for application flexibility

Features:

  • Works with a wide variety of rams including short, push, spreader and snap-set types
  • Extremely portable, great for on site use
  • Chrome-plated piston rods for long pump life
  • Polyurethane seals allow greater cycle counts reducing service requirements
  • Easy to mount design
  • Works with "quick-connect" couplers for fast set up
  • Heavy duty return springs provide consistent performance
There are no further details.
Specifications
Model Number Speed Usable Oil Capacity (in³) Pressure Rating (psi) Oil Displacement Per Stroke (in³) Max handle effort (lbs) Piston Stroke (in)
1st Stage 2nd Stage 1st Stage 2nd Stage
Industrial Grade Hand Pump
ZHP-19 1 19 N/A 10,000 N/A 0.19 181 0.50
ZHP-20 1 20 N/A 10,000 N/A 0.19 181 0.47
ZHP-29 1 29 N/A 10,000 N/A 0.19 102 0.50
ZHP-41 1 42 N/A 10,000 N/A 0.19 98 0.50
Automotive Application Hand Pump
ZHP-18 1 18 N/A 10,000 N/A 0.19 181 0.47
ZHP-28 1 30 N/A 10,000 N/A 0.19 102 0.47
There is no further information.
There are no listed accessories.
ZHP-18
Mfg. item #: ZHP-18
ZINZHP-18
Call for freight quote on this item or we will confirm freight charges before shipping.1
$200.82

1590
ZHP-19
Mfg. item #: ZHP-19
ZINZHP-19
Call for freight quote on this item or we will confirm freight charges before shipping.1
$202.35

1590
ZHP-20
Mfg. item #: ZHP-20
ZINZHP-20
Call for freight quote on this item or we will confirm freight charges before shipping.1
$290.46

1590
ZHP-28
Mfg. item #: ZHP-28
ZINZHP-28
Call for freight quote on this item or we will confirm freight charges before shipping.1
$202.12

1590
ZHP-29
Mfg. item #: ZHP-29
ZINZHP-29
Call for freight quote on this item or we will confirm freight charges before shipping.1
$218.04

1590
ZHP-41
Mfg. item #: ZHP-41
ZINZHP-41
Call for freight quote on this item or we will confirm freight charges before shipping.1
$218.39

1590
Freight policies for items on this page:
1: Call for freight quote on this item or we will confirm freight charges before shipping.
Free freight offers apply only to deliveries to the lower 48 states by truck freight or ground UPS. Liftgate and non-commercial delivery charges may be extra.
