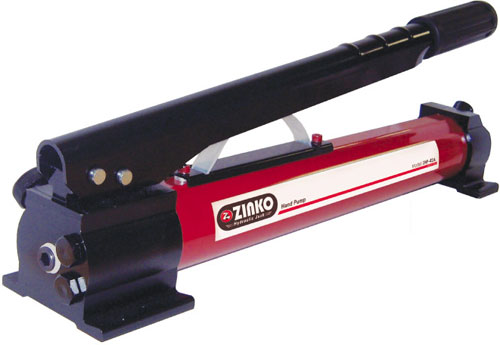

Zinko ZHP Two Speed Hand Pump - Aluminum

Hand Pump, 150 cu. in. Two speed With 4-Way Valve
Designed to be used in many different fields with a vast selection of hydraulic components

Features:

  • Made from heat treated aluminum alloy, making pump light and extremely durable
  • Built in 4-Way Valve allows pump to be used with double acting cylinders. Can advance and retract double acting cylinders at full pump pressure
  • Works with a wide variety of rams including double acting, short, push, spreader and snap-set types
  • Extremely portable, great for on site use
  • Chrome-plated piston rods for long pump life
  • Polyurethane seals allow greater cycle counts reducing service requirements
  • Easy to mount design
  • Works with "quick-connect" couplers for fast set up
  • Two Speed pump design is faster and requires less handle strokes reducing operator fatique
  • Heavy duty return springs provide consistent performance
Specifications
Model Number Speed Usable Oil Capacity (in³) Pressure Rating (psi) Oil Displacement Per Stroke (in³) Max handle effort (lbs) Piston Stroke (in)
1st Stage 2nd Stage 1st Stage 2nd Stage
Industrial Grade Hand Pump
ZHP-55A 2 55 300 10,000 0.345 0.086 93 1.00
ZHP-150AV 2 150 350 10,000 0.79 0.17 87 1.00



There are no listed accessories.
ZHP-55A
Mfg. item #: ZHP-55A
ZINZHP-55A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$417.73

1
ZHP-150A
Mfg. item #: ZHP-150A
ZINZHP-150A
Call for freight quote on this item or we will confirm freight charges before shipping.1
$663.33

1
