American Rotary ADX Series, Smart Phase Converter

FREE Freight on all American Rotary Phase Converters

american rotory adx floor unit american rotary adx wall unit
Floor Unit Shown Wall Unit Shown



Quick Sizing Guide
Phase Converter Model 3 5 7.5 10 15 20 25 30 40 50 60 75
Single motor start max. (HP) 1.5 2.5 3.5 5 7.5 10 12.5 15 20 25 30 40
Total Combined Loads Call for Combined Load Sizing
CNC/VFD (HP) 1.5 2.5 3.5 5 7.5 10 12.5 15 20 25 30 40
Resistive/Oven (amps) 4.8 7.5 11 14 21 27 34 40 52 65 75 100
Rectified/Welder (amps) 4.8 7.5 11 14 21 27 34 40 52 65 75 100



Click here to download Installation and Data Sheet
Click here to download Specifications

ADX Series, Extreme Duty - This SMART Series Phase Converter is manufactured in the USA by American Rotary and will convert 1 to 3 Phase power and provide 100 percent power for 208-250v equipment.

The ADX series phase converters have current control to provide consistent torque while starting high inertia, extremely hard starting loads, yet are precise enough for CNC applications.

Best for: High Inertia/friction loads such as pumps, fans, compressors, blowers, dust collectors and fly wheels.

American Rotary engineers the entire phase converter system to provide optimum performance. Our variable impedance generator (VIT) and MicroSmart controller combine to make the most powerful and precise rotary phase converter on the market.

Made in the USA
cutaway picture

Designed and Manufactured in Wisconsin  The focus of American Rotary, is always on innovative engineering, product development, and outstanding customer service. The results are great American made phase converters that work flawlessly, provide unparallleld performance and are easy to install, all at an affordable price.

Keeping Jobs at Home  Keeping jobs at home not only helps our economy, but it is critical for quality control and for the customer serivce American Rotary provides for all our customers.

Passion for Peformance  American Rotary's breakthrough design of the MicroSmart controller (AD, ADX) allowed it to create the first true digitally controlled phase converter in the industry. Its digital accuracy provides an impressive ability to adapt to changing loads, sagging voltages and gives our phase converters the feel and performance you expect from high precision machines.

GENTEC Baldor Partnership  The single largest component in a phase converter is the GENTEC/Baldor VIT Generator. American Rotarys engineering departments spent over 2 years engineering the perfect generator for a Rotary Phase Converter, and its patent technology is the best in the industry. American Rotarys custom generator is one of a kind in our industry and outperforms the standard motor/idlers found on a typical phase converter.

keeping jobs at home    features-passion-for-performance   gentec baldor partnership
Gentec VIT Generator
designed-for-phase-converters
Stable Voltage and Sinewaves    Open Design (ODP) vs. Enclosed Design (TEFC)    Voltage Stabilization
Full Current Starter
Built-in Magnetic Starter

Built-in Magnetic Starter  American Rotary's magnetic starter provides the means to continuously control your American Rotary phase converter remotely, from multiple locations or in conjunction with automatic equipment. See the Expandable Design – Remote Start Feature for more information on remote start options.

Quality Control  The American Rotary manufacturing team assembles its starter modules using torque drivers that are tested and certified as a requirement for UL certification at our Wisconsin manufacturing plant. Every control panel American Rotary builds passes over 50 criteria for quality certification before it ships your new phase converter to you!

Designed for the Hardest Start Ups  American Rotary starters are custom designed to meet even the most difficult loads and the most stringent standards. We oversize the starters to ensure they can handle the entire starting current and continuous load. All American Rotary phase converters undergo rigorous simulation and testing in its R&D department to ensure your equipment and operators are safe and protected.

Be Safe and Aware!  A starter is not designed or rated to be the safety disconnect. Be aware of phase converters that claim their starter disconnects all three lines of output. A properly used starter only controls the start/stop of the phase converter and does not disconnect the single phase lines. American Rotary will always put your safety first.

Quality Control    Designed for the Hardest Start Ups    Be Safe and Aware
Expandable Design
Double or Triple your power!

Double or Triple your power!  All American Rotary Phase Converters are capable of phase synchronization for increased capacity. Converters can be daisy chained together to double, triple, quadruple your power. Call or email the American Rotary technical staff for more information on available options.

Changes with your hobby or business.  As you add more equipment or change the type of equipment you run, the MicroSmart™ controller adapts with your shop needs. Powering your shop or business with a SMARTConverter™ (AD, ADX) ensures your equipment gets the right power at the right time, even as your business changes and grows.

Remote Start  All American Rotary Phase Converters are designed to work with wired and wireless remote starts. Our long range radio frequency remote starter and receiver works seamlessly with our latching full current magnetic starter to remotely control your converter. Wireless remotes feature 500’ range and include high gain, omni directional antenna and a key FOB or wall mount transmitter. You can also control your converter with our wired remotes!

Plug N Play  American Rotary realizes that some equipment just isn’t meant to be hard wired. So it gave every phase converter a space for a twist-lock, 3-phase receptacle and a flush mount 3-phase breaker Great for welders, battery chargers, mobile jobsite converters and more.

Changes with your hobby or business.    remote-start   Plug N Play
Easy Installation
easy-wiring

Easy Access Wiring  Designed to meet UL minimum space requirements, American Rotary enclosures have removable sides so that the oversized terminal blocks can be accessed with ease. The cover is hinged and can be easily removed.

Oversized Terminal Blocks  Copper Aluminum Alloy and Nylene terminal blocks are specifically designed and molded for American Rotary phase converters in order to provide easy organized connections for a carefree, UL compliant installation. Terminal blocks are clearly marked for trouble-free installations.

Knockouts No drilling or punching needed! All the necessary knockouts for installation are provided and powder coated to prevent rust. The knockouts are sized for the maximum anticipated conduit for proper wire gauge per NEC

Laser Precision  The design flexibility and time savings features that laser cut steel provides is an important part of the quality of an American Rotary phase converter. From knockouts for breakers and receptacles, to perfectly mitered corners, laser manufacturing results in a longer lasting, better quality product.

Oversized Terminal Blocks    knockouts   Laser Precision
MicroSmart Controller
smart-control

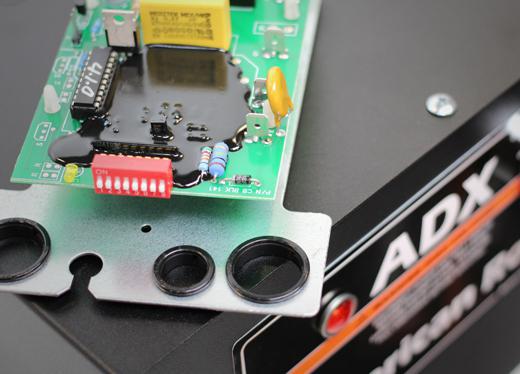

SMART CONTROL  The American Rotary MicroSmart™ Controller is a patent technology which provides precise control of the phase converter. It monitors the voltage every 50 milliseconds providing better voltage control, prolonging the life of the converter, handles significantly more load capacity (ADX and AI), and enabling several failsafe features that are only available on American Rotary’s SMART Series™ phase converters. (AD, ADX, and AI units only)

Block Diagram  Smart Series™ digital rotary phase converters (AD, ADX, and AI) run on our MicroSmart™ Controller. This custom designed microprocessor delivers the right power at the right time in both start-up and run mode. The MicroSmart™ controller monitors and takes a sampling of the voltage every 50 milliseconds on all three lines of the output voltage.. (AD, ADX, and AI units only)

Proprietary Technology  American Rotary has invested extensively in research and design to create the state of the art MicroSmart™ Digital Controller. Other so called “digital” rotary phase converters use an off the shelf voltage relay that does not monitor the voltage like the MicroSmart™ Controller. (AD, ADX, and AI units only)

Invest in power  All American Rotary Smart Series™ phase converters are designed to grow with your business. Our converters are engineered to allow numerous upgrade options, including; Hardware, Software and Kit upgrades. You can also run our phase converters in parallel and double your power to adapt to your changing needs. Need more power? More precise power? Just turn on your American Rotary Smart Series™ and let our technology do the work. (AD, ADX, and AI units only)

Block Diagram   Proprietary Technology     Invest in power
CTR Current Control
ctr current control

Powerful Load Starting Capability.  High inertia and high friction loads such as air-compressors, blower, fans, flywheel & lifting loads can draw 6 times FLA (full load amps) for several seconds during start up. The CTR acts as a stabilizer, ensuring consistent voltage and current. CTR allows our ADX and AI phase converters to start your high inertia machinery with ease in about 1/3 the time of a standard phase converter.  (ADX and AI units only)

Engineered to Perform  American Rotary leads the industry with its innovative CTR technology. CTR (Current Transient Reactor) along with the MicroSmart ControllerTM allows high currents to be drawn through the phase converter producing more torque while maintaining voltage and power. (ADX and AI units only)

Reliable and Long Lasting Phase Converters.  American Rotary's proprietary CTR technology provides a layer of protection against external transient current spikes on the incoming single phase line at start up. Our CTR technology allows us to offer the best phase converter warranty in the industry. (ADX and AI units only)

Reliable and Long Lasting Equipment  Even if your equipment doesn’t need incredible starting performance, the American Rotary CTR technology will ensure your equipment starts as designed. Fast start up times ensure your equipment will run cooler, run more reliably and last longer. The ADX and AI lines are designed to protect and handle even the hardest loads. (ADX and AI units only)



AI Industrial Phase Converter Specifications
Part Number AD / ADX 3 5 7.5 10 15 20 25 30 40 50 60
kW of Generator (based on FLA) 2.2 3.7 5.6 7.4 11.2 14.9 18.7 22.4 29.8 37.3 44.8
Idler/Generator FLA 9.6 14 21 28 40 50 60 76 100 130 150
Frequency (Hz) 60
Generator Type GENTEC/Variable Impendence
Magnetic Starter Included (remote start ready)
Panel Enclosure NEMA 1
Temperature rating 40 C Ambient
Wave Form Pure Sinusoidal Analog
Phase Angle 120 degrees
Efficency 97 percent
Three Phase Output Specifications (continuous)
Output voltage equals input voltage
Voltage tolerance meets IEEE Std. 241-1990 utility
3-phase output configuration 3-wire delta
Service factor 1.15
Output Frequency (Hz) Input Frequency
Output Current (use for resistive and rectified loads, i.e. Welder, CNC, VFD, Power-supply)-amps at 240V
3-phase output current recommended for CNC, welder, VFD, voltage sensitive 4.8 7 11 14 20 25 30 38 50 65 75
Max. current for IEEE Std. utility line 6 9 13 17 24 30 36 46 50 80 90
Starting Motor Loads- (HP/kW)
Maximum HP start (Moderate Load) Type 1 2.5/1.9 4/3 5/3.7 7.5/5.6 10/7.5 15/11.2 20/14.9 25/18.7 30/22.4 40/30 50/37.3
Maximum HP start (Hard Load) Type 2 1.5/1.12 2.5/1.9 3/2.2 5/3.7 7.5/5.6 10/7.5 12.5/9.3 15/11.2 20/14.9 25/18.7 30/22.4
Maximum HP start (High Inertia) Type 3 1/.75 2/1.5 2.5/1.9 3/2.2 5/3.7 7.5/5.6 10/7.5 12.5/9.3 15/11.2 20/14.9 25/18.7
Maximum HP start (High Inertia)Type 3 w/ADX 1.5/1.12 2.5/1.9 3/2.2 5/3.7 7.5/5.6 10/7.5 12.5/9.3 15/11.2 20/14.9 25/18.7 30/22.4
Maximum HP Total Motor Group Load 5/3.7 7.5/5.6 10/7.5 15/11.2 22/16.4 30/22.4 37/28 45/34 60/45 75/56 90/67
Maximum (CNC or VFD) Type 4 1.5/1.12 2.5/1.9 3/2.2 5/3.7 7.5/5.6 10/7.5 12.5/9.3 15/11.2 20/14.9 25/18.7 30/22.4
Single Phase Input Specifications (continuous)
Voltage Input 208-250
Input Frequency (Hz) 60
(HP load / 1-ph amps) 1/4 1.5/6 2.5/10 3/12 5/20 7.5/29 8/31 10/39 15/59 15/59 20/78
(HP load / 1-ph amps) 2/9 2.5/11 4/18 5/22 7.5/34 10/45 12.5/56 15/67 20/90 25/112 30/134
(HP load / 1-ph amps) 3/15 4/20 6/29 7.5/37 12/59 15/74 20/98 22.5/110 30/147 37.5/184 45/221
Power Consumption (kW) 0.05 0.08 0.11 0.15 0.23 0.30 0.38 0.45 0.60 0.75 0.90
Cost to Run (at .10/kW/HP) ( $ / hr) 0.05/hr 0.08/hr 0.11/hr 0.15/hr 0.23/hr 0.30/hr 0.38/hr 0.45/hr 0.60/hr 0.75/hr 0.90/hr
Minimum Breaker Size 2 x load current
Conductors should be sized according to Minimum Breaker Size and NEC requirements




We get calls from our customers wondering what the differences are among all the different phase converters on the market. Granted they all do the same basic job of turning your single-phase power into three-phase power, but the quality of the power and the efficiency isn’t always there. With American Rotary’s industry leading designs and technology, you will be producing the cleanest and most balanced three-phase on the market and you will be doing it very efficiently and cost effectively as well.

There are a lot of features that set an American Rotary Phase converter apart from the rest. American Rotary’s team is constantly doing research and development to constantly make sure that our phase converters are providing our customers with the best alternative three phase solution as well as making sure it is compatible with new equipment. We also take feedback from our customers to hear on ways the converter would work better for them. Here are just some ways how American Rotary is on the leading edge of phase converter technology.

VIT Generator- American Rotary worked with Baldor directly to design and engineer a custom soft starting idler generator. This idler features Variable Impendence Technology that uses a 1/3 of the inrush current of a comparable three phase motor of its size. This is a true soft starting feature that will make the phase converter much easier to start on your single-phase utility power. The idlers are also designed to produce a true three phase sine wave providing your equipment with a true three phase signal. By having a true three phase sine wave, this prevents harmonics from being in the line that are caused by distorted sine waves. On top of all this, the VIT Generator will run quieter, cooler, and more efficiently than a phase converter that is using a modified three phase motor as the idler. The custom designed VIT generator will operate at greater than 98 percent efficiency

american-rotary-label

american-rotary-microsmart MicroSmart Controller- The American Rotary Digital Series (AD, ADX, AMP, AI) all feature our patented Digital MicroSmart Controller. This device monitors and controls the voltages across the three legs of power to ensure that clean balanced power is being produce and provided to your equipment. With the having the MicroSmart Controller, the phase converter will produce a three-phase power signal that is at a 5% or greater voltage balance across the three legs compared to standard utility that is typically around 10% balance. This is an ideal feature to have on your equipment, the cleaner the power is that your equipment is being provided, the more efficiently it will run. The more efficiently it runs, the less stress it is under and will last longer. This is an especially important feature to have when running voltage sensitive equipment such as CNC machines, Welders, Compressors, and other computer controls.
american-rotary-ctr-tech CTR Technology- Featured on the ADX and AI series phase converter the CTR Coil allows higher currents to flow through the phase converter which will produce more torque and still maintain your current and voltage balance. This is an important feature to have when starting high torque or high inertia loads that have a hard start. This can be seen on air compressors, vacuum motors, elevators, and hoists just to name a few. With CTR Technology and allowing the more current to flow, this will help shorten the start time of your equipment which in turn puts less strain on your equipment.
american-rotary-expandable Expandable Design- With American Rotary phase converters you have the option to expand if your needs change. As time goes on and our businesses grow so does the number of machines required to run your business. With an American Rotary phase converter, we have designed the units so that you can expand your phase converter as your needs change.

Customer support- One of the most important features that American Rotary has to offer is our industry leading support. During the sizing process one, of our Application Engineers will help guide you through finding which American Rotary phase converter will work best for your needs. But it doesn’t stop there, American Rotary stands behind our products with the best warranties in the industries. You are able to reach a member of the American Rotary team during our after-hours support should any questions arise. American Rotary is available to our customers through many different channels; phone, email, social media, and online chat just to name a few.

As you can tell, there are many benefits with choosing American Rotary for your three-phase power needs. These are features that will make for an easy buying process for your phase converter, easy hook up, easy operation, and more importantly run your equipment safely how it is designed to be ran. Give American Rotary a call to see how these features will benefit you and the operation of your equipment. American Rotary is always here to help you make your American Dreams your Reality.

208 - 250V Models
ADX03  3HP Extreme Duty SMART Rotary Phase Converter
ADX05  5HP Extreme Duty SMART Rotary Phase Converter
ADX7.5  7.5HP Extreme Duty SMART Rotary Phase Converter
ADX10  10HP Extreme Duty SMART Rotary Phase Converter
ADX15  15HP Extreme Duty SMART Rotary Phase Converter
ADX20  20HP Extreme Duty SMART Rotary Phase Converter
ADX25  25HP Extreme Duty SMART Rotary Phase Converter
ADX30  30HP Extreme Duty SMART Rotary Phase Converter
ADX40  40HP Extreme Duty SMART Rotary Phase Converter
ADX50  50HP Extreme Duty SMART Rotary Phase Converter
ADX60  60HP Extreme Duty SMART Rotary Phase Converter
ADX75  75HP Extreme Duty SMART Rotary Phase Converter
ADX100  100HP Extreme Duty SMART Rotary Phase Converter
ADX150  150HP Extreme Duty SMART Rotary Phase Converter
ADX200  200HP Extreme Duty SMART Rotary Phase Converter
ADX300  300HP Extreme Duty SMART Rotary Phase Converter
440 - 480V Models
ADX03-4  3HP Extreme Duty SMART Rotary Phase Converter
ADX05-4  5HP Extreme Duty SMART Rotary Phase Converter
ADX7.5-4  7.5HP Extreme Duty SMART Rotary Phase Converter
ADX10-4  10HP Extreme Duty SMART Rotary Phase Converter
ADX15-4  15HP Extreme Duty SMART Rotary Phase Converter
ADX20-4  20HP Extreme Duty SMART Rotary Phase Converter
ADX25-4  25HP Extreme Duty SMART Rotary Phase Converter
ADX30-4  30HP Extreme Duty SMART Rotary Phase Converter
ADX40-4  40HP Extreme Duty SMART Rotary Phase Converter
ADX50-4  50HP Extreme Duty SMART Rotary Phase Converter
ADX60-4  60HP Extreme Duty SMART Rotary Phase Converter
ADX75-4  75HP Extreme Duty SMART Rotary Phase Converter
ADX100-4  100HP Extreme Duty SMART Rotary Phase Converter
ADX150-4  150HP Extreme Duty SMART Rotary Phase Converter
ADX200-4  200HP Extreme Duty SMART Rotary Phase Converter
ADX300-4  300HP Extreme Duty SMART Rotary Phase Converter



ADX03
NO LONGER AVAILABLE
Mfg. item #: ADX03
AMEADX03
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
Call for Price

19
ADX05
ADX05 - 5HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX05
AMEADX05
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$879.00

19
ADX7.5
NO LONGER AVAILABLE
Mfg. item #: ADX7.5
AMEADX7.5
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
Call for Price

19
ADX10
ADX10 - 10HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX10
AMEADX10
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,179.00

19
ADX15
ADX15 - 15HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX15
AMEADX15
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,779.00

19
ADX20
ADX20 - 20HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX20
AMEADX20
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$1,979.00

19
ADX25
ADX25 - 25HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX25
AMEADX25
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,479.00

19
ADX30
ADX30 - 30HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX30
AMEADX30
lease to own for as little as:$60 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$2,979.00

19
ADX40
ADX40 - 40HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX40
AMEADX40
lease to own for as little as:$78 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,879.00

19
ADX50
ADX50 - 50HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX50
AMEADX50
lease to own for as little as:$94 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$4,679.00

19
ADX60
ADX60 - 60HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX60
AMEADX60
lease to own for as little as:$110 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,479.00

19
ADX75
ADX75 - 75HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX75
AMEADX75
lease to own for as little as:$128 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,379.00

19
ADX100
ADX100 - 100HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX100
AMEADX100
lease to own for as little as:$200 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$10,008.00

19
ADX150
ADX150 - 150HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX150
AMEADX150
lease to own for as little as:$268 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$13,408.00

19
ADX200
ADX200 - 200HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX200
AMEADX200
lease to own for as little as:$391 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$19,566.00

19
ADX300
ADX300 - 300HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 208 - 250 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX300
AMEADX300
lease to own for as little as:$527 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$26,366.00

19
ADX03-4
NO LONGER AVAILABLE
Mfg. item #: ADX03-4
AMEADX03-4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
Call for Price

19
ADX05-4
ADX05-4 - 5HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX05-4
AMEADX05-4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,079.00

19
ADX7.5-4
NO LONGER AVAILABLE
Mfg. item #: ADX7.5-4
AMEADX7.5-4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
Call for Price

19
ADX10-4
ADX10-4 - 10HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX10-4
AMEADX10-4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,379.00

19
ADX15-4
ADX15-4 - 15HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX15-4
AMEADX15-4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$1,979.00

19
ADX20-4
ADX20-4 - 20HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX20-4
AMEADX20-4
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$2,179.00

19
ADX25-4
ADX25-4 - 25HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX25-4
AMEADX25-4
lease to own for as little as:$54 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$2,679.00

19
ADX30-4
ADX30-4 - 30HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX30-4
AMEADX30-4
lease to own for as little as:$64 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$3,179.00

19
ADX40-4
ADX40-4 - 40HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX40-4
AMEADX40-4
lease to own for as little as:$82 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$4,079.00

19
ADX50-4
ADX50-4 - 50HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX50-4
AMEADX50-4
lease to own for as little as:$98 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$4,879.00

19
ADX60-4
ADX60-4 - 60HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX60-4
AMEADX60-4
lease to own for as little as:$114 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$5,679.00

19
ADX75-4
ADX75-4 - 75HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX75-4
AMEADX75-4
lease to own for as little as:$132 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$6,579.00

19
ADX100-4
ADX100-4 - 100HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX100-4
AMEADX100-4
lease to own for as little as:$204 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$10,208.00

19
ADX150-4
ADX150-4 - 150HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX150-4
AMEADX150-4
lease to own for as little as:$272 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$13,608.00

19
ADX200-4
ADX200-4 - 200HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX200-4
AMEADX200-4
lease to own for as little as:$395 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$19,766.00

19
ADX300-4
ADX300-4 - 300HP EXTREME DUTY SMART ROTARY PHASE CONVERTER 440 - 480 VOLT
FREE FREIGHT, UL APPROVED, RUBBER MOUNTS & GREASELIFETIME WARRANTY
Mfg. item #: ADX300-4
AMEADX300-4
lease to own for as little as:$531 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
NEW ITEM
$26,566.00

19
Copyright © 2018 Smith-Hamilton, Inc
0.019 180914 07:14
