American Rotary AUL Listed Series

aul series floor unit american rotary aul phase converter

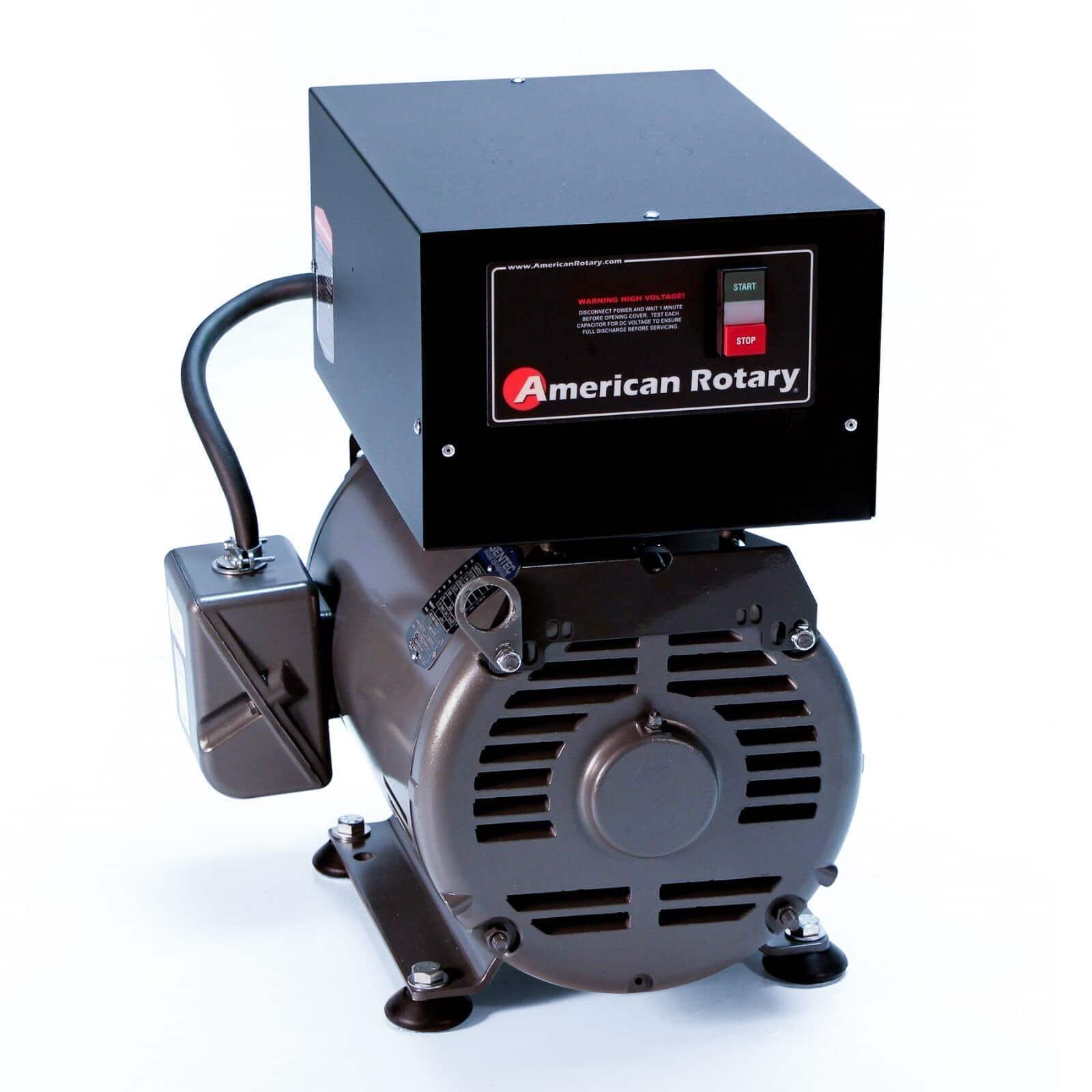

Floor Unit Shown Wall Unit Shown



Quick Sizing Guide
Phase Converter Model 3 5 7.5 10 15 20 25 30 40 50 60 75
Single motor start max. (HP) 1.5 2.5 3.5 5 7.5 10 12.5 15 20 25 30 40
Total Combined Loads Call for Combined Load Sizing
CNC/VFD (HP) 1.5 2.5 3.5 5 7.5 10 12.5 15 20 25 30 40
Resistive/Oven (amps) 4.8 7.5 11 14 21 27 34 40 52 65 75 100
Rectified/Welder (amps) 4.8 7.5 11 14 21 27 34 40 52 65 75 100



Models
AUL05 5KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL10 10KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL15 15KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL20 20KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL25 25KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL30 30KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL40 40KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL50 50KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL60 60KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL75 75KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter
AUL100 100KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter with Autolink
AUL150 150KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter with Autolink
AUL200 200KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter with Autolink
AUL300 300KVA American Rotary UL Listed AUL Micro Smart Controlled Extreme Duty Digital Rotary Phase Converter with Autolink
Accessories
BREAKERS
100AMP:BKSQDQO3100 3 PHASE, 100 AMP LOAD CENTER BREAKER
10AMP:BKSQDQ0310 3 PHASE, 10 AMP LOAD CENTER BREAKER
10AMP:BKSQDQOU310 3 PHASE, 10AMP PANEL MOUNT BREAKER
15AMP:BKSQDQO315 3 PHASE, 15 AMP LOAD CENTER BREAKER
15AMP:BKSQDQOU315 3 PHASE, 15AMP PANEL MOUNT BREAKER
20AMP:BKSQDQO320 3 PHASE, 20 AMP LOAD CENTER BREAKER
20AMP:BKSQDQOU320 3 PHASE, 20AMP PANEL MOUNT BREAKER
20AMP:ECBLK512 20AMP CONNECTOR BODY RECEPTICAL
20AMP:ECBLK513 20 AMP CONNECTOR BODY PLUG
20AMP:ECBLK516 20AMP FLUSH MOUNT RECEPTACLE
25AMP:BKSQDQO325 3 PHASE, 25 AMP LOAD CENTER BREAKER
25AMP:BKSQDQOU325 3 PHASE, 25AMP PANEL MOUNT BREAKER
30AMP:BKSQDQO330 3 PHASE, 30 AMP LOAD CENTER BREAKER
30AMP:BKSQDQOU330 3 PHASE, 30AMP PANEL MOUNT BREAKER
30AMP:ECBLK517 30 AMP CONNECTOR BODY PLUG
30AMP:ECBLK518 30 AMP FLUSH MOUNT RECEPTACLE
30AMP:ECBLK519 30 AMP CONNECTOR BODY RECEPTICAL
35AMP:BKSQDQO335 3 PHASE, 35 AMP LOAD CENTER BREAKER
35AMP:BKSQDQOU335 3 PHASE, 35AMP PANEL MOUNT BREAKER
40AMP:BKSQDQO340 3 PHASE, 40 AMP LOAD CENTER BREAKER
40AMP:BKSQDQOU340 3 PHASE, 40AMP PANEL MOUNT BREAKER
45AMP:BKSQDQOU345 3 PHASE, 45AMP PANEL MOUNT BREAKER
480V 480v 1PH input upgrade
50AMP:BKSQDQO350 3 PHASE, 50 AMP LOAD CENTER BREAKER
50AMP:BKSQDQOU350 3 PHASE, 50AMP PANEL MOUNT BREAKER
60AMP:BKSQDQO360 3 PHASE, 60 AMP LOAD CENTER BREAKER
60AMP:BKSQDQOU360 3 PHASE, 60AMP PANEL MOUNT BREAKER
70AMP:BKSQDQO370 3 PHASE, 70 AMP LOAD CENTER BREAKER
70AMP:BKSQDQOU370 3 PHASE, 70AMP PANEL MOUNT BREAKER
80AMP:BKSQDQO380 3 PHASE, 80 AMP LOAD CENTER BREAKER
80AMP:BKSQDQOU380 3 PHASE, 80AMP PANEL MOUNT BREAKER
90AMP:BKSQDQO390 3 PHASE, 90 AMP LOAD CENTER BREAKER
ARQ002ERCF 1ph 2000VA 120x240V-12/24V 50/60Hz
ARQ003ERCF 1ph 3000VA 120x240V-12/24V 50/60Hz
ARQ005ERCF 1ph 5000VA 120x240V-12/24V 50/60Hz
Isolation Transformers
ARSG3A0015BK 15KVA 3ph 208-480v Isolation Transformer
ARSG3A0015DB 15KVA 3ph 240-208v Isolation Transformer
ARSG3A0015DK 15KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0030BK 30KVA 3ph 208-480v Isolation Transformer
ARSG3A0030DB 30KVA 3ph 240-208v Isolation Transformer
ARSG3A0030DK 30KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0045BK 45KVA 3ph 208-480v Isolation Transformer
ARSG3A0045DB 45KVA 3ph 240-208v Isolation Transformer
ARSG3A0045DK 45KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0075BK 75KVA 3ph 208-480v Isolation Transformer
ARSG3A0075DB 75KVA 3ph 240-208v Isolation Transformer
ARSG3A0075DK 75KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0112BK 112KVA 3ph 208-480v Isolation Transformer
ARSG3A0112DB 112KVA 3ph 240-208v Isolation Transformer
ARSG3A0112DK 112KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0150BK 150KVA 3ph 208-480v Isolation Transformer
ARSG3A0150DB 150KVA 3ph 240-208v Isolation Transformer
ARSG3A0150DK 150KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0225DB 225KVA 3ph 240-208v Isolation Transformer
ARSG3A0225DK 225KVA 3ph 240 to 480v Isolation Transformer
ARSG3A0300DB 300KVA 3ph 240-208v Isolation Transformer
ARSG3A0300DK 300KVA 3ph 240 to 480v Isolation Transformer
AutolinkS
AUTOLINK2UNITS 2 Unit Autolink (LINKS 2x Phase Converters Together)
AUTOLINK3UNITS 3 Unit Autolink (LINKS 3x Phase Converters Together)
AUTOLINK4UNITS 4 Unit Autolink (LINKS 4x Phase Converters Together)
DISCONNECTS
DSSQDDU321(30AMPS) 3 PHASE INDOOR 30 AMP DISCONNECT
DSSQDDU321RB(30A) 3 PHASE OUTDOOR 30 AMP DISCONNECT
DSSQDDU322(60AMPS) 3 PHASE INDOOR 60 AMP DISCONNECT
DSSQDDU322RB(60A) 3 PHASE OUTDOOR 60 AMP DISCONNECT
DSSQDDU323(100AMPS) 3 PHASE INDOOR 100 AMP DISCONNECT
DSSQDDU324(200AMPS) 3 PHASE INDOOR 200 AMP DISCONNECT
DSSQDDU324RB(200A) 3 PHASE OUTDOOR 200 AMP DISCONNECT
DSSQDDU32RB(100A) 3 PHASE OUTDOOR 100 AMP DISCONNECT
Hardware Packs
FEET20-75 Hardware Pack with bolt down feet for 20-75 KVA untis
HARDWAREPACKGREEN(AR5-20) Hardware Pack for AR5-20
HARDWAREPACKRED(AD(X)15-75) Hardware Pack for AD(X) 15-75
HARDWAREPACKSMALLBOLTDOWNFEET(5-15) Hardware Pack with bolt down feet for 5-15 KVA units
HARDWAREPACKYELLOW(AD(X)5-10&AR30) Hardware Pack for AD(X) 5-10 & AR30
IDLERGREASE Grease for the idlers (requied on sizes 20KVA and up)
LOAD CENTERS
LCSQDQO312L125G(12SLOT) INDOOR 3-PHASE 125 AMP 12-POLE LOAD CENTER W/FIXED MAINS
LCSQDQO33OL200G(30SLOT) INDOOR 3-PHASE 200 AMP 30 SPACE LOAD CENTER W/ FIXED MAINS
LCSQDQO342L225G(42SLOT) INDOOR 3-PHASE 225 AMP 42 SPACE LOAD CENTER W/ FIXED MAINS
LCSQDQOC318L200G(18SLOT) INDOOR 3-PHASE 200 AMP 18-POLE LOAD CENTER W/ FIXED MAINS
MECHANICALSWITCHASSEMBLY(PUSHBUTTON) REPLACEMENT ON/OFF BUTTON
Phase Monitor kit
MULTI-LOADPHASEMONITORTIMER Phase Monitor kit - Protects equipment from 3 phase power interuption
PHASEMONITOR Phase Monitor kit - Protects equipment from 3 phase power interuption
PHASEMONITORWITHTIMER Phase Monitor w/ Timer kit - Automatically starts phase converter when needed and protects equipment from 3 phase power interruption
SDSA1175(240V1PH) INPUT SURGE SURGE SUPRESSOR
FLOOR MOUNT KITS
SUBFMKIT05 FLOOR MOUNT KIT FOR 3 KVA UNTIS
SUBFMKIT10,15 FLOOR MOUNT KIT FOR 10-15 KVA UNITS
SUBFMKIT25,30 FLOOR MOUNT KIT FOR 25-30 KVA UNITS
SUBFMKIT40,50,60,75 FLOOR MOUNT KIT FOR 40-75 KVA UNITS
SUBFMKITA-D/X/UL20 FLOOR MOUNT KIT FOR A-D/X/UL20 UNITS
SUBFMKITAR20 FLOOR MOUNT KIT FOR AR20
Autotransformers
TFHAMY009CECB3L0U 9KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY009QTCF3L0U 9KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY015CECB3L0U 15KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY015QTCF3L0U 15KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY030CECF3L0U 30KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY030QTCN3L0U 30KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY045CECF3L0U 45KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY045QTCH3L0U 45KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY075CECN3L0U 75KVA 3ph 240-208V 60Hz Autotransformers
TFHAMY075QTCH3L0U 75KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY112QTCH3L0U 112KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
TFHAMY150QTCH3L0U 150KVA 3ph 600,480,400,240,208V 60Hz Autotransformers
ULLISTING UL fee for AI Units
Remotes
WIREDREMOTESTART WIRED REMOTE SWITCH
WIRELESSREMOTE WIRELESS REMOTE START SWITCH
WIRELESSREMOTEANTENNA WIRELESS REMOTE ANTENNA
SWITCHWIRE-WRBLK202 **1 LB PER 12 IN OF WIRE WIRED REMOTE SWITCH WIRE





Click here to download Installation and Data Sheet
Click here to download Specifications

American Rotary has been making premium rotary phase converters for more than 20 years. American Rotary provides industry leading telephone suport for technical, application, and sixing quesitons. American Rotary stands behind its products with the best warranty in the industry. American Rotary uses premium componests to ensure that its products preform for you. American Rotary is a UL Certified Control Panel Builder, and its rotary phase converters are avaliable UL listed to US and Canadian Saftey Standards. American Rotary has partnered with Baldor Electric one of the worlds largest and most respected manufacturers to supplu its custom engineered idler generators. American Rotary is listed with B and B as well as Better Business Bureau, and is committted to high ethical and privacy standards.

American Rotarys Wisconsin based team is dedicated to techincal support customer service and delivering value to its customers. With in house R and D, engineering tech support and manufacturing, American Rotary delivers what you need. Listed with D and B and with the Better Business Bureau, and is committted to providing you with a great buying experience. American Rotary challenges you to compare our warranties to any other manufacturers American Rotary stands behind its units!

American Rotary offers a variety of options that match the right phase converter preformace to your specific needs. Some of our choices include:

AUL - Our AUL unit comes with all the benifits and features of our ADX model with added componets to not only meet, but exceed UL safety Guidlings. These units come UL certified with the appropriate documenation. UL certification is not required in all locations or installations so please check with your local inspectors to see if the AUL model is right for you.

Control Panel

  • Push Button On / Off Switch with PowerGuard Protection
  • Heavy Duty Preformance, 100 percent Power
  • Powder Coated Steel Enclosures for attractive and durable appearance
  • Integrated Protection in case of power interruption
  • Easy access terminal block wiring connections
  • Best Warranty in the Industry

Idler / Generator

  • Designed and engineered specifically for phase conversion
  • Achieve optimized voltage and current blanace throughout the full load of the converter
  • Soft Start Rating by drastically reducing inrush current upon startup
  • Runs cool, quietly and efficiently with or without load applied
  • Manufacted in the USA by Baldor Electric

Optional Upgrades

  • Floor mount
  • 3ph Breaker
  • 3ph Receptical
  • Surge protection
  • Wired or Wireless Remote Switch
  • Automation Control (not avaliable on AR model)
  • Phase Monitoring (not avaliable on AR model)
  • 480V - special order (not avaliable on AR model)
Made in the USA
cutaway picture

Designed and Manufactured in Wisconsin  The focus of American Rotary, is always on innovative engineering, product development, and outstanding customer service. The results are great American made phase converters that work flawlessly, provide unparallleld performance and are easy to install, all at an affordable price.

Keeping Jobs at Home  Keeping jobs at home not only helps our economy, but it is critical for quality control and for the customer serivce American Rotary provides for all our customers.

Passion for Peformance  American Rotary's breakthrough design of the MicroSmart controller (AD, ADX) allowed it to create the first true digitally controlled phase converter in the industry. Its digital accuracy provides an impressive ability to adapt to changing loads, sagging voltages and gives our phase converters the feel and performance you expect from high precision machines.

GENTEC Baldor Partnership  The single largest component in a phase converter is the GENTEC/Baldor VIT Generator. American Rotarys engineering departments spent over 2 years engineering the perfect generator for a Rotary Phase Converter, and its patent technology is the best in the industry. American Rotarys custom generator is one of a kind in our industry and outperforms the standard motor/idlers found on a typical phase converter.

keeping jobs at home    features-passion-for-performance   gentec baldor partnership
Gentec VIT Generator
designed-for-phase-converters
Stable Voltage and Sinewaves    Open Design (ODP) vs. Enclosed Design (TEFC)    Voltage Stabilization
Full Current Starter
Built-in Magnetic Starter

Built-in Magnetic Starter  American Rotary's magnetic starter provides the means to continuously control your American Rotary phase converter remotely, from multiple locations or in conjunction with automatic equipment. See the Expandable Design – Remote Start Feature for more information on remote start options.

Quality Control  The American Rotary manufacturing team assembles its starter modules using torque drivers that are tested and certified as a requirement for UL certification at our Wisconsin manufacturing plant. Every control panel American Rotary builds passes over 50 criteria for quality certification before it ships your new phase converter to you!

Designed for the Hardest Start Ups  American Rotary starters are custom designed to meet even the most difficult loads and the most stringent standards. We oversize the starters to ensure they can handle the entire starting current and continuous load. All American Rotary phase converters undergo rigorous simulation and testing in its R&D department to ensure your equipment and operators are safe and protected.

Be Safe and Aware!  A starter is not designed or rated to be the safety disconnect. Be aware of phase converters that claim their starter disconnects all three lines of output. A properly used starter only controls the start/stop of the phase converter and does not disconnect the single phase lines. American Rotary will always put your safety first.

Quality Control    Designed for the Hardest Start Ups    Be Safe and Aware
Expandable Design
Double or Triple your power!

Double or Triple your power!  All American Rotary Phase Converters are capable of phase synchronization for increased capacity. Converters can be daisy chained together to double, triple, quadruple your power. Call or email the American Rotary technical staff for more information on available options.

Changes with your hobby or business.  As you add more equipment or change the type of equipment you run, the MicroSmart™ controller adapts with your shop needs. Powering your shop or business with a SMARTConverter™ (AD, ADX) ensures your equipment gets the right power at the right time, even as your business changes and grows.

Remote Start  All American Rotary Phase Converters are designed to work with wired and wireless remote starts. Our long range radio frequency remote starter and receiver works seamlessly with our latching full current magnetic starter to remotely control your converter. Wireless remotes feature 500’ range and include high gain, omni directional antenna and a key FOB or wall mount transmitter. You can also control your converter with our wired remotes!

Plug N Play  American Rotary realizes that some equipment just isn’t meant to be hard wired. So it gave every phase converter a space for a twist-lock, 3-phase receptacle and a flush mount 3-phase breaker Great for welders, battery chargers, mobile jobsite converters and more.

Changes with your hobby or business.    remote-start   Plug N Play
Easy Installation
easy-wiring

Easy Access Wiring  Designed to meet UL minimum space requirements, American Rotary enclosures have removable sides so that the oversized terminal blocks can be accessed with ease. The cover is hinged and can be easily removed.

Oversized Terminal Blocks  Copper Aluminum Alloy and Nylene terminal blocks are specifically designed and molded for American Rotary phase converters in order to provide easy organized connections for a carefree, UL compliant installation. Terminal blocks are clearly marked for trouble-free installations.

Knockouts No drilling or punching needed! All the necessary knockouts for installation are provided and powder coated to prevent rust. The knockouts are sized for the maximum anticipated conduit for proper wire gauge per NEC

Laser Precision  The design flexibility and time savings features that laser cut steel provides is an important part of the quality of an American Rotary phase converter. From knockouts for breakers and receptacles, to perfectly mitered corners, laser manufacturing results in a longer lasting, better quality product.

Oversized Terminal Blocks    knockouts   Laser Precision
MicroSmart Controller
smart-control

SMART CONTROL  The American Rotary MicroSmart™ Controller is a patent technology which provides precise control of the phase converter. It monitors the voltage every 50 milliseconds providing better voltage control, prolonging the life of the converter, handles significantly more load capacity (ADX and AI), and enabling several failsafe features that are only available on American Rotary’s SMART Series™ phase converters. (AD, ADX, and AI units only)

Block Diagram  Smart Series™ digital rotary phase converters (AD, ADX, and AI) run on our MicroSmart™ Controller. This custom designed microprocessor delivers the right power at the right time in both start-up and run mode. The MicroSmart™ controller monitors and takes a sampling of the voltage every 50 milliseconds on all three lines of the output voltage.. (AD, ADX, and AI units only)

Proprietary Technology  American Rotary has invested extensively in research and design to create the state of the art MicroSmart™ Digital Controller. Other so called “digital” rotary phase converters use an off the shelf voltage relay that does not monitor the voltage like the MicroSmart™ Controller. (AD, ADX, and AI units only)

Invest in power  All American Rotary Smart Series™ phase converters are designed to grow with your business. Our converters are engineered to allow numerous upgrade options, including; Hardware, Software and Kit upgrades. You can also run our phase converters in parallel and double your power to adapt to your changing needs. Need more power? More precise power? Just turn on your American Rotary Smart Series™ and let our technology do the work. (AD, ADX, and AI units only)

Block Diagram   Proprietary Technology     Invest in power
CTR Current Control
ctr current control

Powerful Load Starting Capability.  High inertia and high friction loads such as air-compressors, blower, fans, flywheel & lifting loads can draw 6 times FLA (full load amps) for several seconds during start up. The CTR acts as a stabilizer, ensuring consistent voltage and current. CTR allows our ADX and AI phase converters to start your high inertia machinery with ease in about 1/3 the time of a standard phase converter.  (ADX and AI units only)

Engineered to Perform  American Rotary leads the industry with its innovative CTR technology. CTR (Current Transient Reactor) along with the MicroSmart ControllerTM allows high currents to be drawn through the phase converter producing more torque while maintaining voltage and power. (ADX and AI units only)

Reliable and Long Lasting Phase Converters.  American Rotary's proprietary CTR technology provides a layer of protection against external transient current spikes on the incoming single phase line at start up. Our CTR technology allows us to offer the best phase converter warranty in the industry. (ADX and AI units only)

Reliable and Long Lasting Equipment  Even if your equipment doesn’t need incredible starting performance, the American Rotary CTR technology will ensure your equipment starts as designed. Fast start up times ensure your equipment will run cooler, run more reliably and last longer. The ADX and AI lines are designed to protect and handle even the hardest loads. (ADX and AI units only)



General Specifications
Model 5 10 15 20 25 30 40 50 60 75
KVA 2.6 5.6 7.7 10 12.5 15 20 25 30 37.5
Approximate Idle Amps 0.625 1.23 1.87 2.48 3.1 3.73 4.97 6.2 7.45 9.17
Efficiency > 98 percent (at power factor of 0.9)
Idel Power Consumption (kW) 0.3 0.3 0.45 0.6 0.74 0.90 1.2 1.5 1.8 2.1
Operating Reliability MTBF 50,000
Single Phase Requirements
Input Voltage 208 - 250
Frequecy (Hz) 50 / 60
Minimum Wire Size 12 10 8 6 4 3 1 1 / O 2 / O 4 / O
Minimum Breaker Size 20 40 50 60 80 100 125 150 175 200
Three Phase Specifications
Voltage Balance 0 - 5 percent
Maximum Starting Current 7amps / 2.5hp 14amps / 5hp 21amps / 7.5hp 28amps / 10HP 35amps / 12.5hp 42amps / 15HP 56amp / 20hp 70amps / 25hp 84amps / 30hp 105amps / 37hp
Maximum Running Current 14aps / 5hp 28amps / 10hp 42amps / 15hp 56amps / 20HP 70amps / 25hp 84amps / 30HP 112amps / 40hp 140apms / 50hp 168amps / 60hp 210amps / 75hp
Physical Specifications
Idler Insulation Class F
Ider RPM 1750
Per Unity H x W x D (in) 11.5 x 12.5 x 8.5 12.5 x 12 x
10
14.5 x 15.5 x
11
17.5 x 14 x
12
18.75 x 11.75 x 18.5 21 x
19 x
14
22.5 x 21 x 16 22.5 x 22 x 17
Autolink Panel (in) 16 x 12 x 8 20 x 14 x 8 24 x 18 x 8
Panel Style Nema 1 / Type 1 Indoor
Total Weight (lbs) 93 138 219 266 290 352 368 476 538 617



We get calls from our customers wondering what the differences are among all the different phase converters on the market. Granted they all do the same basic job of turning your single-phase power into three-phase power, but the quality of the power and the efficiency isn’t always there. With American Rotary’s industry leading designs and technology, you will be producing the cleanest and most balanced three-phase on the market and you will be doing it very efficiently and cost effectively as well.

There are a lot of features that set an American Rotary Phase converter apart from the rest. American Rotary’s team is constantly doing research and development to constantly make sure that our phase converters are providing our customers with the best alternative three phase solution as well as making sure it is compatible with new equipment. We also take feedback from our customers to hear on ways the converter would work better for them. Here are just some ways how American Rotary is on the leading edge of phase converter technology.

VIT Generator- American Rotary worked with Baldor directly to design and engineer a custom soft starting idler generator. This idler features Variable Impendence Technology that uses a 1/3 of the inrush current of a comparable three phase motor of its size. This is a true soft starting feature that will make the phase converter much easier to start on your single-phase utility power. The idlers are also designed to produce a true three phase sine wave providing your equipment with a true three phase signal. By having a true three phase sine wave, this prevents harmonics from being in the line that are caused by distorted sine waves. On top of all this, the VIT Generator will run quieter, cooler, and more efficiently than a phase converter that is using a modified three phase motor as the idler. The custom designed VIT generator will operate at greater than 98 percent efficiency

american-rotary-label

american-rotary-microsmart MicroSmart Controller- The American Rotary Digital Series (AD, ADX, AMP, AI) all feature our patented Digital MicroSmart Controller. This device monitors and controls the voltages across the three legs of power to ensure that clean balanced power is being produce and provided to your equipment. With the having the MicroSmart Controller, the phase converter will produce a three-phase power signal that is at a 5% or greater voltage balance across the three legs compared to standard utility that is typically around 10% balance. This is an ideal feature to have on your equipment, the cleaner the power is that your equipment is being provided, the more efficiently it will run. The more efficiently it runs, the less stress it is under and will last longer. This is an especially important feature to have when running voltage sensitive equipment such as CNC machines, Welders, Compressors, and other computer controls.
american-rotary-ctr-tech CTR Technology- Featured on the ADX and AI series phase converter the CTR Coil allows higher currents to flow through the phase converter which will produce more torque and still maintain your current and voltage balance. This is an important feature to have when starting high torque or high inertia loads that have a hard start. This can be seen on air compressors, vacuum motors, elevators, and hoists just to name a few. With CTR Technology and allowing the more current to flow, this will help shorten the start time of your equipment which in turn puts less strain on your equipment.
american-rotary-expandable Expandable Design- With American Rotary phase converters you have the option to expand if your needs change. As time goes on and our businesses grow so does the number of machines required to run your business. With an American Rotary phase converter, we have designed the units so that you can expand your phase converter as your needs change.

Customer support- One of the most important features that American Rotary has to offer is our industry leading support. During the sizing process one, of our Application Engineers will help guide you through finding which American Rotary phase converter will work best for your needs. But it doesn’t stop there, American Rotary stands behind our products with the best warranties in the industries. You are able to reach a member of the American Rotary team during our after-hours support should any questions arise. American Rotary is available to our customers through many different channels; phone, email, social media, and online chat just to name a few.

As you can tell, there are many benefits with choosing American Rotary for your three-phase power needs. These are features that will make for an easy buying process for your phase converter, easy hook up, easy operation, and more importantly run your equipment safely how it is designed to be ran. Give American Rotary a call to see how these features will benefit you and the operation of your equipment. American Rotary is always here to help you make your American Dreams your Reality.

AUL05
5KVA AMERICAN ROTARY

UL LISTED
AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 87 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL05
AMEAUL05
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$1,173.00

41
AUL10
10KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 133 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL10
AMEAUL10
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$1,488.00

41
AUL15
15KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 211 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL15
AMEAUL15
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$2,248.00

41
AUL20
20KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 258 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL20
AMEAUL20
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$2,474.00

41
AUL25
25KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 285 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL25
AMEAUL25
lease to own for as little as:$52 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$3,035.00

41
AUL30
30KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 353 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL30
AMEAUL30
lease to own for as little as:$61 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$3,597.00

41
AUL40
40KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 472 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL40
AMEAUL40
lease to own for as little as:$79 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$4,608.00

41
AUL50
50KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 488 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL50
AMEAUL50
lease to own for as little as:$93 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$5,507.00

41
AUL60
60KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 533 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL60
AMEAUL60
lease to own for as little as:$107 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$6,406.00

41
AUL75
75KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER ++ STILL PROUDLY MADE IN THE USA NET WGT = 577 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL75
AMEAUL75
lease to own for as little as:$124 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$7,417.00

41
AUL100
100KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER WITH AUTOLINK ++ STILL PROUDLY MADE IN THE USA NET WGT = 1026 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL100
AMEAUL100
lease to own for as little as:$193 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$11,664.00

41
AUL150
150KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER WITH AUTOLINK ++ STILL PROUDLY MADE IN THE USA NET WGT = 1204 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL150
AMEAUL150
lease to own for as little as:$254 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$15,484.00

41
AUL200
200KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER WITH AUTOLINK ++ STILL PROUDLY MADE IN THE USA NET WGT = 2002 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL200
AMEAUL200
lease to own for as little as:$372 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$22,878.00

41
AUL300
300KVA AMERICAN ROTARY
UL LISTED AUL MICRO SMART CONTROLLED EXTREME DUTY DIGITAL ROTARY PHASE CONVERTER WITH AUTOLINK ++ STILL PROUDLY MADE IN THE USA NET WGT = 2358 LBS
CALL 800-458-3687 EXT 1 FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS ITEM
Mfg. item #: AUL300
AMEAUL300
lease to own for as little as:$494 per month!
Free Freight Including Residential Delivery. Liftgate Service add $99.0044
$30,518.00

41
100AMP:BKSQDQO3100
3 PHASE, 100 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 100AMP:BKSQDQO3100
AME100AMP:BK{02
FREE shipping when ordered with a machine from this manufacturer.20
$149.00

41
10AMP:BKSQDQ0310
3 PHASE, 10 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 10AMP:BKSQDQ0310
AME10AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
10AMP:BKSQDQOU310
3 PHASE, 10AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 10AMP:BKSQDQOU310
AME10AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

41
15AMP:BKSQDQO315
3 PHASE, 15 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 15AMP:BKSQDQO315
AME15AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
15AMP:BKSQDQOU315
3 PHASE, 15AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 15AMP:BKSQDQOU315
AME15AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

41
20AMP:BKSQDQO320
3 PHASE, 20 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 20AMP:BKSQDQO320
AME20AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
20AMP:BKSQDQOU320
3 PHASE, 20AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 20AMP:BKSQDQOU320
AME20AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

41
20AMP:ECBLK512
20AMP CONNECTOR BODY RECEPTICAL ** WEIGHT = 1 LB
Mfg. item #: 20AMP:ECBLK512
AME20AMP:ECB{00
FREE shipping when ordered with a machine from this manufacturer.20
$55.00

41
20AMP:ECBLK513
20 AMP CONNECTOR BODY PLUG ** WEIGHT = 1 LB
Mfg. item #: 20AMP:ECBLK513
AME20AMP:ECB{01
FREE shipping when ordered with a machine from this manufacturer.20
$50.00

41
20AMP:ECBLK516
20AMP FLUSH MOUNT RECEPTACLE ** WEIGHT = 1 LB
Mfg. item #: 20AMP:ECBLK516
AME20AMP:ECB{02
FREE shipping when ordered with a machine from this manufacturer.20
$50.00

41
25AMP:BKSQDQO325
3 PHASE, 25 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 25AMP:BKSQDQO325
AME25AMP:BKS{00
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
25AMP:BKSQDQOU325
3 PHASE, 25AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 25AMP:BKSQDQOU325
AME25AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

41
30AMP:BKSQDQO330
3 PHASE, 30 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 30AMP:BKSQDQO330
AME30AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
30AMP:BKSQDQOU330
3 PHASE, 30AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 30AMP:BKSQDQOU330
AME30AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

41
30AMP:ECBLK517
30 AMP CONNECTOR BODY PLUG ** WEIGHT = 1 LB
Mfg. item #: 30AMP:ECBLK517
AME30AMP:ECB{00
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

41
30AMP:ECBLK518
30 AMP FLUSH MOUNT RECEPTACLE ** WEIGHT = 1 LB
Mfg. item #: 30AMP:ECBLK518
AME30AMP:ECB{01
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

41
30AMP:ECBLK519
30 AMP CONNECTOR BODY RECEPTICAL ** WEIGHT = 1 LB
Mfg. item #: 30AMP:ECBLK519
AME30AMP:ECB{02
FREE shipping when ordered with a machine from this manufacturer.20
$65.00

41
35AMP:BKSQDQO335
3 PHASE, 35 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 35AMP:BKSQDQO335
AME35AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
35AMP:BKSQDQOU335
3 PHASE, 35AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 35AMP:BKSQDQOU335
AME35AMP:BKS{00
FREE shipping when ordered with a machine from this manufacturer.20
$109.00

41
40AMP:BKSQDQO340
3 PHASE, 40 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 40AMP:BKSQDQO340
AME40AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
40AMP:BKSQDQOU340
3 PHASE, 40AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 40AMP:BKSQDQOU340
AME40AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$119.00

41
45AMP:BKSQDQOU345
3 PHASE, 45AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 45AMP:BKSQDQOU345
AME45AMP:BKS{00
FREE shipping when ordered with a machine from this manufacturer.20
$129.00

41
480V
480V 1PH INPUT UPGRADE ** WEIGHT = 1 LB
Mfg. item #: 480V
AME480V
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$200.00

41
50AMP:BKSQDQO350
3 PHASE, 50 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 50AMP:BKSQDQO350
AME50AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$119.00

41
50AMP:BKSQDQOU350
3 PHASE, 50AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 50AMP:BKSQDQOU350
AME50AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$129.00

41
60AMP:BKSQDQO360
3 PHASE, 60 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 60AMP:BKSQDQO360
AME60AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$119.00

41
60AMP:BKSQDQOU360
3 PHASE, 60AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 60AMP:BKSQDQOU360
AME60AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$129.00

41
70AMP:BKSQDQO370
3 PHASE, 70 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 70AMP:BKSQDQO370
AME70AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$129.00

41
70AMP:BKSQDQOU370
3 PHASE, 70AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 70AMP:BKSQDQOU370
AME70AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$159.00

41
80AMP:BKSQDQO380
3 PHASE, 80 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 80AMP:BKSQDQO380
AME80AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$139.00

41
80AMP:BKSQDQOU380
3 PHASE, 80AMP PANEL MOUNT BREAKER ** WEIGHT = 1 LB
Mfg. item #: 80AMP:BKSQDQOU380
AME80AMP:BKS{01
FREE shipping when ordered with a machine from this manufacturer.20
$179.00

41
90AMP:BKSQDQO390
3 PHASE, 90 AMP LOAD CENTER BREAKER ** WEIGHT = 1 LB
Mfg. item #: 90AMP:BKSQDQO390
AME90AMP:BKS{02
FREE shipping when ordered with a machine from this manufacturer.20
$149.00

41
ARQ002ERCF
1PH 2000VA 120X240V-12/24V 50/60HZ ** WEIGHT = 46 LBS
Mfg. item #: ARQ002ERCF
AMEARQ002ERCF
FREE shipping when ordered with a machine from this manufacturer.20
$464.00

41
ARQ003ERCF
1PH 3000VA 120X240V-12/24V 50/60HZ ** WEIGHT = 103 LBS
Mfg. item #: ARQ003ERCF
AMEARQ003ERCF
FREE shipping when ordered with a machine from this manufacturer.20
$540.00

41
ARQ005ERCF
1PH 5000VA 120X240V-12/24V 50/60HZ ** WEIGHT = 105 LBS
Mfg. item #: ARQ005ERCF
AMEARQ005ERCF
FREE shipping when ordered with a machine from this manufacturer.20
$916.00

41
ARSG3A0015BK
15KVA 3PH 208-480V ISOLATION TRANSFORMER ** WEIGHT = 180 LBS
Mfg. item #: ARSG3A0015BK
AMEARSG3A0015BK
FREE shipping when ordered with a machine from this manufacturer.20
$2,105.78

41
ARSG3A0015DB
15KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 175 LBS
Mfg. item #: ARSG3A0015DB
AMEARSG3A0015DB
FREE shipping when ordered with a machine from this manufacturer.20
$2,105.78

41
ARSG3A0015DK
15KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 175 LBS
Mfg. item #: ARSG3A0015DK
AMEARSG3A0015DK
FREE shipping when ordered with a machine from this manufacturer.20
$2,105.78

41
ARSG3A0030BK
30KVA 3PH 208-480V ISOLATION TRANSFORMER ** WEIGHT = 275 LBS
Mfg. item #: ARSG3A0030BK
AMEARSG3A0030BK
FREE shipping when ordered with a machine from this manufacturer.20
$2,712.15

41
ARSG3A0030DB
30KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 290 LBS
Mfg. item #: ARSG3A0030DB
AMEARSG3A0030DB
FREE shipping when ordered with a machine from this manufacturer.20
$2,712.15

41
ARSG3A0030DK
30KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 285 LBS
Mfg. item #: ARSG3A0030DK
AMEARSG3A0030DK
FREE shipping when ordered with a machine from this manufacturer.20
$2,712.15

41
ARSG3A0045BK
45KVA 3PH 208-480V ISOLATION TRANSFORMER ** WEIGHT = 355 LBS
Mfg. item #: ARSG3A0045BK
AMEARSG3A0045BK
FREE shipping when ordered with a machine from this manufacturer.20
$2,888.55

41
ARSG3A0045DB
45KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 370 LBS
Mfg. item #: ARSG3A0045DB
AMEARSG3A0045DB
FREE shipping when ordered with a machine from this manufacturer.20
$2,888.55

41
ARSG3A0045DK
45KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 345 LBS
Mfg. item #: ARSG3A0045DK
AMEARSG3A0045DK
FREE shipping when ordered with a machine from this manufacturer.20
$2,888.55

41
ARSG3A0075BK
75KVA 3PH 208-480V ISOLATION TRANSFORMER ** WEIGHT = 565 LBS
Mfg. item #: ARSG3A0075BK
AMEARSG3A0075BK
lease to own for as little as:$66 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$4,376.93

41
ARSG3A0075DB
75KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 585 LBS
Mfg. item #: ARSG3A0075DB
AMEARSG3A0075DB
lease to own for as little as:$66 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$4,376.93

41
ARSG3A0075DK
75KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 585 LBS
Mfg. item #: ARSG3A0075DK
AMEARSG3A0075DK
lease to own for as little as:$66 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$4,376.93

41
ARSG3A0112BK
112KVA 3PH 208-480V ISOLATION TRANSFORMER ** WEIGHT = 770 LBS
Mfg. item #: ARSG3A0112BK
AMEARSG3A0112BK
lease to own for as little as:$80 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$5,358.15

41
ARSG3A0112DB
112KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 720 LBS
Mfg. item #: ARSG3A0112DB
AMEARSG3A0112DB
lease to own for as little as:$80 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$5,358.15

41
ARSG3A0112DK
112KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 705 LBS
Mfg. item #: ARSG3A0112DK
AMEARSG3A0112DK
lease to own for as little as:$80 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$5,358.15

41
ARSG3A0150BK
150KVA 3PH 208-480V ISOLATION TRANSFORMER ** WEIGHT = 970 LBS
Mfg. item #: ARSG3A0150BK
AMEARSG3A0150BK
lease to own for as little as:$106 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$7,078.05

41
ARSG3A0150DB
150KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 970 LBS
Mfg. item #: ARSG3A0150DB
AMEARSG3A0150DB
lease to own for as little as:$106 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$7,078.05

41
ARSG3A0150DK
150KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 935 LBS
Mfg. item #: ARSG3A0150DK
AMEARSG3A0150DK
lease to own for as little as:$106 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$7,078.05

41
ARSG3A0225DB
225KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 1650 LBS
Mfg. item #: ARSG3A0225DB
AMEARSG3A0225DB
lease to own for as little as:$146 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$10,165.05

41
ARSG3A0225DK
225KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 1500 LBS
Mfg. item #: ARSG3A0225DK
AMEARSG3A0225DK
lease to own for as little as:$146 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$10,165.05

41
ARSG3A0300DB
300KVA 3PH 240-208V ISOLATION TRANSFORMER ** WEIGHT = 1950 LBS
Mfg. item #: ARSG3A0300DB
AMEARSG3A0300DB
lease to own for as little as:$204 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$14,189.18

41
ARSG3A0300DK
300KVA 3PH 240 TO 480V ISOLATION TRANSFORMER ** WEIGHT = 2000 LBS
Mfg. item #: ARSG3A0300DK
AMEARSG3A0300DK
lease to own for as little as:$204 per month!
FREE shipping when ordered with a machine from this manufacturer.20
$14,189.18

41
AUTOLINK2UNITS
2 UNIT AUTOLINK ** WEIGHT = 50 LBS
Mfg. item #: AUTOLINK2UNITS
AMEAUTOLINK2{00
FREE shipping when ordered with a machine from this manufacturer.20
$650.00

41
AUTOLINK3UNITS
3 UNIT AUTOLINK ** WEIGHT = 50 LBS
Mfg. item #: AUTOLINK3UNITS
AMEAUTOLINK3{00
FREE shipping when ordered with a machine from this manufacturer.20
$750.00

41
AUTOLINK4UNITS
4 UNIT AUTOLINK ** WEIGHT = 50 LBS
Mfg. item #: AUTOLINK4UNITS
AMEAUTOLINK4{00
FREE shipping when ordered with a machine from this manufacturer.20
$850.00

41
DSSQDDU321(30AMPS)
3 PHASE INDOOR 30 AMP DISCONNECT ** WEIGHT = 5 LBS
Mfg. item #: DSSQDDU321(30AMPS)
AMEDSSQDDU32{04
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$79.00

41   5
DSSQDDU321RB(30A)
3 PHASE OUTDOOR 30 AMP DISCONNECT ** WEIGHT = 5 LBS
Mfg. item #: DSSQDDU321RB(30A)
AMEDSSQDDU32{05
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$135.00

41
DSSQDDU322(60AM
3 PHASE INDOOR 60 AMP DISCONNECT ** WEIGHT = 5 LBS
Mfg. item #: DSSQDDU322(60AM
AMEDSSQDDU32{06
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$99.00

41   4
DSSQDDU322RB(60A)
3 PHASE OUTDOOR 60 AMP DISCONNECT ** WEIGHT = 5 LBS
Mfg. item #: DSSQDDU322RB(60A)
AMEDSSQDDU32{07
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$205.00

41
DSSQDDU323(100A
3 PHASE INDOOR 100 AMP DISCONNECT ** WEIGHT = 15 LBS
Mfg. item #: DSSQDDU323(100A
AMEDSSQDDU32{08
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$199.00

41   5
DSSQDDU324(200A
3 PHASE INDOOR 200 AMP DISCONNECT ** WEIGHT = 52 LBS
Mfg. item #: DSSQDDU324(200A
AMEDSSQDDU32{09
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$349.00

41
DSSQDDU324RB(200A)
3 PHASE OUTDOOR 200 AMP DISCONNECT ** WEIGHT = 52 LBS
Mfg. item #: DSSQDDU324RB(200A)
AMEDSSQDDU32{02
FREE shipping when ordered with a machine from this manufacturer.20
$660.78

41
DSSQDDU32RB(100A)
3 PHASE OUTDOOR 100 AMP DISCONNECT ** WEIGHT = 15 LBS
Mfg. item #: DSSQDDU32RB(100A)
AMEDSSQDDU32{0A
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$335.00

41
FEET20-75
HARDWARE PACK WITH BOLT DOWN FEET FOR 20-75 KVA UNTIS ** WEIGHT = 2 LBS
Mfg. item #: FEET20-75
AMEFEET20-75
FREE shipping when ordered with a machine from this manufacturer.20
$99.95

41
HARDWAREPACKGREEN(AR5-20)
HARDWARE PACK FOR AR5-20 ** WEIGHT = 2 LBS
Mfg. item #: HARDWAREPACKGREEN(AR5-20)
AMEHARDWAREP{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$19.95

41
HARDWAREPACKRED(AD(X)15-75)
HARDWARE PACK FOR AD(X) 15-75 ** WEIGHT = 2 LBS
Mfg. item #: HARDWAREPACKRED(AD(X)15-75)
AMEHARDWAREP{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$29.95

41
HARDWAREPACKSMALLBOLTDOWNFEET(5-15)
HARDWARE PACK WITH BOLT DOWN FEET FOR 5-15 KVA UNITS ** WEIGHT = 3 LBS
Mfg. item #: HARDWAREPACKSMALLBOLTDOWNFEET(5-15)
AMEHARDWAREP{02
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$99.95

41
HARDWAREPACKYELLOW(AD(X)5-10&AR30)
HARDWARE PACK FOR AD(X) 5-10 & AR30 ** WEIGHT = 2 LBS
Mfg. item #: HARDWAREPACKYELLOW(AD(X)5-10&AR30)
AMEHARDWAREP{03
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$29.95

41
IdlerGrease
GREASE FOR THE IDLERS (REQUIED ON SIZES 20KVA AND UP) ** WEIGHT = 1 LB
Mfg. item #: IdlerGrease
AMEIDLERGREASE
FREE shipping when ordered with a machine from this manufacturer.20
$15.00

41   46
LCSQDQO312L125G(12SLOT)
INDOOR 3-PHASE 125 AMP 12-POLE LOAD CENTER W/FIXED MAINS ** WEIGHT = 18 LBS
Mfg. item #: LCSQDQO312L125G(12SLOT)
AMELCSQDQO31{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$179.00

41
LCSQDQO33OL200G(30SLOT)
INDOOR 3-PHASE 200 AMP 30 SPACE LOAD CENTER W/ FIXED MAINS ** WEIGHT = 17 LBS
Mfg. item #: LCSQDQO33OL200G(30SLOT)
AMELCSQDQO33{01
FREE shipping when ordered with a machine from this manufacturer.20
$429.00

41
LCSQDQO342L225G(42SLOT)
INDOOR 3-PHASE 225 AMP 42 SPACE LOAD CENTER W/ FIXED MAINS ** WEIGHT = 32 LBS
Mfg. item #: LCSQDQO342L225G(42SLOT)
AMELCSQDQO34{01
FREE shipping when ordered with a machine from this manufacturer.20
$649.00

41
LCSQDQOC318L200G(18SLOT)
INDOOR 3-PHASE 200 AMP 18-POLE LOAD CENTER W/ FIXED MAINS ** WEIGHT = 26 LBS
Mfg. item #: LCSQDQOC318L200G(18SLOT)
AMELCSQDQOC3{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$269.00

41
MECHANICALSWITCHASSEMBLY(PUSHBUTTON)
REPLACEMENT ON/OFF BUTTON ** WEIGHT = 1 LB
Mfg. item #: MECHANICALSWITCHASSEMBLY(PUSHBUTTON)
AMEMECHANICA{00
FREE shipping when ordered with a machine from this manufacturer.20
$75.00

41
MULTI-LOADPHASEMONITORTIMER
PHASE MONITOR KIT - PROTECTS EQUIPMENT FROM 3 PHASE POWER INTERUPTION ** WEIGHT = 2 LBS
Mfg. item #: MULTI-LOADPHASEMONITORTIMER
AMEMULTI-LOA{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$349.00

41
PhaseMonitor
PHASE MONITOR KIT - PROTECTS EQUIPMENT FROM 3 PHASE POWER INTERUPTION ** WEIGHT = 1 LB
Mfg. item #: PhaseMonitor
AMEPHASEMONITOR
FREE shipping when ordered with a machine from this manufacturer.20
$99.00

41
PHASEMONITORWITHTIMER
PHASE MONITOR W/ TIMER KIT - AUTOMATICALLY STARTS PHASE CONVERTER WHEN NEEDED AND PROTECTS EQUIPMENT FROM 3 PHASE POWER INTERRUPTION ** WEIGHT = 2 LBS
Mfg. item #: PHASEMONITORWITHTIMER
AMEPHASEMONI{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$249.00

41
SDSA1175(240V1PH)
INPUT SURGE SURGE SUPRESSOR ** WEIGHT = 1 LB
Mfg. item #: SDSA1175(240V1PH)
AMESDSA1175({00
FREE shipping when ordered with a machine from this manufacturer.20
$60.00

41
SUBFMKIT05
FLOOR MOUNT KIT FOR 3 KVA UNTIS ** WEIGHT = 2 LBS
Mfg. item #: SUBFMKIT05
AMESUBFMKIT05
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$50.00

41
SUBFMKIT10,15
FLOOR MOUNT KIT FOR 10-15 KVA UNITS ** WEIGHT = 2 LBS
Mfg. item #: SUBFMKIT10,15
AMESUBFMKIT1{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$50.00

41
SUBFMKIT25,30
FLOOR MOUNT KIT FOR 25-30 KVA UNITS ** WEIGHT = 3 LBS
Mfg. item #: SUBFMKIT25,30
AMESUBFMKIT2{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$100.00

41
SUBFMKIT40,50,60,75
FLOOR MOUNT KIT FOR 40-75 KVA UNITS ** WEIGHT = 4 LBS
Mfg. item #: SUBFMKIT40,50,60,75
AMESUBFMKIT4{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$100.00

41
SUBFMKITA-D/X/U
FLOOR MOUNT KIT FOR A-D/X/UL20 UNITS ** WEIGHT = 2 LBS
Mfg. item #: SUBFMKITA-D/X/U
AMESUBFMKITA{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$50.00

41
SUBFMKITAR20
FLOOR MOUNT KIT FOR AR20 ** WEIGHT = 2 LBS
Mfg. item #: SUBFMKITAR20
AMESUBFMKITAR20
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$50.00

41
TFHAMY009CECB3L0U
9KVA 3PH 240-208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 49 LBS
Mfg. item #: TFHAMY009CECB3L0U
AMETFHAMY009{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$562.34

41
TFHAMY009QTCF3L0U
9KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 161 LBS
Mfg. item #: TFHAMY009QTCF3L0U
AMETFHAMY009{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,022.00

41
TFHAMY015CECB3L0U
15KVA 3PH 240-208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 67 LBS
Mfg. item #: TFHAMY015CECB3L0U
AMETFHAMY015{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$898.34

41
TFHAMY015QTCF3L0U
15KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 177 LBS
Mfg. item #: TFHAMY015QTCF3L0U
AMETFHAMY015{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,262.10

41   2
TFHAMY030CECF3L0U
30KVA 3PH 240-208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 115 LBS
Mfg. item #: TFHAMY030CECF3L0U
AMETFHAMY030{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,108.34

41
TFHAMY030QTCN3L0U
30KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 237 LBS
Mfg. item #: TFHAMY030QTCN3L0U
AMETFHAMY030{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,577.33

41   2
TFHAMY045CECF3L0U
45KVA 3PH 240-208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 130 LBS
Mfg. item #: TFHAMY045CECF3L0U
AMETFHAMY045{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,297.34

41
TFHAMY045QTCH3L0U
45KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 305 LBS
Mfg. item #: TFHAMY045QTCH3L0U
AMETFHAMY045{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$2,160.66

41
TFHAMY075CECN3L0U
75KVA 3PH 240-208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 150 LBS
Mfg. item #: TFHAMY075CECN3L0U
AMETFHAMY075{00
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$1,708.00

41
TFHAMY075QTCH3L
75KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 443 LBS
Mfg. item #: TFHAMY075QTCH3L
AMETFHAMY075{01
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$3,198.99

41
TFHAMY112QTCH3L0U
112KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 745 LBS
Mfg. item #: TFHAMY112QTCH3L0U
AMETFHAMY112{00
lease to own for as little as:$61 per month!
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$4,099.66

41
TFHAMY150QTCH3L0U
150KVA 3PH 600,480,400,240,208V 60HZ AUTOTRANSFORMERS ** WEIGHT = 965 LBS
Mfg. item #: TFHAMY150QTCH3L0U
AMETFHAMY150{00
lease to own for as little as:$78 per month!
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$5,182.33

41
ULLISTING
UL FEE FOR AI UNITS ** WEIGHT = 3 LBS
Mfg. item #: ULLISTING
AMEULLISTING
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$250.00

41
WIREDREMOTESTART
WIRED REMOTE SWITCH ** WEIGHT = 1 LB
Mfg. item #: WIREDREMOTESTART
AMEWIREDREMO{00
FREE shipping when ordered with a machine from this manufacturer.20
$75.00

41   4
WirelessRemote
WIRELESS REMOTE START SWITCH ** WEIGHT = 1 LB
Mfg. item #: WirelessRemote
AMEWIRELESSR{01
FREE shipping when ordered with a machine from this manufacturer.20
$299.00

41
WIRELESSREMOTEANTENNA
WIRELESS REMOTE ANTENNA ** WEIGHT = 2 LBS
Mfg. item #: WIRELESSREMOTEANTENNA
AMEWIRELESSR{03
FREE shipping when ordered with a machine from this manufacturer.20
NEW ITEM
$100.00

41
SWITCHWIRE-WRBLK202 **1 LB PER 12 IN OF
WIRED REMOTE SWITCH WIRE ** WEIGHT = 1 LB
Mfg. item #: SWITCHWIRE-WRBLK202 **1 LB PER 12 IN OF
AMESWITCHWIR{00
FREE shipping when ordered with a machine from this manufacturer.20
$2.00

41
Copyright © 2021 Smith-Hamilton, Inc
0.092 210201 07:20
