JET Arbor Presses

333650 AP5-M, 5-Ton Arbor Pressjet 2 year warranty logo

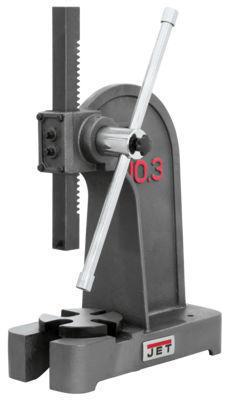

AP5-M, 5-Ton Arbor Press Shown



 The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty

  • ARBOR PRESSES
  • For all production and assembly applications
  • Precision cut steel rams and pinions for accurate operation
  • Tables and slotted table-plates are flat and parallel to provide accurate support
Detailed Specifications
Part Number 333605
Ram Travel (in.) 3-1/2
Arbor Press Height (in.) 10
Base Size (in.) 4 x 9-1/2
Brand Jet
Capacity over Table (in.)
Diameter of Work (in.) 6-5/8
Height 10.9 inch
Length 9.8 inch
Model Number AP-0
Net Weight 19 pound
Ram Bore (in.) 3/8
Size of Ram Face (in.) 3/4 x 7-7/8
Width 6.3 inch

 The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty

  • ARBOR PRESSES
  • For all production and assembly applications
  • Precision cut steel rams and pinions for accurate operation
  • Tables and slotted table-plates are flat and parallel to provide accurate support
Detailed Specifications
Part Number 333610
Ram Travel (in.) 4-1/4
Arbor Press Height (in.) 12
Base Size (in.) 5 x 10-3/4
Brand Jet
Capacity over Table (in.) 5
Diameter of Work (in.) 8
Height -
Length -
Model Number AP-1
Net Weight 26.5 pound
Ram Bore (in.) 3/8
Size of Ram Face (in.) 1 x 9-1/8
Width -

 The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty

  • ARBOR PRESSES
  • For all production and assembly applications
  • Precision cut steel rams and pinions for accurate operation
  • Tables and slotted table-plates are flat and parallel to provide accurate support
Detailed Specifications
Part Number 333620
Ram Travel (in.) 5-5/8
Arbor Press Height (in.) 16-1/4
Base Size (in.) 6-3/8 x 17
Brand Jet
Capacity over Table (in.) 7-3/8
Diameter of Work (in.) 11-3/8
Height 10 inch
Length 18 inch
Model Number AP-2
Net Weight 61 pound
Ram Bore (in.) 1/2
Size of Ram Face (in.) 1-1/4 x 13
Width 22 inch

 The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty

  • ARBOR PRESSES
  • For all production and assembly applications
  • Precision cut steel rams and pinions for accurate operation
  • Tables and slotted table-plates are flat and parallel to provide accurate support
Detailed Specifications
Part Number 333630
Ram Travel (in.) 7-1/2
Arbor Press Height (in.) 21-1/2
Base Size (in.) 8-1/2 x 18
Brand Jet
Capacity over Table (in.) 11-3/8
Diameter of Work (in.) 10-3/4
Height 12 inch
Length 20 inch
Model Number AP-3
Net Weight 97 pound
Ram Bore (in.) 1/2
Size of Ram Face (in.) 1-1/2 x 18
Width 24 inch

 The Jet AP-Series Arbor Presses Ton
have a 2 Year warranty

  • ARBOR PRESSES
  • For all production and assembly applications
  • Precision cut steel rams and pinions for accurate operation
  • Tables and slotted table-plates are flat and parallel to provide accurate support
Detailed Specifications
Part Number 333650
Ram Travel (in.) 9-1/8
Arbor Press Height (in.) 33-7/8
Base Size (in.) 9-7/8 x 26
Brand Jet
Capacity over Table (in.) 18
Diameter of Work (in.) 17
Height 35 inch
Length 29.5 inch
Model Number AP-5
Net Weight 305 pound
Ram Bore (in.) 1/2
Size of Ram Face (in.) 2 x 27-1/2
Width 17 inch
jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

JET Red Assurance

At JET not only do we warranty every product we develop, but we ensure that our after sale service and support is number 1. Our customer rated 9 out of 10 Customer Service, Technical Support, 40,000 plus unique parts in stock, and leading warranties guarantee we have the industrys most dependable service and support program.

If a JET tool needs service or repair, one of our 750 Authorized Service Centers located in all 50 states can assist you. In most cases Authorized Service Centers can perform a warranty repair, assist in obtaining replacement parts, perform routine maintenance, and perform a major repair on your JET Tool. For the name and locationof an Authorized Service Center in your area call 1 (800) 274-6848.

From here forward, look for our JET RED Assurance stamp. Whenyou see this logo you can rest assured that behind every product isdecades of Reliability, Expertise, and Dependability.

There are no listed accessories.
More Informationshow more
333605
AP0-M, 1/2-TON ARBOR PRESS
Mfg. item #: 333605
WMH333605
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$83.27

8
More Informationshow more
333610
AP1-M, 1-TON ARBOR PRESS
Mfg. item #: 333610
WMH333610
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$125.15

8
More Informationshow more
333620
AP2-M, 2-TON ARBOR PRESS
Mfg. item #: 333620
WMH333620
$11.95 Shipping on all JET, Powermatic, Wilton and Performax orders less that $199.95. Combine products to meet the minimum order requirement for Free Shipping.1019
$212.62

8
More Informationshow more
333630
AP3-M, 3-TON ARBOR PRESS
Mfg. item #: 333630
WMH333630
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on this and other JET, POWERMATIC, WILTON and PERFORMAX products ordered together.1020
$299.00

8
More Informationshow more
333650
AP5-M, 5-TON ARBOR PRESS
Mfg. item #: 333650
WMH333650
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on this and other JET, POWERMATIC, WILTON and PERFORMAX products ordered together.1020
$899.00

8
